1N1186A
40A, 200V standard rectifiers in DO-5 package
Manufacturer： ['microsemi', 'solid-state', 'iscsemi', 'genesic-semi', 'vishay']
series introduction
The 1N1186A Series is a comprehensive line of standard recovery rectifier diodes, engineered to deliver exceptional performance in a wide variety of electronic applications. These diodes are recognized for their robust design and high efficiency, making them ideal for power management solutions in both consumer and industrial electronics. With a maximum repetitive reverse voltage of 50V and a forward current rating of 35A, the 1N1186A Series is capable of handling significant power loads while ensuring reliable operation under demanding conditions.
A key feature of the 1N1186A Series is its low forward voltage drop, which results in minimal power loss during operation. This characteristic not only enhances the overall efficiency of the circuit but also helps to improve thermal performance, reducing the need for extensive heat sinking in many applications. The diodes are constructed using high-quality silicon material, providing excellent thermal stability and reliability over an extended lifespan. Additionally, their hermetic glass packaging allows for superior protection against environmental factors, ensuring consistent performance even in harsh operating conditions.
The design of the 1N1186A Series is particularly suited for a range of use cases, including power supplies, battery chargers, and DC-DC converters. Their fast recovery time makes them an excellent choice for applications requiring rapid switching capabilities, such as inverters and switching power supplies. Furthermore, these diodes are commonly used in automotive electronics, providing reliable rectification in alternators and power distribution systems.
With their versatility and high-performance characteristics, the 1N1186A Series diodes are ideal for industries such as consumer electronics, automotive, telecommunications, and renewable energy systems. Whether used in low-voltage applications or in more demanding environments, the 1N1186A Series stands out as a dependable solution for engineers seeking efficient rectification in their designs.
Images for reference

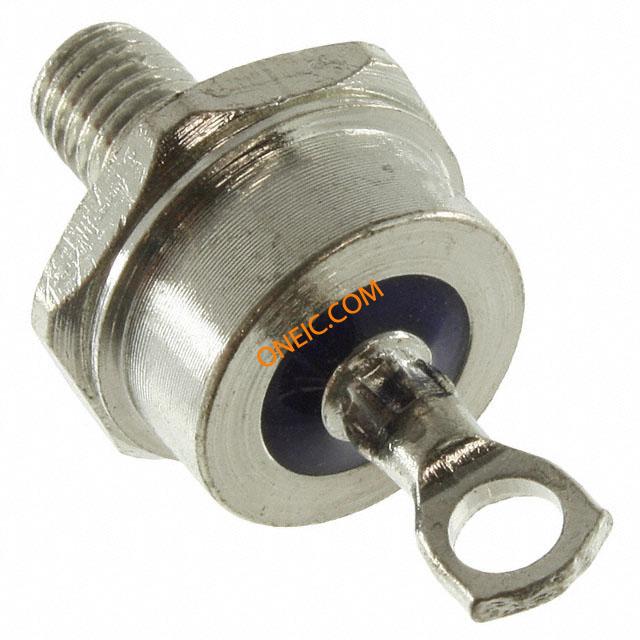

1N1186AR
Image Preview
Image Preview
