ZXLD1360
Compact SMD LED drivers with internal switch, 7-30V input, 1A output
Manufacturer： ['diodes', 'diodeszetex', 'diodes-zetex']
series introduction
# ZXLD1360 Product Series Introduction
## 1. Overview
The ZXLD1360 product series is a cutting - edge range of integrated circuits designed to meet the diverse and demanding requirements of modern lighting applications. These devices are engineered with advanced semiconductor technology, offering high - performance, energy - efficient, and reliable solutions for driving LEDs.
## 2. Key Features
### 2.1 High - Efficiency Operation
The ZXLD1360 series is known for its exceptional efficiency. It can convert a significant portion of the input electrical power into light output, minimizing power losses in the form of heat. This high efficiency not only reduces energy consumption but also extends the lifespan of the LEDs by keeping the operating temperature low. For example, in a typical lighting setup, it can achieve an efficiency of up to 90%, which is a remarkable figure in the industry.
### 2.2 Wide Input Voltage Range
These integrated circuits can operate over a wide input voltage range. This flexibility allows them to be used in various power supply scenarios, whether it is a low - voltage battery - powered system or a high - voltage mains - connected application. The ZXLD1360 can handle input voltages from as low as 2.7V up to 40V, making it suitable for a broad spectrum of lighting projects.
### 2.3 Adjustable Output Current
One of the standout features of the ZXLD1360 series is the ability to adjust the output current. This is crucial for controlling the brightness of the LEDs. By simply adjusting an external resistor, users can precisely set the output current within a specified range. This feature enables the creation of lighting systems with different brightness levels, from dim mood lighting to bright task lighting.
### 2.4 Dimming Capabilities
The ZXLD1360 supports both analog and PWM (Pulse - Width Modulation) dimming methods. Analog dimming provides a smooth and continuous change in brightness, while PWM dimming offers a more precise and flicker - free control, especially at low brightness levels. This dual - mode dimming functionality makes it ideal for applications where different dimming requirements need to be met, such as in residential, commercial, and automotive lighting.
### 2.5 Over - Temperature and Over - Current Protection
To ensure the reliability and safety of the lighting system, the ZXLD1360 series is equipped with over - temperature and over - current protection mechanisms. In case of excessive temperature or current, the device will automatically adjust its operation or shut down to prevent damage to the LEDs and the integrated circuit itself. This protection feature enhances the longevity of the lighting system and reduces the risk of failures.
## 3. Applications
### 3.1 Residential Lighting
In residential settings, the ZXLD1360 can be used in various lighting fixtures such as downlights, pendant lights, and wall sconces. Its dimming capabilities allow homeowners to create different lighting atmospheres for different activities, such as reading, watching TV, or entertaining guests. The high efficiency also helps in reducing electricity bills over time.
### 3.2 Commercial Lighting
For commercial buildings, the ZXLD1360 is well - suited for office lighting, retail lighting, and industrial lighting. In offices, it can provide uniform and adjustable lighting to improve employee productivity. In retail stores, the ability to control the brightness and color temperature can enhance the visual appeal of products. In industrial settings, the robust design and protection features ensure reliable operation in harsh environments.
### 3.3 Automotive Lighting
The automotive industry can also benefit from the ZXLD1360 series. It can be used in interior lighting, such as dashboard lights and dome lights, as well as in exterior lighting, such as daytime running lights and fog lights. The
Images for reference

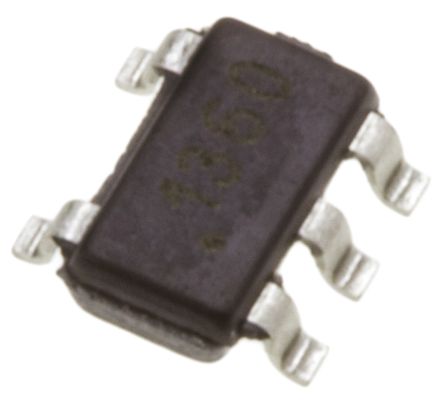

TSOT-23-5
