# XR2206: A Comprehensive Overview of a Versatile Function Generator IC
## Introduction
The XR2206 is an integrated circuit (IC) that has gained significant popularity in the field of electronics, particularly for applications requiring the generation of various waveforms. Manufactured by Exar Corporation (now part of Renesas Electronics), this function generator IC offers a wide range of features and capabilities, making it a valuable tool for engineers, hobbyists, and researchers alike.
## Key Features
### Waveform Generation
One of the primary features of the XR2206 is its ability to generate multiple waveforms. It can produce sine, square, triangle, sawtooth, and pulse waveforms with high precision and stability. This versatility makes it suitable for a variety of applications, including signal testing, audio synthesis, and frequency modulation.
### Wide Frequency Range
The XR2206 supports a wide frequency range, typically from a few hertz to several hundred kilohertz. This allows users to generate signals at different frequencies, depending on their specific requirements. The frequency can be easily adjusted using external resistors and capacitors, providing flexibility in waveform generation.
### Adjustable Duty Cycle
In addition to generating different waveforms, the XR2206 also allows users to adjust the duty cycle of the output signals. The duty cycle refers to the ratio of the time the signal is high to the total period of the waveform. By adjusting the duty cycle, users can create signals with different pulse widths, which is useful in applications such as pulse-width modulation (PWM) and digital communication.
### Low Distortion
The XR2206 is designed to produce low-distortion waveforms, ensuring high-quality signal output. This is achieved through the use of advanced circuit design techniques and high-performance components. The low distortion makes the XR2206 suitable for applications where accurate signal generation is critical, such as audio testing and measurement.
### Voltage-Controlled Oscillator (VCO) Function
The XR2206 includes a built-in voltage-controlled oscillator (VCO) function, which allows the output frequency to be controlled by an external voltage. This feature is useful in applications such as frequency modulation (FM) and phase-locked loops (PLLs), where the frequency of the output signal needs to be varied in response to an input voltage.
### Easy to Use
The XR2206 is designed to be easy to use, with a simple pin configuration and straightforward operation. It requires only a few external components, such as resistors and capacitors, to generate the desired waveforms. This makes it suitable for both beginners and experienced electronics enthusiasts.
## Applications
### Signal Testing and Measurement
The XR2206 is commonly used in signal testing and measurement applications, where it is used to generate test signals for various electronic devices and circuits. For example, it can be used to test the frequency response of an amplifier, the phase shift of a filter, or the modulation characteristics of a communication system.
### Audio Synthesis
In the field of audio synthesis, the XR2206 can be used to generate various waveforms, such as sine, square, and triangle waves, which are the building blocks of many musical sounds. By combining these waveforms and adjusting their parameters, such as frequency and amplitude, users can create a wide range of musical tones and effects.
### Frequency Modulation (FM)
The VCO function of the XR2206 makes it suitable for frequency modulation (FM) applications. In FM, the frequency of the carrier signal is varied in proportion to the amplitude of the modulating signal. The XR2206 can be used to generate the carrier signal and modulate it with an audio signal, resulting in an FM radio signal.
### Pulse-Width Modulation (PWM)
Pulse-width modulation (PWM) is a technique used to control the power
Images for reference

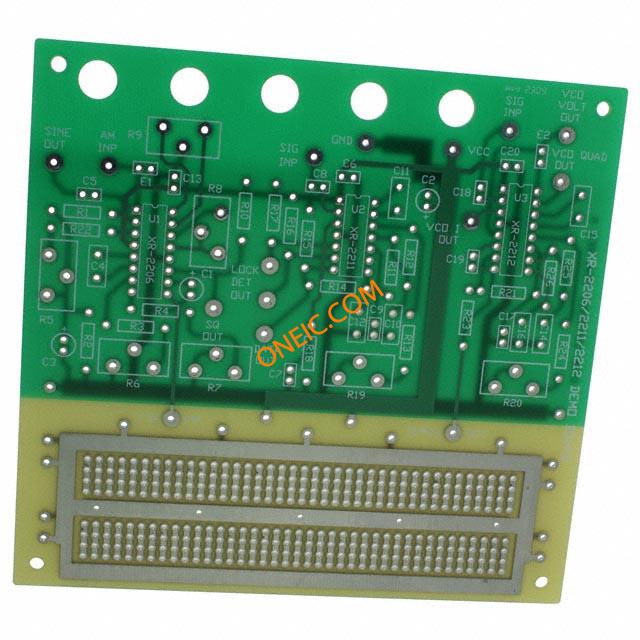

XR2206/11/12EB
