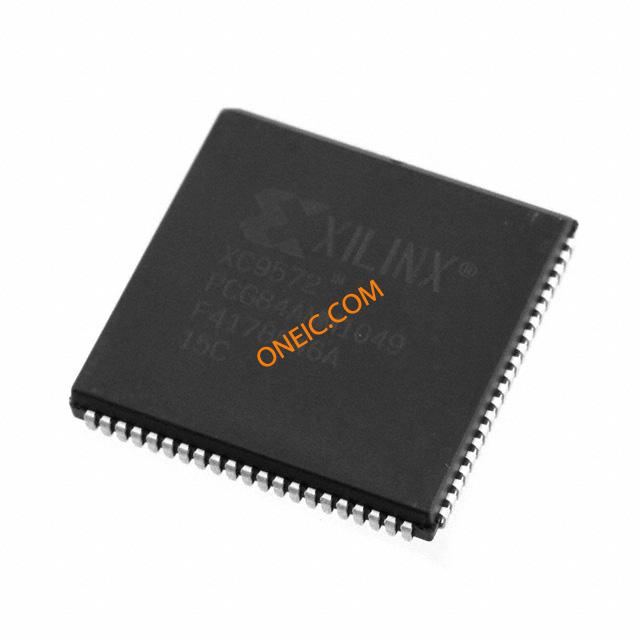

XC9572-15PCG84C

High-speed CMOS CPLD integrated circuits in 84-pin PLCC format

Manufacturer: xilinx

series introduction

# Introduction to the XC9572 - 15PCG84C Product Series

## 1. Overview
The XC9572 - 15PCG84C belongs to the Xilinx XC9500 family of Complex Programmable Logic Devices (CPLDs). These devices are designed to offer high - performance, flexible, and cost - effective solutions for a wide range of digital logic applications. The XC9572 - 15PCG84C, in particular, combines a good balance of logic capacity, speed, and package options to meet the diverse needs of modern electronic systems.

## 2. Key Features

### Logic Capacity
- The "72" in the XC9572 - 15PCG84C indicates its logic capacity. It has 72 macrocells, which are the basic building blocks for implementing combinational and sequential logic functions. These macrocells can be configured to perform a variety of tasks, such as implementing state machines, decoders, and arithmetic circuits. With 72 macrocells, the device can handle moderately complex logic designs, making it suitable for applications like industrial control systems, consumer electronics, and communication interfaces.

### Speed Grade
- The "15" in the part number represents the speed grade of the device. A lower speed grade number generally indicates a faster device. The XC9572 - 15PCG84C is capable of operating at relatively high frequencies, with a propagation delay that allows for quick signal processing. This makes it suitable for applications where real - time performance is crucial, such as high - speed data acquisition systems and clock management circuits.

### Package Type
- The "PCG84" refers to the package type. It is a Plastic Column Grid Array (PCG) package with 84 pins. This package offers several advantages. Firstly, it provides a relatively large number of input/output (I/O) pins, allowing for easy connection to external components. The PCG package also offers good thermal performance, which helps in dissipating heat generated during device operation. This is important for maintaining the reliability and stability of the device, especially in high - power or high - temperature environments.

### Configuration
- The XC9572 - 15PCG84C is a reprogrammable device. It can be configured using industry - standard programming tools and languages, such as Xilinx's own development software. This reprogrammability allows designers to make changes to the logic design even after the device has been installed on a printed circuit board (PCB). It provides flexibility during the development phase and also enables field upgrades, which can extend the lifespan of the product.

## 3. Electrical Characteristics

### Power Supply
- The device typically operates on a single power supply voltage, which is usually in the range of 3.3V. This simplifies the power supply design of the overall system. Additionally, the XC9572 - 15PCG84C has low power consumption characteristics, especially in standby or idle modes. This makes it suitable for battery - powered applications where power efficiency is a critical factor.

### I/O Voltage Levels
- The I/O pins of the XC9572 - 15PCG84C support a variety of voltage levels, including 3.3V and 5V tolerant I/Os. This allows for easy interfacing with different types of external components, such as microcontrollers, sensors, and memory devices. The 5V tolerance feature is particularly useful when interfacing with legacy components that operate at 5V.

## 4. Applications

### Industrial Control
- In industrial control systems, the XC9572 - 15PCG84C can be used to implement control logic for motors, valves, and
