XC6VLX130T-1FFG1156I

High-performance FPGA chips for advanced electronic systems

Manufacturer: xilinx

series introduction

# Introduction to the XC6VLX130T - 1FFG1156I Product Series

## 1. Overview
The XC6VLX130T - 1FFG1156I belongs to the Xilinx Virtex - 6 family of Field - Programmable Gate Arrays (FPGAs). FPGAs are semiconductor devices that can be programmed after manufacturing, offering a high degree of flexibility and reconfigurability. This particular product series is designed to meet the demanding requirements of a wide range of applications, from high - performance computing to advanced communication systems.

## 2. Key Features

### 2.1 Logic Resources
- **High - Density Logic**: The XC6VLX130T - 1FFG1156I is equipped with a large number of logic cells. These logic cells can be configured to implement various digital circuits, such as adders, multipliers, and state machines. With a high logic density, it can handle complex algorithms and large - scale system designs.
- **Slice Architecture**: It uses a slice - based architecture. Each slice contains look - up tables (LUTs), flip - flops, and carry logic. The LUTs can be used to implement combinational logic functions, while the flip - flops are used for sequential logic. This architecture allows for efficient implementation of both simple and complex digital circuits.

### 2.2 Memory Resources
- **Block RAM**: The FPGA has a significant amount of block RAM. Block RAMs are large, on - chip memory blocks that can be used for data storage, buffering, and implementing memory - intensive functions such as FIR filters and video frame buffers. The block RAMs can be configured in different sizes and modes to suit the specific requirements of the application.
- **Distributed RAM**: In addition to block RAM, it also has distributed RAM. Distributed RAM is implemented using the LUTs in the slices and is useful for small - scale memory requirements, such as storing constants and small data arrays.

### 2.3 DSP Resources
- **DSP Slices**: The XC6VLX130T - 1FFG1156I is rich in Digital Signal Processing (DSP) slices. These slices are optimized for performing high - speed arithmetic operations, such as multiplication and accumulation. They are essential for applications that require real - time signal processing, such as wireless communication, audio processing, and image processing.
- **High - Speed DSP Operations**: The DSP slices can operate at high clock frequencies, enabling the implementation of complex DSP algorithms with low latency. They support a variety of data formats, including fixed - point and floating - point, providing flexibility for different types of signal processing applications.

### 2.4 I/O Resources
- **Multiple I/O Standards**: It supports a wide range of I/O standards, including LVCMOS, LVDS, and SSTL. This allows the FPGA to interface with different types of external devices, such as microcontrollers, memory chips, and high - speed serial transceivers.
- **High - Speed Serial Transceivers**: The product series includes high - speed serial transceivers that can operate at data rates of up to several gigabits per second. These transceivers are useful for applications that require high - speed data communication, such as Ethernet, PCI Express, and Serial ATA.

### 2.5 Power Management
- **Low - Power Design**: Xilinx has implemented advanced power management techniques in the XC6VLX130T - 1FFG1156I. It offers multiple power - saving modes, such as sleep mode and dynamic power management. These features help to reduce the overall power consumption of the FPGA, making it suitable for battery - powered and energy - efficient applications

Images for reference

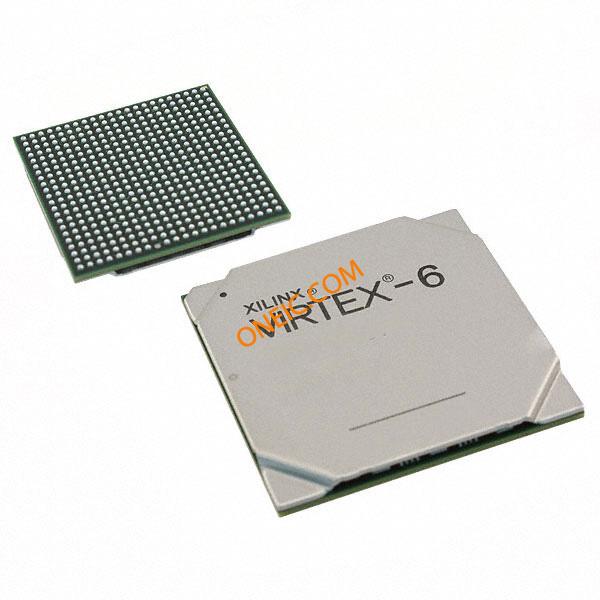

Virtex 6 LXT Series
