XC6VHX255T-2FFG1923C
High-capacity FPGA for advanced computing with 1923-pin FCBGA packaging
Manufacturer： xilinx
series introduction
# Introduction to the XC6VHX255T - 2FFG1923C Product Series
## 1. Overview
The XC6VHX255T - 2FFG1923C belongs to the Xilinx Virtex - 6 High - Performance FPGA (Field - Programmable Gate Array) product series. FPGAs are semiconductor devices that offer a high degree of flexibility, allowing users to configure the hardware functionality according to their specific application requirements. This particular model, with its unique combination of features and performance capabilities, is designed to meet the demands of a wide range of high - end applications.
## 2. Key Features
### 2.1 Logic Resources
- **High - Density Logic**: The XC6VHX255T - 2FFG1923C is equipped with a large number of configurable logic blocks (CLBs). These CLBs are the building blocks of the FPGA and can be used to implement various digital circuits, such as combinational logic, sequential logic, and state machines. The high density of logic resources enables the implementation of complex algorithms and systems on a single chip.
- **Distributed Memory**: In addition to the CLBs, the device also has distributed memory elements. These can be used to store small amounts of data close to the logic, reducing the need for external memory access and improving the overall system performance.
### 2.2 High - Speed Connectivity
- **Multi - Gigabit Transceivers**: One of the standout features of this FPGA is its multi - gigabit transceivers. These transceivers support high - speed serial communication protocols, such as PCI Express, Ethernet, and Serial ATA. With data rates reaching up to several gigabits per second, they enable the device to interface with high - speed external devices and networks, making it suitable for applications in data centers, telecommunications, and high - performance computing.
- **High - Bandwidth Interfaces**: The XC6VHX255T - 2FFG1923C also provides a variety of high - bandwidth interfaces, including high - speed I/O banks. These interfaces can be configured to support different voltage levels and signaling standards, allowing for seamless integration with a wide range of external components.
### 2.3 Power Efficiency
- **Advanced Power Management**: Xilinx has incorporated advanced power management techniques into the Virtex - 6 series, and the XC6VHX255T - 2FFG1923C is no exception. The device features dynamic power management, which allows it to adjust its power consumption based on the workload. This helps to reduce overall power consumption, making it suitable for applications where power efficiency is a critical concern, such as battery - powered devices and energy - conscious data centers.
### 2.4 Design Security
- **Encryption and Authentication**: To protect the intellectual property (IP) embedded in the FPGA design, the XC6VHX255T - 2FFG1923C offers encryption and authentication features. These features ensure that the configuration data stored in the device is secure and cannot be easily reverse - engineered or tampered with.
## 3. Package and Pinout
The "FFG1923" in the product name refers to the package type. The device comes in a fine - pitch ball grid array (FBGA) package with 1923 pins. This package provides a large number of I/O pins, which are essential for connecting the FPGA to external components. The pinout of the package is carefully designed to optimize signal integrity and power distribution, ensuring reliable operation of the device.
## 4. Performance Grade
The "- 2" in the product name indicates the performance grade of the FPGA. A lower performance grade number
Images for reference

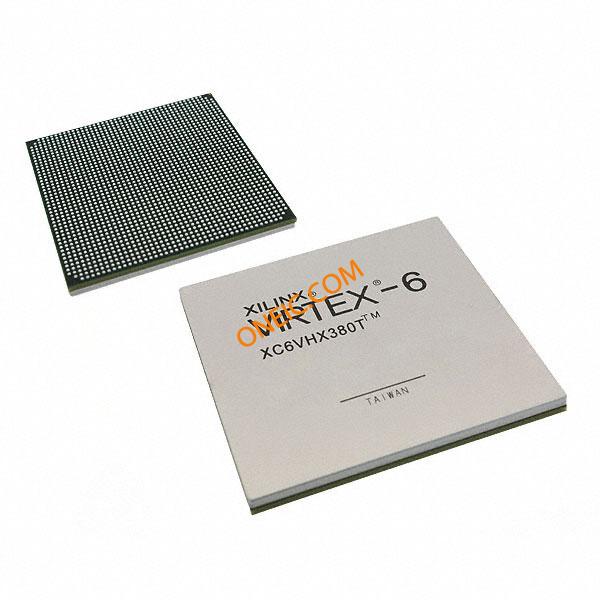

Virtex 6 HXT Series
