XC4VFX60-10FFG1152C
High-performance Virtex-4 FPGAs with 1152-pin FCBGA for advanced applications
Manufacturer： xilinx
series introduction
# Introduction to the XC4VFX60 - 10FFG1152C Product Series
## 1. Overview
The XC4VFX60 - 10FFG1152C belongs to the Xilinx Virtex - 4 FPGA (Field - Programmable Gate Array) product family. FPGAs are integrated circuits that can be programmed and reprogrammed by the user after manufacturing, offering a high degree of flexibility for a wide range of applications. This particular model, with its specific configuration, is designed to meet the demanding requirements of complex digital systems.
## 2. Key Features
### 2.1 Logic Resources
- **High - Density Logic**: The XC4VFX60 - 10FFG1152C is equipped with a large number of configurable logic blocks (CLBs). These CLBs are the building blocks of the FPGA and can be used to implement various digital logic functions such as combinational and sequential circuits. The high density of logic resources allows for the implementation of complex algorithms and large - scale digital systems on a single chip.
- **Distributed Memory**: In addition to the CLBs, the FPGA has distributed memory elements within the logic fabric. This distributed memory can be used for storing small amounts of data close to the logic that is processing it, reducing the data access time and improving the overall performance of the system.
### 2.2 Embedded Processors and Cores
- **PowerPC Cores**: It may include embedded PowerPC processors, which are high - performance RISC (Reduced Instruction Set Computing) processors. These processors can be used to run real - time operating systems, perform complex data processing tasks, and manage the overall system operation. The integration of the PowerPC cores on the FPGA eliminates the need for an external microprocessor in many applications, reducing the system cost and board space.
- **Dedicated IP Cores**: The XC4VFX60 - 10FFG1152C also comes with a variety of dedicated intellectual property (IP) cores. These cores are pre - designed and optimized for specific functions such as digital signal processing (DSP), high - speed serial communication, and memory interfaces. Using these IP cores can significantly reduce the design time and development effort.
### 2.3 High - Speed I/O
- **Multiple I/O Standards**: The FPGA supports a wide range of I/O standards, including LVDS (Low - Voltage Differential Signaling), SSTL (Stub Series Terminated Logic), and HSTL (High - Speed Transceiver Logic). This allows it to interface with different types of external devices such as high - speed ADCs (Analog - to - Digital Converters), DACs (Digital - to - Analog Converters), and memory modules.
- **High - Speed Serial Transceivers**: It is equipped with high - speed serial transceivers that can operate at data rates of up to several gigabits per second. These transceivers are suitable for applications such as high - speed data communication, optical networking, and high - performance computing.
### 2.4 Power Management
- **Low - Power Design**: The XC4VFX60 - 10FFG1152C is designed with power - saving features. It has multiple power - down modes that can be used to reduce the power consumption when the FPGA is not actively processing data. Additionally, the FPGA uses advanced process technology to minimize the static and dynamic power consumption, making it suitable for battery - powered and energy - efficient applications.
## 3. Package and Pinout
- **FFG1152 Package**: The "FFG1152" in the product name refers to the package type. This is a fine - pitch ball grid array

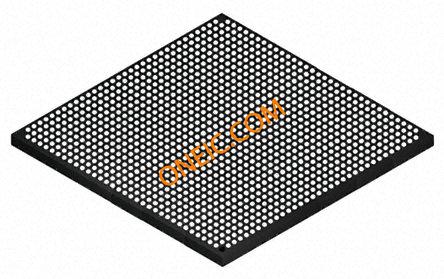

Images for reference
