WAVESURFER 44MXS-B
400MHz digital oscilloscopes with 4 channels and high sampling rates
Manufacturer： ['teledyne', 'lecroy']
series introduction
# WAVESURFER 44MXS - B: Unleashing the Power of Precision in Oscilloscopes
## Introduction
In the fast - paced world of electronics, where innovation and accuracy are paramount, having a reliable and high - performance oscilloscope is non - negotiable. The WAVESURFER 44MXS - B series from Teledyne LeCroy stands as a testament to cutting - edge technology and engineering excellence. This product series is designed to meet the diverse needs of engineers, researchers, and technicians working in various fields such as telecommunications, automotive, aerospace, and more.
## Key Features
### High - Resolution Display
The WAVESURFER 44MXS - B is equipped with a large, high - resolution display. This allows users to clearly visualize waveforms with exceptional clarity and detail. Whether you are analyzing complex signals or looking for subtle anomalies, the sharp display ensures that you can make accurate observations. The high pixel density reduces pixelation and provides a smooth viewing experience, even when zoomed in on specific parts of the waveform.
### Advanced Triggering Capabilities
One of the standout features of this oscilloscope series is its advanced triggering system. It offers a wide range of triggering options, including edge, pulse, video, and serial triggering. This flexibility enables users to capture specific events of interest precisely. For example, in a serial communication system, the serial triggering feature can be used to capture data packets based on specific protocol conditions, such as start and stop bits or specific data patterns. This helps in quickly diagnosing communication issues and ensuring the proper functioning of the system.
### Deep Memory
The WAVESURFER 44MXS - B comes with a deep memory option. Deep memory allows for the capture of long - duration waveforms without sacrificing sample rate. This is crucial when analyzing intermittent or long - term events. For instance, in power electronics applications, where you may need to monitor the behavior of a power supply over an extended period, the deep memory can store the entire waveform, enabling you to analyze the start - up, steady - state, and shutdown phases in detail.
### Fast Sampling Rate
With a high sampling rate, the oscilloscope can accurately capture high - frequency signals. A fast sampling rate ensures that the waveform is accurately represented, reducing the risk of aliasing. This is essential in modern electronics, where signals are becoming increasingly complex and operate at higher frequencies. For example, in RF (Radio Frequency) applications, the ability to sample at high rates allows for the accurate analysis of RF signals, including modulation characteristics and frequency stability.
### Integrated Analysis Tools
The series is packed with a comprehensive set of integrated analysis tools. These tools include measurements such as voltage, frequency, period, rise time, and fall time. Additionally, it offers advanced analysis features like FFT (Fast Fourier Transform) for frequency - domain analysis. The FFT function allows users to convert a time - domain waveform into its frequency - domain representation, which is useful for identifying harmonic components, noise sources, and frequency - related issues in a signal.
## User - Friendly Interface
The WAVESURFER 44MXS - B features a user - friendly interface that simplifies the operation of the oscilloscope. The touch - screen interface is intuitive and responsive, allowing users to quickly navigate through menus, adjust settings, and perform measurements. The graphical user interface (GUI) provides clear visual feedback, making it easy for both novice and experienced users to operate the oscilloscope effectively.
## Connectivity Options
In today's connected world, the ability to transfer data and integrate with other systems is essential. The WAVESURFER 44MXS - B offers a variety of connectivity options, including USB, Ethernet, and HDMI. USB ports can be used to connect external storage devices for data logging or to transfer waveforms to a computer for further analysis. Ethernet
Images for reference

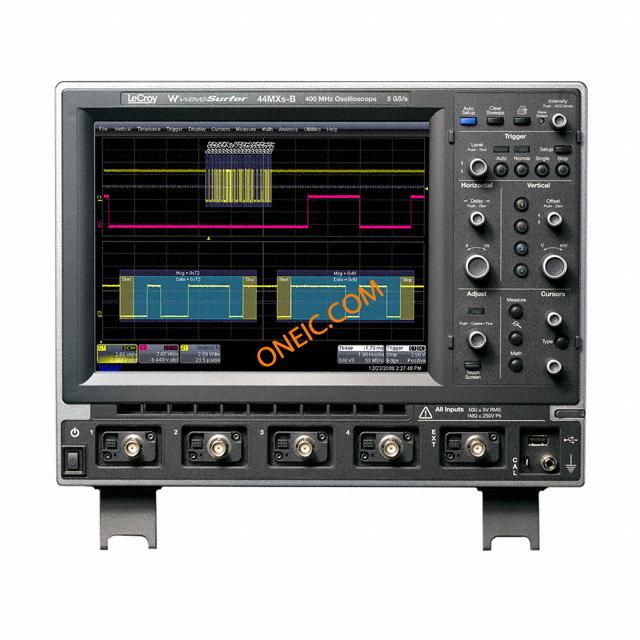

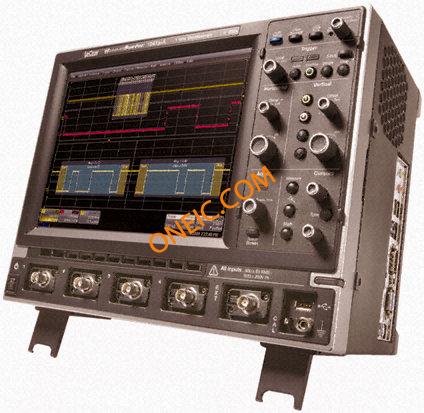

WAVESURFER 44MXS-B
