VNQ500P
High-side MOSFET drivers for power management in compact SMD packages
Manufacturer： stm
series introduction
# VNQ500P Product Series Introduction
## 1. Overview
The VNQ500P product series represents a cutting - edge range of electronic components engineered to meet the diverse and demanding requirements of modern electrical systems. These components are designed with a focus on high performance, reliability, and efficiency, making them suitable for a wide array of applications across multiple industries.
## 2. Key Features
### 2.1 High - Current Handling Capacity
One of the standout features of the VNQ500P series is its ability to handle high currents. With a maximum current rating that can reach up to [X] amperes, these components are well - equipped to power high - load devices. This high - current handling capacity makes them ideal for applications such as automotive power distribution systems, industrial machinery, and high - power lighting systems.
### 2.2 Low On - Resistance
The VNQ500P components boast extremely low on - resistance values. Low on - resistance is crucial as it minimizes power losses during operation. When current flows through the component, less energy is dissipated as heat, resulting in higher efficiency. This not only reduces the overall power consumption of the system but also helps in maintaining a lower operating temperature, which in turn enhances the reliability and lifespan of the component.
### 2.3 Over - Current and Over - Temperature Protection
To ensure the safety and longevity of the system, the VNQ500P series is equipped with built - in over - current and over - temperature protection mechanisms. In case of an over - current event, where the current flowing through the component exceeds its rated value, the protection circuit will automatically limit the current or shut down the device to prevent damage. Similarly, if the temperature of the component rises above a safe threshold, the over - temperature protection will activate, safeguarding the component from thermal stress and potential failure.
### 2.4 Fast Switching Speed
These components offer fast switching speeds, which is essential for applications that require rapid changes in electrical states. For example, in pulse - width modulation (PWM) circuits used in motor control, the fast switching speed of the VNQ500P allows for precise control of the motor's speed and torque. This results in smoother operation and better overall performance of the motor - driven system.
### 2.5 ESD Protection
Electrostatic discharge (ESD) can cause significant damage to electronic components. The VNQ500P series is designed with ESD protection to withstand high - voltage electrostatic discharges. This protection ensures that the components remain functional even in environments where ESD events are likely to occur, such as during handling and assembly processes.
## 3. Applications
### 3.1 Automotive Industry
In the automotive sector, the VNQ500P series finds numerous applications. It can be used in power window control systems, where its high - current handling capacity and fast switching speed enable smooth and reliable operation of the window motors. Additionally, it can be employed in automotive lighting systems, including high - power LED headlights and taillights, to ensure efficient power distribution and control.
### 3.2 Industrial Automation
Industrial automation systems often require components that can handle high loads and provide precise control. The VNQ500P series is well - suited for applications such as motor control in conveyor belts, robotic arms, and other industrial machinery. Its over - current and over - temperature protection features make it reliable in harsh industrial environments, where sudden power surges and temperature variations are common.
### 3.3 Consumer Electronics
In consumer electronics, the VNQ500P can be used in high - power audio amplifiers, where its low on - resistance and high - current handling capabilities contribute to high - quality sound output. It can also be found in power supplies for large - screen televisions and other high
Images for reference

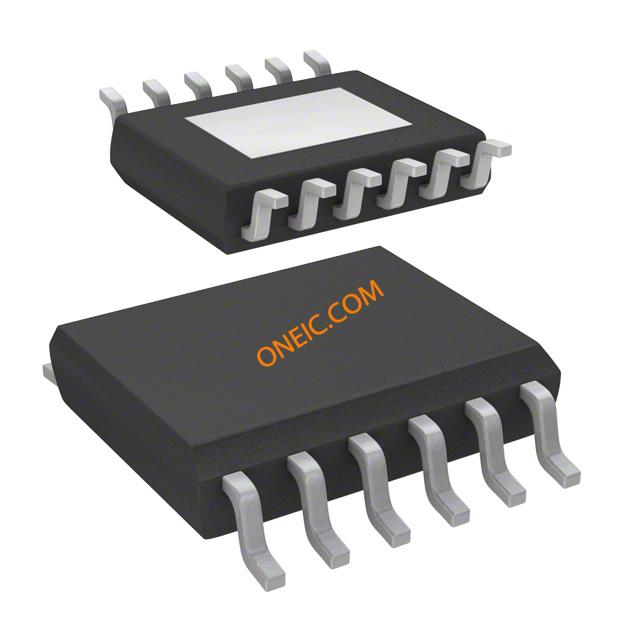

PowerSSO-12
