VJ0603A101JXACW1BC

Small 100pF ceramic capacitors for surface-mount electronic circuits

Manufacturer: ['vishay', 'vishay-bc-components']

series introduction

# Introduction to the VJ0603A101JXACW1BC Product Series

## Overview
The VJ0603A101JXACW1BC product series represents a cutting - edge offering in the field of electronic components. Engineered with precision and designed to meet the diverse needs of modern electronic applications, this series combines high - performance features with reliability and durability.

## Physical Characteristics
### Size and Dimensions
The "0603" in the product code indicates its physical size, following the standard surface - mount device (SMD) package naming convention. In metric units, a 0603 component typically has dimensions of approximately 1.6mm x 0.8mm. This compact size makes it ideal for use in densely populated printed circuit boards (PCBs), where space is often at a premium. It allows for the design of smaller and more portable electronic devices without sacrificing functionality.

### Appearance
The components in the VJ0603A101JXACW1BC series have a sleek and uniform appearance. They are typically rectangular in shape with well - defined edges and a smooth surface finish. This not only gives them an aesthetically pleasing look but also ensures consistent handling during the manufacturing process, reducing the risk of misalignment or damage during pick - and - place operations.

## Electrical Specifications
### Capacitance
The "101" in the product code represents the capacitance value of the component. Using the standard capacitor coding system, 101 means 10 followed by 1 zero, resulting in a capacitance of 100 pF (picofarads). This capacitance value is suitable for a wide range of applications, including high - frequency filtering, coupling, and decoupling in electronic circuits.

### Tolerance
The "J" in the code indicates the tolerance of the capacitance. A "J" tolerance means that the actual capacitance value of the component can vary by ±5% from the nominal value. This relatively tight tolerance ensures that the component performs consistently within a specified range, which is crucial for applications where precise capacitance values are required for proper circuit operation.

### Voltage Rating
Although not explicitly clear from the given code, the VJ0603A101JXACW1BC series is likely to have a specific voltage rating. This rating determines the maximum voltage that the component can safely withstand without experiencing breakdown or other electrical failures. A higher voltage rating allows the component to be used in circuits with higher operating voltages, providing greater flexibility in design.

### Temperature Coefficient
The components in this series are designed to have a stable performance over a wide range of temperatures. The temperature coefficient indicates how the capacitance value changes with temperature. A well - designed temperature coefficient ensures that the component maintains its electrical characteristics even in harsh environmental conditions, such as extreme heat or cold.

## Performance Advantages
### High - Frequency Performance
Due to its small size and optimized internal structure, the VJ0603A101JXACW1BC series offers excellent high - frequency performance. It can effectively filter out high - frequency noise and interference in electronic circuits, improving the overall signal quality. This makes it suitable for use in applications such as wireless communication devices, where high - frequency signals need to be accurately transmitted and received.

### Low Equivalent Series Resistance (ESR)
The components in this series typically have a low ESR value. A low ESR means that the component dissipates less power in the form of heat, resulting in higher efficiency and better performance. In power supply circuits, for example, a low - ESR capacitor can help to reduce voltage ripple and improve the stability of the power supply.

### Reliability
The VJ0603A101JXACW1BC series is manufactured using high - quality materials and advanced production

Images for reference

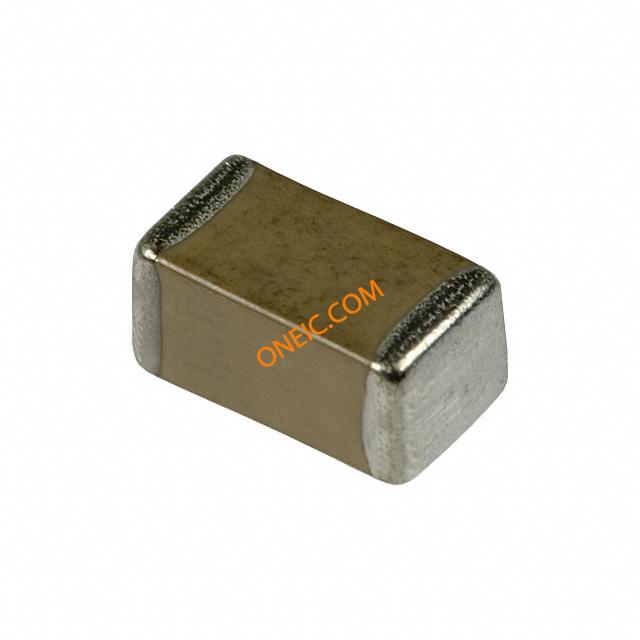

0603 BC Comp MLCC Caps
