# VCNL4000 Product Series Introduction
## 1. Overview
The VCNL4000 product series represents a cutting - edge line of integrated proximity and ambient light sensors developed by Vishay. These sensors are designed to offer high - performance, compact, and energy - efficient solutions for a wide range of applications. By integrating multiple functions into a single device, the VCNL4000 series simplifies the design process and reduces the overall component count in electronic systems.
## 2. Key Features
### 2.1 Proximity Sensing
- **High Sensitivity**: The VCNL4000 sensors are equipped with a highly sensitive proximity detection function. They can accurately detect the presence or absence of an object within a certain range. This is achieved through an infrared (IR) emitter and a photodiode receiver. The IR emitter emits infrared light, and when an object is in the vicinity, the light is reflected back to the photodiode. The sensor then measures the intensity of the reflected light to determine the proximity of the object.
- **Adjustable Sensing Range**: The sensing range of the proximity sensor can be adjusted according to the specific application requirements. This is done by controlling the output current of the IR emitter. Users can set different current levels, which in turn changes the distance at which the sensor can detect objects. For example, in a mobile device, a shorter sensing range may be sufficient to detect when a user brings the phone close to their ear during a call, while in a more industrial application, a longer range might be needed.
- **Ambient Light Rejection**: To ensure accurate proximity sensing even in different lighting conditions, the VCNL4000 series incorporates advanced ambient light rejection technology. This technology filters out the ambient light interference, allowing the sensor to focus only on the reflected infrared light. As a result, the sensor can provide reliable proximity detection in bright sunlight as well as in dimly lit environments.
### 2.2 Ambient Light Sensing
- **Wide Dynamic Range**: The ambient light sensor in the VCNL4000 series has a wide dynamic range, which means it can accurately measure light intensities from very low levels (such as in a dark room) to very high levels (such as direct sunlight). This wide range makes it suitable for a variety of applications, including display backlight adjustment in mobile devices, automatic lighting control in smart homes, and brightness adjustment in automotive dashboards.
- **Human - Eye Response Simulation**: The sensor is designed to mimic the response of the human eye to different wavelengths of light. This ensures that the measured light intensity corresponds closely to how the human eye perceives the brightness of the environment. As a result, the sensor can provide more accurate and natural - looking light adjustment in applications such as display brightness control.
- **Low Power Consumption**: The ambient light sensing function of the VCNL4000 series consumes very little power. This is crucial for battery - powered devices, as it helps to extend the battery life. The sensor can operate in a low - power mode when not actively measuring the light intensity, further reducing the overall power consumption.
### 2.3 Integrated Design
- **Compact Package**: The VCNL4000 sensors are housed in a compact package, which saves valuable board space in electronic devices. This is especially important in modern, miniaturized devices such as smartphones, wearables, and IoT sensors, where space is at a premium.
- **Single - Chip Solution**: By integrating both proximity and ambient light sensing functions into a single chip, the VCNL4000 series simplifies the design process. It eliminates the need for separate sensors for proximity and ambient light detection, reducing the complexity of the circuit layout and the number of external components. This not only saves cost but also improves the overall reliability of the
Images for reference

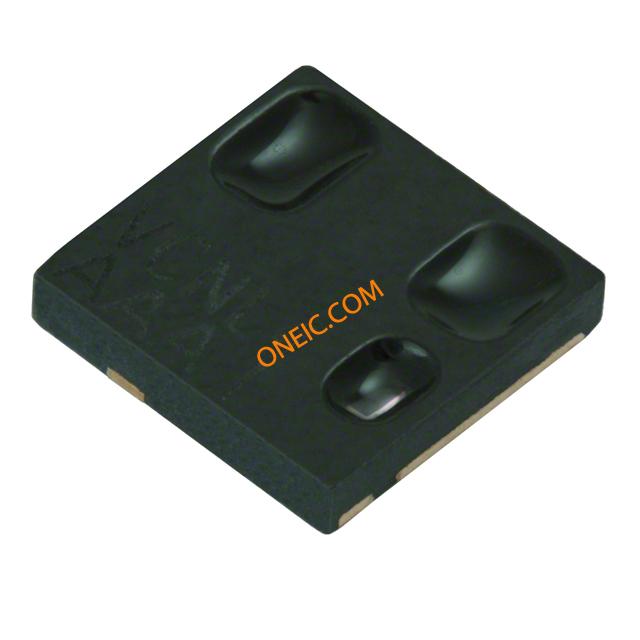

VCNL4000
