Compact multilayer ceramic capacitors for surface mount applications
Manufacturer: taiyo-yuden
# Introduction to the UMK316BJ225KD - T Product Series
## 1. Overview
The UMK316BJ225KD - T product series represents a cutting - edge range of electronic components that are designed to meet the diverse and demanding requirements of modern electronic circuits. These components are engineered with precision and advanced technology to offer high - performance, reliability, and stability in various applications.
## 2. Product Specifications
### 2.1 Capacitance
The UMK316BJ225KD - T series features a capacitance value of 2.2 μF (225 in the three - digit code, where the first two digits are significant figures and the third is the multiplier. So, 22×10⁵ pF = 2.2 μF). This capacitance value makes it suitable for a wide range of filtering, coupling, and energy storage applications in electronic circuits.
### 2.2 Voltage Rating
It has a rated voltage of 16 V. This voltage rating indicates the maximum voltage that the component can safely handle under normal operating conditions. It is crucial for ensuring the long - term reliability and proper functioning of the capacitor in circuits where the voltage levels are within this specified limit.
### 2.3 Tolerance
The tolerance of the UMK316BJ225KD - T is ±10% (indicated by the 'K' in the part number). This means that the actual capacitance value of the component can vary by up to 10% from the nominal value of 2.2 μF. A relatively tight tolerance like this is important in applications where precise capacitance values are required for accurate circuit performance.
### 2.4 Temperature Coefficient
The 'B' in the part number represents a specific temperature coefficient characteristic. This indicates how the capacitance of the component changes with temperature. Components with a well - defined temperature coefficient are essential in applications where the operating temperature can vary significantly, as it helps maintain the stability of the circuit's electrical characteristics over a wide temperature range.
### 2.5 Package Size
The '316' in the part number typically refers to the package size of the component. In the case of surface - mount capacitors, this size specification is important for PCB (Printed Circuit Board) design. The specific dimensions of the 316 package ensure proper placement and soldering on the PCB, allowing for efficient use of board space and compatibility with automated assembly processes.
## 3. Key Features
### 3.1 High - Quality Dielectric Material
The UMK316BJ225KD - T series uses a high - quality dielectric material. This dielectric material offers low dielectric loss, which means that less energy is dissipated as heat during the charging and discharging cycles of the capacitor. As a result, the component can operate more efficiently, reducing power consumption and improving the overall performance of the circuit.
### 3.2 Excellent Frequency Response
These capacitors exhibit an excellent frequency response. They can effectively handle a wide range of frequencies, making them suitable for use in both low - frequency and high - frequency applications. Whether it's filtering out low - frequency noise in power supply circuits or coupling high - frequency signals in communication circuits, the UMK316BJ225KD - T series can perform reliably.
### 3.3 High Reliability
The series is designed and manufactured to meet high - reliability standards. It undergoes rigorous testing during the production process to ensure that each component meets the specified electrical and mechanical requirements. This high level of reliability makes it suitable for use in critical applications where component failure can lead to significant system malfunctions, such as in automotive electronics, industrial control systems, and medical devices.
### 3.4 RoHS Compliance
The UMK316BJ225KD
xMK Series_1206_0.85

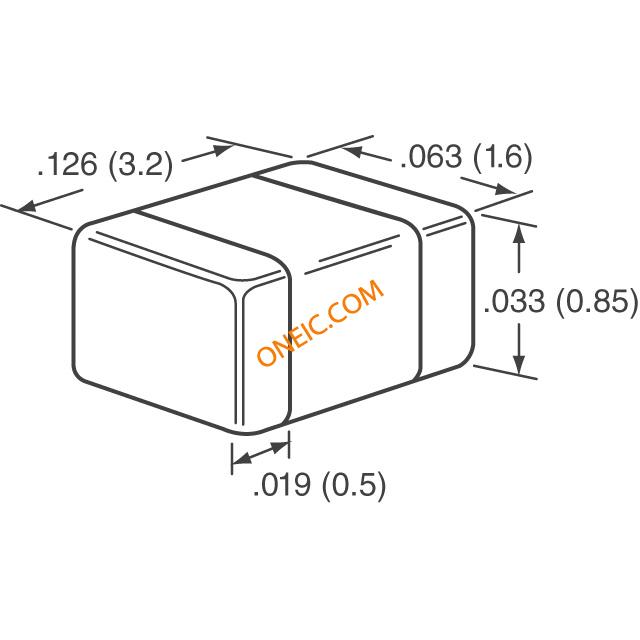

1206 (xMK316)
xMK Series_1206_0.85
