# Introduction to the U.FL - R - SMT - 1(01) Product Series

## 1. Overview
The U.FL - R - SMT - 1(01) product series represents a cutting - edge solution in the field of RF (Radio Frequency) connectors. These connectors are designed to meet the high - performance requirements of modern electronic devices, offering reliable and efficient signal transmission in a wide range of applications. With their surface - mount technology (SMT), they are well - suited for high - density circuit board designs, enabling seamless integration into various electronic systems.

## 2. Key Features

### 2.1 Compact Design
The U.FL - R - SMT - 1(01) connectors feature an extremely compact form factor. This is crucial in today's electronics industry, where space is at a premium. Their small size allows for more components to be placed on a single printed circuit board (PCB), facilitating the development of smaller and more portable devices such as smartphones, tablets, wearables, and IoT (Internet of Things) sensors.

### 2.2 High - Frequency Performance
These connectors are engineered to operate at high frequencies with minimal signal loss. They can support frequencies up to [X] GHz, making them ideal for applications that require high - speed data transfer and reliable RF communication. Whether it's Wi - Fi, Bluetooth, GPS, or other wireless communication standards, the U.FL - R - SMT - 1(01) series ensures stable and clear signal transmission.

### 2.3 Surface - Mount Technology
The use of SMT in the U.FL - R - SMT - 1(01) series offers several advantages. Firstly, it simplifies the manufacturing process. SMT connectors can be easily placed on the PCB using automated pick - and - place machines, which increases production efficiency and reduces labor costs. Secondly, SMT connectors provide better mechanical stability compared to through - hole connectors, as they are soldered directly onto the surface of the PCB, resulting in a more robust connection.

### 2.4 Low Insertion Loss
Insertion loss is a critical parameter in RF connectors, as it directly affects the strength and quality of the transmitted signal. The U.FL - R - SMT - 1(01) connectors are designed to have extremely low insertion loss, typically less than [X] dB over their operating frequency range. This ensures that the signal remains strong and undistorted as it passes through the connector, minimizing the need for additional signal amplification.

### 2.5 High Return Loss
Return loss measures the amount of signal that is reflected back from the connector. A high return loss indicates that most of the signal is being transmitted through the connector rather than being reflected. The U.FL - R - SMT - 1(01) series offers high return loss values, typically greater than [X] dB, which helps to improve the overall efficiency of the RF system and reduces interference.

## 3. Applications

### 3.1 Mobile Devices
In smartphones and tablets, the U.FL - R - SMT - 1(01) connectors are used to connect the antenna modules to the main PCB. Their compact size and high - frequency performance are essential for enabling multiple wireless communication standards such as Wi - Fi 6, 5G, and Bluetooth 5.0. They also help to reduce the overall size of the device while maintaining excellent signal quality.

### 3.2 IoT Devices
IoT sensors and gateways often require reliable RF connectivity in a small form factor. The U.FL - R - SMT - 1(01) connectors are well - suited for these applications, as they can be easily integrated into the PCB of IoT devices. They support various wireless protocols used in IoT, such as ZigBee, Lo

Images for reference

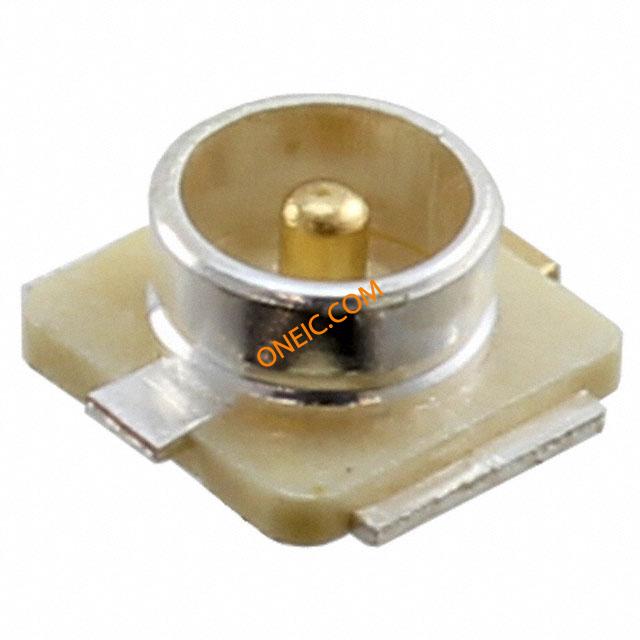

U.FL-R-SMT-1(01)
