TSV632AILT

General-purpose operational amplifiers in compact SOT-23 packages

Manufacturer: stm

series introduction

# TSV632AILT Product Series Introduction

## 1. Overview
The TSV632AILT product series represents a cutting - edge offering in the field of integrated circuits, specifically operational amplifiers. These devices are designed to meet the diverse and demanding requirements of modern electronic systems, providing high - performance signal processing capabilities in a compact and efficient package.

## 2. Key Features

### 2.1 Low Power Consumption
One of the standout features of the TSV632AILT series is its extremely low power consumption. In today's energy - conscious world, this is a crucial advantage for battery - powered devices such as portable medical equipment, handheld measurement tools, and wireless sensors. The low power design not only extends the battery life of these devices but also reduces heat generation, which can enhance the overall reliability and stability of the system.

### 2.2 High Precision
These operational amplifiers offer high precision in signal amplification and processing. With low input offset voltage and low input bias current, they can accurately amplify weak signals without introducing significant errors. This makes them ideal for applications where precise measurement and control are required, such as in industrial automation, test and measurement equipment, and automotive sensor interfaces.

### 2.3 Wide Bandwidth
The TSV632AILT series provides a wide bandwidth, enabling it to handle high - frequency signals effectively. This is essential for applications that involve fast - changing signals, such as audio processing, communication systems, and high - speed data acquisition. The wide bandwidth ensures that the amplifier can accurately reproduce the input signal across a broad range of frequencies, resulting in high - quality output.

### 2.4 Rail - to - Rail Input and Output
The rail - to - rail input and output capabilities of the TSV632AILT series allow the amplifier to operate over the entire supply voltage range. This means that it can handle input signals that are close to the power supply rails and produce output signals that can swing from the negative to the positive supply rail. This feature is particularly useful in applications where the available supply voltage is limited or where a large dynamic range of signals needs to be processed.

### 2.5 ESD Protection
The devices in the TSV632AILT series are equipped with built - in electrostatic discharge (ESD) protection. This protects the amplifier from damage caused by electrostatic discharges, which are common in many electronic environments. The ESD protection enhances the robustness of the device and reduces the risk of failure during handling and operation.

## 3. Package and Pin Configuration
The TSV632AILT is available in a small - outline integrated circuit (SOIC) package, which is a popular choice for many electronic applications due to its compact size and ease of mounting on printed circuit boards (PCBs). The pin configuration of the device is designed to be user - friendly, with clearly labeled pins for power supply, input, and output connections. This simplifies the circuit design process and reduces the chances of wiring errors.

## 4. Applications

### 4.1 Audio Systems
In audio systems, the TSV632AILT series can be used for pre - amplification, equalization, and audio signal processing. Its low noise and high - fidelity performance ensure that the audio signals are accurately reproduced, resulting in high - quality sound output. Whether it is in a home audio system, a professional audio mixer, or a car audio system, these amplifiers can enhance the audio experience.

### 4.2 Sensor Interfaces
For sensor interfaces, the high precision and low power consumption of the TSV632AILT series make it an excellent choice. It can be used to amplify and condition the weak signals generated by various sensors, such as temperature sensors, pressure sensors, and light sensors. The accurate signal processing ensures that the sensor data is reliable and can

Images for reference

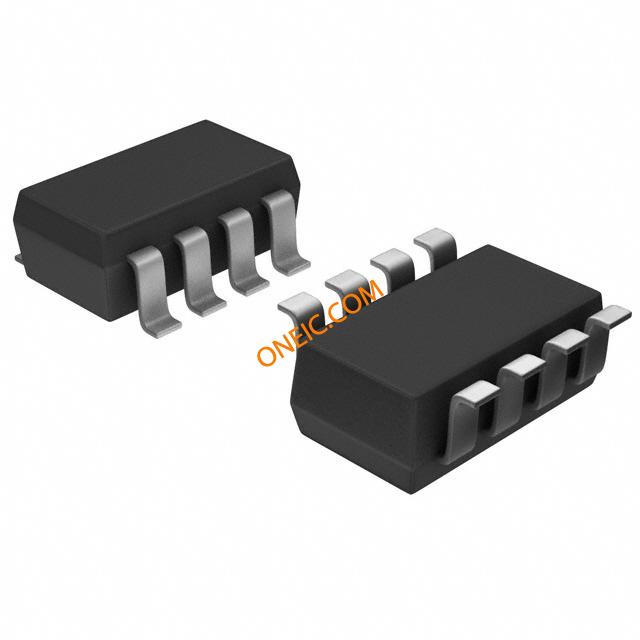

SOT-23-8 PKG
