# TSL1402R Product Series Introduction

## 1. Overview
The TSL1402R product series is a remarkable line of linear image sensors developed by TAOS (Texas Advanced Optoelectronic Solutions), now part of ams AG. These sensors are engineered to provide high - performance light sensing capabilities, making them suitable for a wide range of applications in industrial, consumer, and automotive sectors.

## 2. Key Features

### 2.1 High - Resolution Sensing
The TSL1402R features a linear array of 128 photodiodes. This high number of individual sensing elements allows for fine - grained detection of light patterns. Each photodiode can accurately measure the intensity of incident light, enabling the sensor to capture detailed images or light profiles. For example, in barcode scanning applications, the high resolution helps in accurately reading barcodes with small widths and closely spaced bars.

### 2.2 Fast Response Time
These sensors are designed to have a fast response to changes in light intensity. The integration time can be adjusted, and the sensor can quickly convert the light signals into electrical signals. This fast response is crucial in applications where real - time data acquisition is required, such as in high - speed motion detection or in-line inspection systems on production lines.

### 2.3 Low Noise Performance
The TSL1402R series is engineered to minimize electrical noise. Low noise is essential for accurate light measurement, especially in applications where the light signals are weak. By reducing noise, the sensor can provide more reliable and precise data, which is beneficial in scientific research, medical imaging, and other applications that demand high - quality light sensing.

### 2.4 Wide Dynamic Range
The sensors have a wide dynamic range, which means they can accurately measure both very low and very high light intensities. This is useful in applications where the lighting conditions can vary significantly, such as in outdoor environments or in industrial settings where different levels of illumination are present. For instance, in a machine vision system used for inspecting products under different lighting setups, the wide dynamic range ensures consistent performance.

## 3. Technical Specifications

### 3.1 Electrical Characteristics
- **Supply Voltage**: The TSL1402R typically operates within a supply voltage range of 2.7V to 5.5V. This wide voltage range allows for flexibility in power supply design and makes it compatible with a variety of electronic systems.
- **Output Signal**: It provides an analog output voltage that is proportional to the light intensity detected by the photodiodes. The output can be easily interfaced with analog - to - digital converters (ADCs) for further processing in digital systems.

### 3.2 Optical Characteristics
- **Spectral Response**: The sensors have a spectral response that is optimized for the visible light range, typically from approximately 400nm to 700nm. This makes them well - suited for applications that involve visible light detection, such as color sensing and general light measurement in indoor and outdoor environments.
- **Photosensitivity**: The photodiodes in the TSL1402R have high photosensitivity, which means they can detect even small amounts of light. This high sensitivity is beneficial in low - light applications, such as night - vision systems or in detecting faint light sources.

## 4. Applications

### 4.1 Industrial Automation
In industrial automation, the TSL1402R can be used for tasks such as edge detection, object alignment, and surface inspection. For example, in a manufacturing process where parts need to be precisely aligned, the sensor can detect the edges of the parts and provide feedback to the control system for accurate positioning. In surface inspection, it can detect defects or irregularities on the surface of products by analyzing the light reflection patterns

Images for reference

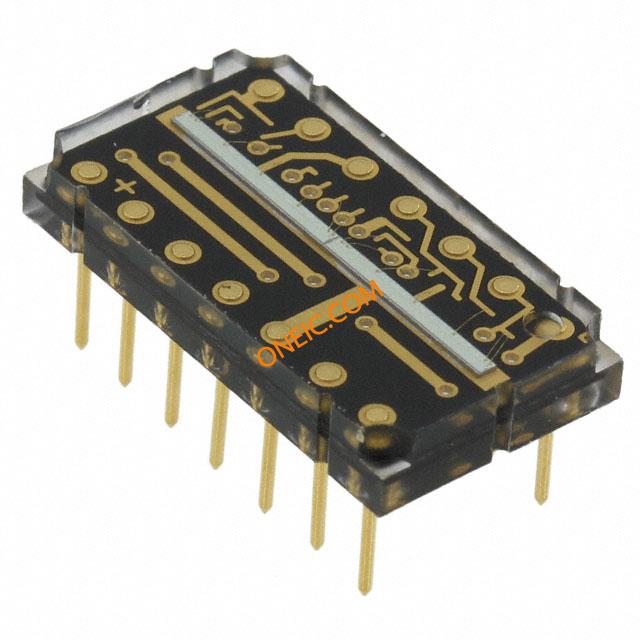

TSL1402R
