TPS23754EVM-383
Evaluation module for TPS23754 power management IC
Manufacturer： ti
series introduction
# TPS23754EVM - 383 Product Series Introduction
## 1. Overview
The TPS23754EVM - 383 is an evaluation module (EVM) that plays a crucial role in the field of power management, specifically in Power over Ethernet (PoE) applications. This product series is designed to provide engineers, developers, and enthusiasts with a comprehensive and efficient platform to evaluate the performance and capabilities of the TPS23754 PoE controller.
## 2. Key Features
### 2.1 PoE Compatibility
- **IEEE 802.3af/at Compliance**: The TPS23754EVM - 383 is fully compliant with the IEEE 802.3af and 802.3at standards. These standards define the requirements for PoE systems, ensuring interoperability between different PoE - enabled devices. This compatibility allows the EVM to be used in a wide range of network environments, enabling seamless integration with existing Ethernet infrastructure.
- **Multiple Power Classes**: It supports multiple power classes, from Class 0 to Class 4. This flexibility enables the EVM to power various types of devices, such as IP cameras, wireless access points, and VoIP phones, which have different power requirements.
### 2.2 High - Performance Power Management
- **Efficient Power Conversion**: The EVM incorporates advanced power conversion technology to ensure high efficiency. This reduces power losses during the conversion process, resulting in lower energy consumption and less heat generation. As a result, the system can operate more reliably and cost - effectively over long periods.
- **Power Monitoring and Protection**: It is equipped with built - in power monitoring and protection features. The power monitoring function allows users to accurately measure the power consumption of the connected device, which is useful for system optimization and energy management. The protection features, such as over - current protection (OCP), over - voltage protection (OVP), and under - voltage lockout (UVLO), safeguard the EVM and the connected device from potential damage caused by abnormal power conditions.
### 2.3 User - Friendly Design
- **Easy - to - Use Interface**: The TPS23754EVM - 383 features a user - friendly interface that simplifies the evaluation process. It provides clear and accessible test points, making it easy for users to connect external measurement equipment and perform various tests.
- **Comprehensive Documentation**: Along with the hardware, the product series comes with comprehensive documentation, including user manuals, datasheets, and application notes. These resources provide detailed information about the EVM's operation, configuration, and troubleshooting, enabling users to quickly get up to speed and start their evaluations.
## 3. Technical Specifications
### 3.1 Electrical Specifications
- **Input Voltage Range**: The EVM typically supports an input voltage range of 36V to 57V, which is in line with the standard PoE power supply voltage range. This wide input voltage range allows it to be used with different types of PoE power sources.
- **Output Power**: It can deliver up to a certain amount of output power, depending on the power class selected. For example, in Class 4, it can provide a relatively high - power output to support power - hungry devices.
- **Power Efficiency**: The power efficiency of the EVM is typically high, often reaching over 90% under normal operating conditions. This high efficiency helps to minimize power waste and improve the overall energy performance of the system.
### 3.2 Physical Specifications
- **Size and Form Factor**: The TPS23754EVM - 383 has a compact size and a standard form factor, which makes it easy to integrate into different test setups and
Images for reference
.JPG)

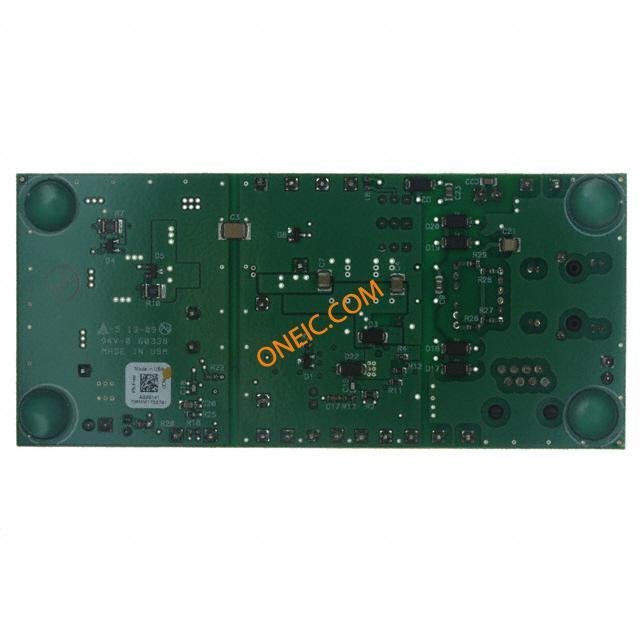

TPS23754EVM-383
