TPA3106D1VFP
40W mono Class-D audio power amplifiers in 32-pin HLQFP packages
Manufacturer： ti
series introduction
# TPA3106D1VFP Product Series Introduction
## 1. Overview
The TPA3106D1VFP is a highly efficient and versatile audio amplifier product series developed by Texas Instruments. This series is designed to meet the diverse audio amplification needs in various applications, offering a combination of high - performance features, compact design, and ease of use.
## 2. Key Features
### 2.1 High - Efficiency Operation
- The TPA3106D1VFP utilizes a Class D amplifier architecture. Class D amplifiers are known for their high efficiency, which can reach up to 90% or more. This high efficiency means less power is wasted as heat compared to traditional Class AB amplifiers. As a result, it can operate for longer periods without overheating, and it also reduces the power consumption of the overall system, making it an ideal choice for battery - powered devices such as portable speakers and wireless audio systems.
### 2.2 Wide Power Supply Range
- It supports a wide power supply voltage range. This flexibility allows it to be used in different power environments, from low - voltage battery - powered setups to higher - voltage AC - powered systems. For example, it can operate with a power supply voltage as low as 4.5V, which is suitable for small battery - operated devices, and can handle up to 26V, enabling its use in more powerful audio systems.
### 2.3 High Output Power
- The TPA3106D1VFP is capable of delivering a significant amount of output power. It can drive speakers with high power levels, making it suitable for applications where high - volume audio is required. For instance, it can provide up to 20W per channel into an 8 - ohm load, which is sufficient to fill a medium - sized room with clear and loud audio.
### 2.4 Low Distortion
- With advanced circuit design and signal processing techniques, the TPA3106D1VFP offers low total harmonic distortion (THD). Low THD ensures that the audio signal is reproduced accurately, without introducing unwanted noise or distortion. This results in high - quality audio output, making it suitable for applications where audio fidelity is crucial, such as home audio systems and professional audio monitors.
### 2.5 Integrated Protection Features
- The product series is equipped with a comprehensive set of protection features. Over - temperature protection prevents the amplifier from overheating, which can damage the components. Short - circuit protection safeguards the amplifier and the connected speakers in case of a short - circuit in the speaker wires. Under - voltage lockout (UVLO) ensures that the amplifier operates within a safe voltage range, protecting it from damage due to low - voltage conditions.
## 3. Applications
### 3.1 Portable Audio Devices
- Due to its high efficiency and low power consumption, the TPA3106D1VFP is an excellent choice for portable audio devices such as Bluetooth speakers, MP3 player amplifiers, and portable gaming consoles with audio output. Its compact size also allows for easy integration into the limited space of these devices.
### 3.2 Home Audio Systems
- In home audio setups, the high output power and low distortion of the TPA3106D1VFP make it suitable for use in bookshelf speakers, soundbars, and small home theater systems. It can provide clear and powerful audio, enhancing the overall listening experience.
### 3.3 Automotive Audio
- The wide power supply range and robust protection features make the TPA3106D1VFP suitable for automotive audio applications. It can be used in car audio systems to drive door speakers, rear speakers, or subwoofers, providing high - quality audio in the challenging automotive environment.
Images for reference

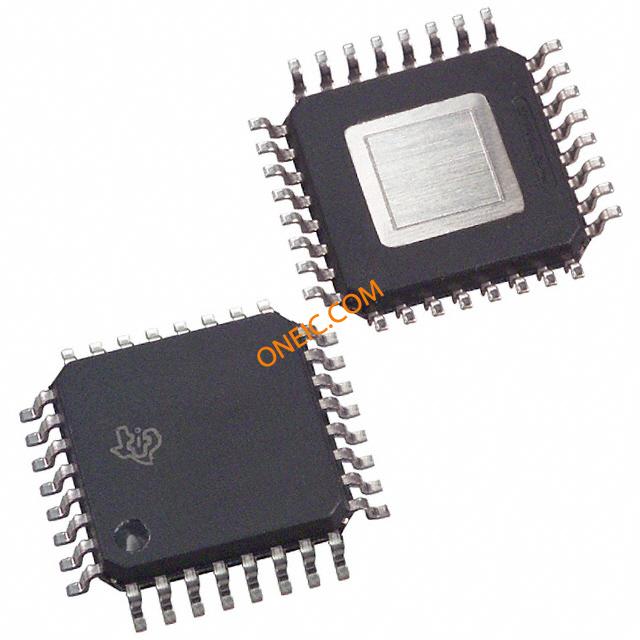

32-HLQFP Pkg
