TOP264VG
Compact AC/DC converters for efficient power supply applications
Manufacturer： power-integrations
series introduction
# Introduction to the TOP264VG Product Series
## 1. Overview
The TOP264VG product series belongs to a class of highly integrated power conversion devices that are designed to simplify the design process of power supplies while offering high - performance and reliable operation. These devices are widely used in a variety of applications, from consumer electronics to industrial equipment, due to their excellent features and capabilities.
## 2. Key Features
### 2.1 High Integration
The TOP264VG series integrates a power MOSFET, a PWM (Pulse Width Modulation) controller, and other essential control and protection functions on a single chip. This high level of integration significantly reduces the number of external components required in a power supply design. For example, compared to traditional discrete - component power supply designs, the use of TOP264VG can cut down the component count by up to 50%, which not only saves board space but also reduces the overall cost of the power supply.
### 2.2 Wide Input Voltage Range
These devices can operate over a wide input voltage range, typically from 85VAC to 265VAC. This makes them suitable for use in different regions around the world, where the mains voltage can vary. Whether it is the 110VAC commonly used in North America or the 230VAC in Europe, the TOP264VG series can handle the input voltage without the need for complex voltage - conversion circuitry.
### 2.3 High Efficiency
The TOP264VG series is engineered to achieve high efficiency levels. Through advanced PWM control algorithms and low - loss power MOSFET technology, it can reach efficiency levels of up to 90% or more in certain applications. High efficiency not only reduces power consumption but also helps in minimizing heat generation, which is crucial for the long - term reliability of the power supply and the overall system.
### 2.4 Comprehensive Protection Features
- **Over - Voltage Protection (OVP)**: The TOP264VG is equipped with OVP to protect the power supply and the connected load from excessive voltage. When the output voltage exceeds a predefined threshold, the device will automatically shut down or adjust its operation to prevent damage.
- **Over - Current Protection (OCP)**: In case of a short - circuit or an over - current condition in the load, the OCP feature will limit the current flowing through the device. This protects the power MOSFET and other components from overheating and potential failure.
- **Over - Temperature Protection (OTP)**: The device monitors its own temperature, and if it reaches a critical level, the OTP mechanism will reduce the power output or shut down the device to prevent thermal damage.
## 3. Applications
### 3.1 Consumer Electronics
- **Smartphones and Tablets**: The TOP264VG series can be used in the chargers of smartphones and tablets. Its high efficiency and small form factor make it an ideal choice for these portable devices. The wide input voltage range also allows for universal chargers that can be used in different countries.
- **LED Lighting**: In LED lighting applications, the TOP264VG can be used to convert the mains voltage to the appropriate DC voltage for the LEDs. Its high efficiency helps in reducing energy consumption, and the protection features ensure the long - term reliability of the LED lighting system.
### 3.2 Industrial Equipment
- **Industrial Automation**: Many industrial automation systems require stable and reliable power supplies. The TOP264VG series can be used in powering sensors, actuators, and control modules. Its comprehensive protection features make it suitable for the harsh industrial environment, where electrical faults and voltage fluctuations are common.
- **Telecom Equipment**: In the telecom industry, power supplies need to be highly efficient and reliable. The TOP2
Images for reference

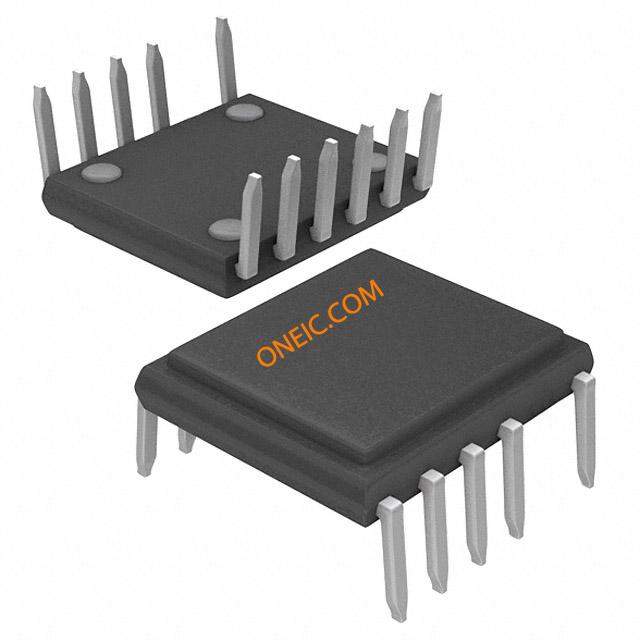

TOPSwitch-JX-12-eDIP
