TNPW120624K3BEEN
Precision thin film resistors for surface-mount electronic circuits
Manufacturer： vishay
series introduction
# Introduction to the TNPW120624K3BEEN Product Series
## Overview
The TNPW120624K3BEEN product series represents a cutting - edge range of electronic components that are designed to meet the diverse and demanding requirements of modern electronic circuits. These components are engineered with precision and adhere to the highest industry standards, making them a reliable choice for a wide array of applications.
## Physical Characteristics
### Package Size
The "1206" in the product code indicates the package size of the components in the TNPW120624K3BEEN series. In the imperial measurement system, a 1206 package has dimensions of approximately 0.12 inches (3.2 mm) in length and 0.06 inches (1.6 mm) in width. This standard size is widely used in the electronics industry, ensuring compatibility with a variety of printed circuit boards (PCBs) and automated assembly processes.
### Construction
The components are built with high - quality materials to ensure durability and stability. The outer casing provides protection against environmental factors such as moisture, dust, and mechanical stress. Inside, the internal structure is carefully designed to optimize electrical performance and minimize signal interference.
## Electrical Specifications
### Resistance Value
The "24K3" in the product code represents the resistance value of the components. In this case, the resistance is 24.3 kΩ (kilo - ohms). This specific resistance value is carefully calibrated during the manufacturing process to ensure high accuracy. The tolerance of the resistance value is typically within a narrow range, which is crucial for applications where precise electrical characteristics are required.
### Tolerance
The components in the TNPW120624K3BEEN series usually have a tight tolerance. For example, a common tolerance level could be ±1%. This means that the actual resistance value of the component will deviate from the nominal 24.3 kΩ value by no more than 1%. Such a low tolerance ensures consistent performance across multiple components, which is essential for circuits that rely on accurate resistance values for proper operation.
### Temperature Coefficient
The temperature coefficient of resistance (TCR) is an important parameter for these components. A low TCR indicates that the resistance value of the component changes minimally with temperature variations. The TNPW120624K3BEEN series is designed to have a relatively low TCR, which helps maintain stable electrical performance in different temperature environments. This is particularly important in applications where the operating temperature can fluctuate significantly, such as in automotive electronics or industrial control systems.
### Power Rating
The power rating of the components in this series is carefully determined based on their physical size and internal construction. A typical power rating for a 1206 - sized component in this series might be 0.25 W (watts). This power rating indicates the maximum amount of power that the component can safely dissipate without overheating. It is important to ensure that the power dissipated by the component in a circuit does not exceed this rating to prevent damage and ensure long - term reliability.
## Applications
### Consumer Electronics
In consumer electronics such as smartphones, tablets, and laptops, the TNPW120624K3BEEN series components can be used in various circuits. For example, they can be used in voltage - dividing circuits to provide the appropriate bias voltages for different components, or in signal - conditioning circuits to adjust the amplitude of electrical signals.
### Automotive Electronics
Automotive applications require components that can withstand harsh environmental conditions, including high temperatures, vibrations, and electrical noise. The TNPW120624K3BEEN series, with its high - quality construction and stable electrical performance, is suitable for use in automotive control systems, such as
Images for reference
-TNP-SERIES.JPG)

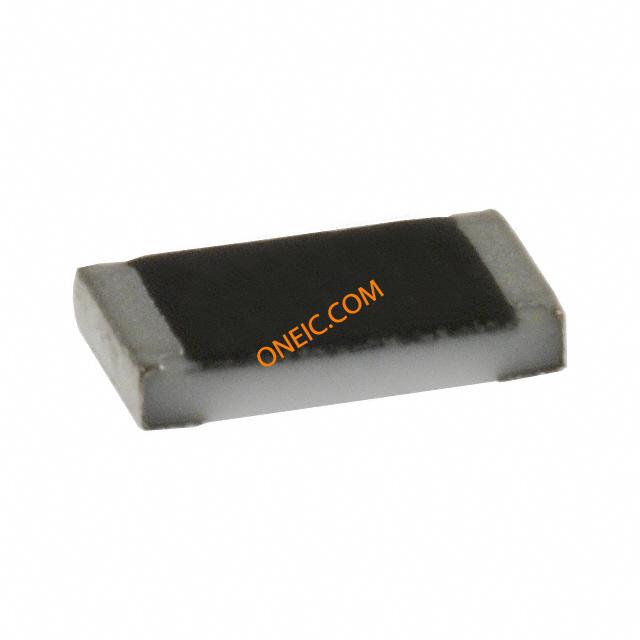

TNP SERIES
