TMS320VC5416GGU120
16-bit fixed-point digital signal processors with 120MHz speed
Manufacturer： ['rochester', 'analog-devices', 'ti']
series introduction
# Introduction to the TMS320VC5416GGU120 Product Series
## 1. Overview
The TMS320VC5416GGU120 belongs to Texas Instruments' TMS320C54x family of digital signal processors (DSPs). These DSPs are designed to offer high - performance signal processing capabilities for a wide range of applications, from telecommunications to consumer electronics. The "TMS320VC5416" is the specific model number, and "GGU120" indicates certain package and speed characteristics, with the "120" typically referring to the clock speed of the device in MHz.
## 2. Key Features
### 2.1 High - Performance CPU
- **Instruction Set**: The TMS320VC5416GGU120 is equipped with a powerful CPU that supports a rich set of instructions optimized for digital signal processing. It includes single - cycle multiply - accumulate (MAC) operations, which are fundamental for many DSP algorithms such as filtering and Fourier transforms. This allows for efficient execution of complex mathematical operations in a short amount of time.
- **Clock Speed**: With a clock speed of 120 MHz, the device can process a large number of instructions per second. This high speed enables real - time processing of signals, which is crucial in applications like audio and video processing, where delays can lead to a poor user experience.
### 2.2 Memory Architecture
- **On - Chip Memory**: It has a significant amount of on - chip memory, including both program and data memory. The on - chip memory reduces the need for external memory access, which can be a bottleneck in terms of speed. This results in faster execution of programs and better overall system performance.
- **Memory Organization**: The memory is organized in a way that allows for efficient data access. For example, it supports dual - access data memory, which means that two data words can be accessed simultaneously during a single machine cycle. This feature further enhances the processing speed of the DSP.
### 2.3 Peripherals
- **Serial Ports**: The TMS320VC5416GGU120 is equipped with multiple serial ports, such as the McBSP (Multi - Channel Buffered Serial Port). These serial ports can be used to interface with other devices, such as analog - to - digital converters (ADCs), digital - to - analog converters (DACs), and other DSPs. They support high - speed data transfer, enabling seamless integration into complex systems.
- **Timer Modules**: It has built - in timer modules that can be used for a variety of purposes, such as generating timing signals for sampling, controlling the execution of tasks at specific intervals, and implementing real - time operating systems.
### 2.4 Power Management
- **Low - Power Modes**: The device offers several low - power modes, which are essential for battery - powered applications. These modes allow the DSP to reduce its power consumption when it is not actively processing data, thereby extending the battery life of the device.
## 3. Applications
### 3.1 Telecommunications
- **Voice and Data Transmission**: In telecommunications systems, the TMS320VC5416GGU120 can be used for voice encoding and decoding, as well as data modulation and demodulation. Its high - speed processing capabilities enable real - time communication, ensuring clear and reliable voice and data transmission.
- **Base Station Signal Processing**: It can also be used in base stations for signal processing tasks, such as filtering, channel equalization, and beamforming. These tasks are crucial for improving the quality of wireless communication.
### 3.2 Audio Processing
- **Audio Effects**: The DSP's powerful processing
Images for reference

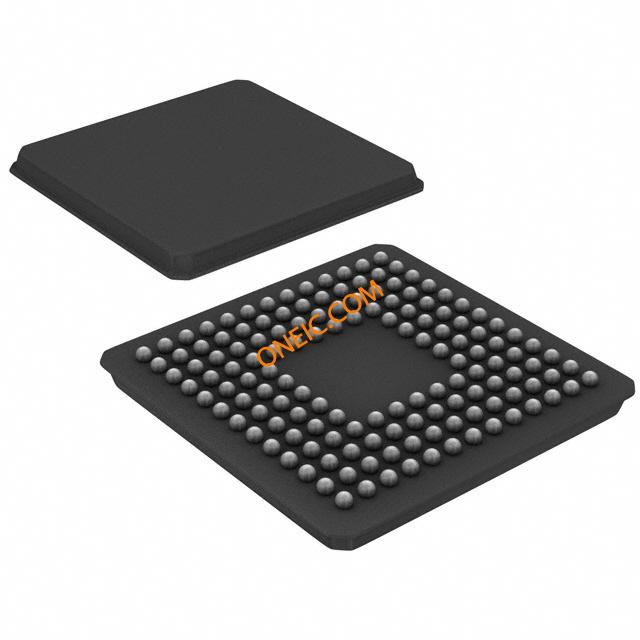

144-BGA Microstar_4073221A
