TMDSDSK6713
Low-cost DSP starter kits for TMS320C6713 development
Manufacturer： ti
series introduction
# Introduction to the TMDSDSK6713 Product Series
## Overview
The TMDSDSK6713 is a highly advanced and versatile development platform that holds significant importance in the realm of digital signal processing (DSP). Developed by Texas Instruments, this product series is designed to empower engineers, researchers, and students with a powerful tool for exploring, developing, and implementing DSP algorithms and applications.
## Key Features
### High - Performance DSP Core
At the heart of the TMDSDSK6713 lies the TMS320C6713 DSP core. This core is based on the VelociTI™ architecture, which offers exceptional floating - point performance. It can execute up to 300 million floating - point operations per second (MFLOPS), making it suitable for a wide range of computationally intensive tasks such as audio and video processing, telecommunications, and scientific research.
### Memory Configuration
- **Internal Memory**: The TMS320C6713 DSP has 32K words of on - chip SRAM. This internal memory provides fast access to data and instructions, reducing the latency associated with external memory access. It can be used to store critical code segments and frequently accessed data, enhancing the overall performance of the system.
- **External Memory Interface**: The board is equipped with an external memory interface that supports various types of memory, including SDRAM and Flash memory. The SDRAM provides a large amount of high - speed storage for data and program code, while the Flash memory is used for non - volatile storage of the boot code and other important data. This combination allows for flexible memory management and easy system configuration.
### Peripheral Interfaces
- **UART (Universal Asynchronous Receiver - Transmitter)**: The TMDSDSK6713 features a UART interface, which enables serial communication with other devices. This is useful for debugging, data transfer, and communication with external sensors or actuators.
- **SPI (Serial Peripheral Interface)**: The SPI interface provides a high - speed serial communication link between the DSP and other SPI - compatible devices. It is commonly used for connecting external sensors, displays, and other peripheral devices.
- **I²C (Inter - Integrated Circuit)**: The I²C interface allows for easy communication with a wide range of I²C - enabled devices, such as EEPROMs, sensors, and real - time clocks. It uses a simple two - wire protocol, making it easy to integrate into existing systems.
### Audio Codec
The board is equipped with an audio codec, which provides high - quality audio input and output capabilities. This makes it ideal for audio processing applications, such as speech recognition, audio effects processing, and music synthesis. The audio codec supports a wide range of sampling rates and bit depths, allowing for flexible audio signal processing.
## Development Tools and Software Support
- **Code Composer Studio (CCS)**: Texas Instruments provides the Code Composer Studio integrated development environment (IDE) for the TMDSDSK6713. CCS offers a comprehensive set of tools for code editing, debugging, and profiling. It supports both C and assembly languages, allowing developers to write efficient and optimized code.
- **DSP/BIOS**: DSP/BIOS is a real - time operating system (RTOS) provided by Texas Instruments. It simplifies the development of real - time applications by providing a set of kernel services, such as task scheduling, interrupt management, and memory management. DSP/BIOS can be used in conjunction with CCS to develop complex real - time DSP applications.
- **Algorithm Libraries**: Texas Instruments offers a variety of algorithm libraries for the TMS320C6713 DSP. These libraries include functions for audio and video processing, filtering, and mathematical operations. Using these libraries can significantly reduce the development time and effort required
Images for reference
TMDSDSK6713

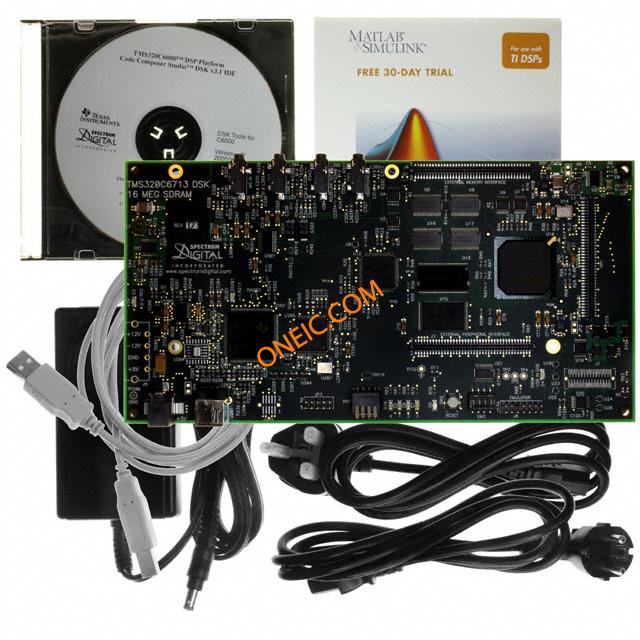

TMDSDSK6713-0E
