TLV320AIC3107IYZFT
Low-power stereo audio codec with integrated amplifier for compact devices
Manufacturer： ti
series introduction
# TLV320AIC3107IYZFT Product Series Introduction
## 1. Overview
The TLV320AIC3107IYZFT belongs to a high - performance audio codec product series developed by Texas Instruments. This series is specifically designed to meet the diverse audio processing needs in various applications, offering a comprehensive solution for high - quality audio input and output.
## 2. Key Features
### 2.1 High - Quality Audio Performance
- **Wide Dynamic Range**: It provides an excellent dynamic range, which allows for the accurate reproduction of both soft and loud audio signals. This ensures that even the subtlest details in music or voice recordings are captured and played back with high fidelity. For example, in a music production environment, it can accurately represent the quietest whispers and the most powerful drum beats.
- **Low Total Harmonic Distortion + Noise (THD+N)**: With extremely low THD+N values, the codec minimizes distortion and noise in the audio signal. This results in clean, clear audio output, making it suitable for applications where audio quality is of the utmost importance, such as professional audio equipment and high - end consumer audio devices.
### 2.2 Flexible Audio Input and Output Configurations
- **Multiple Inputs**: The TLV320AIC3107IYZFT offers a variety of audio input options, including analog inputs and digital inputs. This flexibility allows it to interface with different types of audio sources, such as microphones, line - level audio devices, and digital audio streams. For instance, in a conference room system, it can accept audio from both built - in microphones and external audio players.
- **Multiple Outputs**: It also provides multiple audio output channels, enabling it to drive different types of speakers or audio output devices. Whether it's a stereo speaker system for a home entertainment setup or a multi - channel audio system for a professional theater, this codec can handle the output requirements.
### 2.3 Integrated Features
- **On - Chip ADC and DAC**: The product integrates high - performance analog - to - digital converters (ADC) and digital - to - analog converters (DAC). This integration simplifies the design process and reduces the need for external components, saving board space and cost.
- **Digital Signal Processing (DSP) Capabilities**: It comes with built - in DSP functions that can be used for audio equalization, filtering, and other audio processing tasks. This allows for real - time adjustment of the audio signal to achieve the desired sound quality. For example, in a car audio system, the DSP can be used to compensate for the acoustic characteristics of the vehicle interior.
### 2.4 Low Power Consumption
- **Power - Saving Modes**: The TLV320AIC3107IYZFT is designed with power - saving modes, which can significantly reduce power consumption when the device is in standby or low - activity states. This makes it suitable for battery - powered applications, such as portable audio players and wireless headphones, where power efficiency is crucial.
## 3. Applications
### 3.1 Consumer Electronics
- **Smartphones and Tablets**: In these devices, the TLV320AIC3107IYZFT can be used to provide high - quality audio recording and playback. It can enhance the user experience by delivering clear voice calls, immersive music playback, and high - fidelity video audio.
- **Portable Audio Players**: For portable music players, the codec's low power consumption and high - quality audio performance make it an ideal choice. It can reproduce music with rich details and accurate soundstage, similar to what is achieved in high - end home audio systems.
### 3.2 Professional Audio Equipment
- **Audio Mixers**: In professional audio mixing consoles, the codec
Images for reference

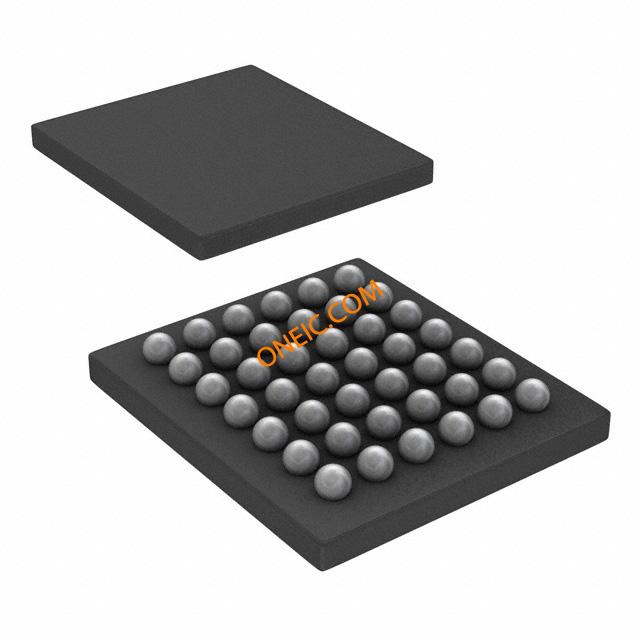

42-BGA-YZF
