TLP222G-2(F)

Solid state relays with MOSFET output for low-power switching applications

Manufacturer: toshiba

series introduction

# Introduction to the TLP222G - 2(F) Product Series

## 1. Overview
The TLP222G - 2(F) product series is a remarkable offering in the realm of optoelectronic components. These devices are designed to provide reliable and efficient signal isolation and transfer solutions, catering to a wide range of applications across various industries. Optocouplers, such as those in the TLP222G - 2(F) series, play a crucial role in electrical systems by separating electrical circuits while allowing the transmission of signals, thereby enhancing safety and performance.

## 2. Key Features

### 2.1 High - Speed Signal Transmission
The TLP222G - 2(F) series is engineered to support high - speed data transfer. With a fast response time, it can handle rapid signal changes, making it suitable for applications where real - time data processing is essential. This high - speed capability enables seamless communication between different parts of a system, reducing latency and improving overall system efficiency.

### 2.2 Dual - Channel Configuration

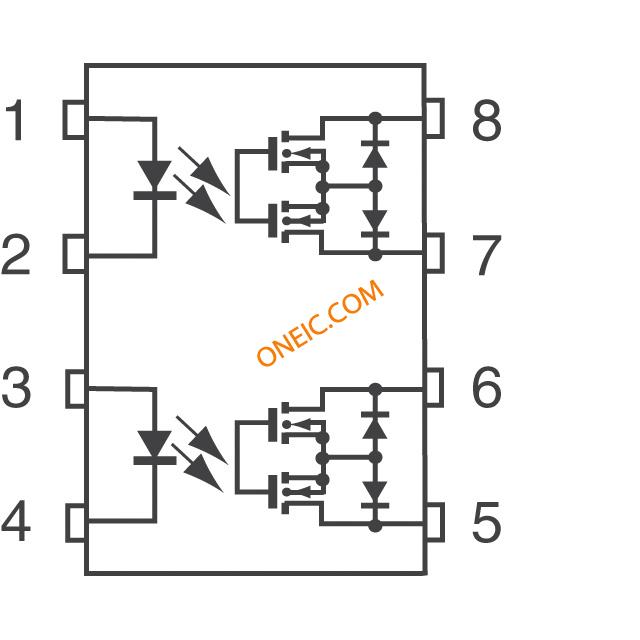

One of the standout features of the TLP222G - 2(F) is its dual - channel design. This means that it contains two independent optocoupler channels within a single package. The dual - channel configuration offers several advantages. Firstly, it allows for the simultaneous transmission of two different signals, which can be useful in applications such as multi - channel data acquisition systems or control circuits that require the isolation of multiple signals. Secondly, it saves board space compared to using two separate single - channel optocouplers, making it an ideal choice for compact designs.

### 2.3 High Isolation Voltage
Safety is a top priority in electrical systems, and the TLP222G - 2(F) series addresses this concern with its high isolation voltage rating. It can effectively isolate input and output circuits, protecting sensitive components from electrical interference, voltage spikes, and short - circuits. This high - level of isolation ensures the reliability and longevity of the connected devices, especially in harsh electrical environments.

### 2.4 Low Power Consumption
In today's energy - conscious world, the TLP222G - 2(F) series stands out for its low power consumption. The optocouplers are designed to operate efficiently, minimizing the amount of power required for signal transmission. This not only reduces energy costs but also helps in heat management, as less power consumption means less heat generation. As a result, the devices can operate more stably over long periods without the need for complex cooling mechanisms.

### 2.5 Wide Operating Temperature Range
The TLP222G - 2(F) series is built to withstand a wide range of operating temperatures. Whether it's in a high - temperature industrial environment or a low - temperature outdoor application, these optocouplers can maintain their performance. This wide temperature tolerance ensures the reliability of the devices in diverse operating conditions, making them suitable for a broad spectrum of applications.

## 3. Applications

### 3.1 Industrial Automation
In industrial automation systems, the TLP222G - 2(F) series is used for signal isolation between control circuits and high - power equipment. For example, in programmable logic controllers (PLCs), it can isolate the low - voltage control signals from the high - voltage output signals that drive motors, solenoids, and other actuators. This isolation protects the sensitive control circuitry from electrical noise and voltage surges, ensuring the stable operation of the automation system.

### 3.2 Power Supplies
Power supplies often require signal isolation to protect the input and output circuits. The TLP222G - 2(F) can be used in switch - mode power supplies (SMPS) to isolate the feedback signal from the output voltage. This isolation

Images for reference

8-DIP

8-DIP

TLP Series 8 POS

TLP Series 8 POS

Image Preview

Image Preview
