TL783CKT

Adjustable linear voltage regulators, 0.7A, 1.25V to 125V range

Manufacturer: ti

series introduction

# Introduction to the TL783CKT Product Series

## Overview
The TL783CKT product series is a remarkable line of adjustable positive voltage regulators that have been engineered to meet the diverse and demanding requirements of modern electronic circuits. These regulators are designed to provide a stable and precise output voltage, making them an ideal choice for a wide range of applications, from consumer electronics to industrial control systems.

## Key Features

### Adjustable Output Voltage
One of the most significant features of the TL783CKT series is its adjustable output voltage. Users can set the output voltage within a wide range, typically from a few volts up to a maximum specified value. This flexibility allows the regulators to be used in various circuits that require different voltage levels, eliminating the need for multiple fixed - voltage regulators.

### High Output Current Capability
The TL783CKT regulators are capable of delivering high output currents. This makes them suitable for powering components that demand significant amounts of power, such as microprocessors, power amplifiers, and other high - current loads. The high - current handling capacity ensures that the regulator can maintain a stable output voltage even under heavy load conditions.

### Low Dropout Voltage
The low dropout voltage characteristic of the TL783CKT series is another important advantage. Dropout voltage is the minimum voltage difference between the input and output voltages required for the regulator to maintain proper operation. A low dropout voltage means that the regulator can operate efficiently even when the input voltage is only slightly higher than the desired output voltage. This is particularly useful in battery - powered applications, where conserving battery life is crucial.

### Excellent Line and Load Regulation
The regulators in the TL783CKT series offer excellent line and load regulation. Line regulation refers to the ability of the regulator to maintain a constant output voltage despite variations in the input voltage. Load regulation, on the other hand, is the regulator's ability to keep the output voltage stable when the load current changes. The high - quality regulation provided by the TL783CKT ensures that the output voltage remains within a tight tolerance, providing a reliable power supply for sensitive electronic components.

### Thermal Protection
To prevent damage due to overheating, the TL783CKT series is equipped with thermal protection. When the temperature of the regulator exceeds a certain threshold, the thermal protection circuit kicks in and reduces the output current or shuts down the regulator temporarily. This feature helps to extend the lifespan of the regulator and ensures the safety of the entire circuit.

## Applications

### Consumer Electronics
In consumer electronics, the TL783CKT series can be used in devices such as smartphones, tablets, and laptops. These devices often require multiple voltage levels to power different components, and the adjustable output voltage of the TL783CKT makes it a suitable choice. It can also be used in audio amplifiers to provide a stable power supply, ensuring high - quality sound output.

### Industrial Control Systems
Industrial control systems rely on precise and stable power supplies to operate effectively. The TL783CKT regulators can be used in programmable logic controllers (PLCs), motor control units, and other industrial equipment. Their high - current capability and excellent regulation make them well - suited for powering the various sensors, actuators, and control circuits in these systems.

### Automotive Electronics
Automotive electronics require power supplies that can withstand harsh operating conditions, including wide temperature ranges and electrical noise. The TL783CKT series, with its thermal protection and good regulation characteristics, can be used in automotive applications such as engine control units, infotainment systems, and lighting control modules.

## Package and Pin Configuration
The TL783CKT is typically available in a standard package that is easy to mount on printed circuit boards (PCBs). The pin configuration is designed to simplify the connection process, with clearly labeled pins

Images for reference

DPAK,TO-252-(2-LEADS+TAB)

DPAK,TO-252-(2-LEADS+TAB)

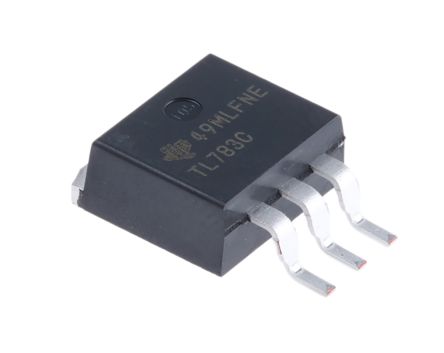

TO-263-3, TS3B

TO-263-3, TS3B

Image Preview

Image Preview

Datasheets

Partlist

TL783CKTER
TL783CKTTR
TL783CKTTRG3
TL783CKTTRG3/BKN
