TDA7265
Class-AB stereo audio amplifiers with 25-30W power, 11-pin MULTIWATT V package
Manufacturer： ['stm', 'utc']
series introduction
# TDA7265 Product Series Introduction
## 1. Overview
The TDA7265 is a highly regarded product series in the field of audio amplifier integrated circuits. Developed by leading semiconductor manufacturers, it is designed to meet a wide range of audio amplification needs, from consumer electronics to automotive audio systems. With its excellent performance, reliability, and flexibility, the TDA7265 has become a popular choice among engineers and designers.
## 2. Key Features
### 2.1 High - Power Output
The TDA7265 is capable of delivering a relatively high power output. It can drive speakers with sufficient power to produce clear and loud audio. For example, in a typical application, it can provide an output power of up to several watts per channel, which is suitable for small - to medium - sized speakers commonly used in portable audio devices, desktop speakers, and some automotive audio setups.
### 2.2 Dual - Channel Configuration
This product series comes with a dual - channel design. This allows for stereo audio playback, which is essential for creating a more immersive and realistic audio experience. The two channels can be independently adjusted and controlled, enabling precise audio balance and separation between the left and right speakers.
### 2.3 Low Distortion
One of the standout features of the TDA7265 is its low total harmonic distortion (THD). Low distortion ensures that the audio signal is reproduced accurately, without introducing unwanted artifacts or coloration. This results in high - quality sound reproduction, where the original audio source can be faithfully replicated, whether it is music, voice, or other audio content.
### 2.4 Wide Supply Voltage Range
The TDA7265 can operate over a wide supply voltage range. This flexibility makes it suitable for various power sources, such as batteries in portable devices or the power supply systems in automotive applications. It can handle different voltage levels, which simplifies the design process and allows for seamless integration into different types of electronic products.
### 2.5 Thermal Protection
To ensure the reliability and longevity of the device, the TDA7265 is equipped with thermal protection mechanisms. When the temperature of the integrated circuit rises above a certain threshold, the thermal protection circuit will automatically reduce the power output or shut down the device to prevent overheating. This helps to avoid damage to the chip and ensures stable operation even under high - load conditions.
### 2.6 Mute and Standby Functions
The series offers mute and standby functions. The mute function allows users to quickly silence the audio output without having to turn off the power supply. This is useful in situations where temporary silence is required, such as during a phone call or when there is a need to pause the audio. The standby function reduces the power consumption of the device when it is not in use, which is beneficial for battery - powered applications.
## 3. Applications
### 3.1 Consumer Electronics
- **Portable Audio Players**: The TDA7265 can be used in portable music players, such as MP3 players and smartphones. Its small size, low power consumption, and high - quality audio output make it an ideal choice for enhancing the audio performance of these devices.
- **Desktop Speakers**: In desktop speaker systems, the TDA7265 can drive the speakers to produce clear and powerful sound. It can handle different types of audio sources, such as computers, laptops, and tablets, providing users with an immersive audio experience for gaming, watching videos, or listening to music.
### 3.2 Automotive Audio
- **Car Stereos**: The automotive environment requires audio amplifiers that can operate under harsh conditions, such as wide temperature ranges and electrical noise. The TDA7265's wide supply voltage range, thermal protection, and low distortion make it suitable for car stereo systems.
Images for reference

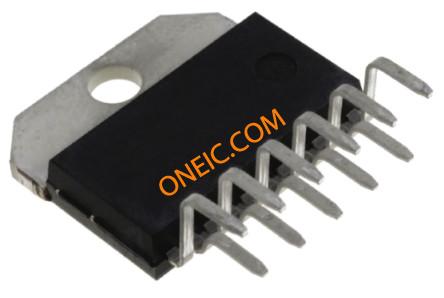

11-Multiwatt V
