T322B105K035AT

Solid tantalum capacitors for high-temperature electronic applications

Manufacturer: kemet

series introduction

# Introduction to the T322B105K035AT Product Series

## 1. Overview
The T322B105K035AT product series represents a cutting - edge range of electronic components that are designed to meet the diverse and demanding requirements of modern electronic circuits. These components are engineered with high precision and advanced technology to ensure reliable performance in a wide variety of applications.

## 2. Product Nomenclature Breakdown
- **T322**: This is the base model or series identifier. It indicates a specific family of products within the manufacturer's portfolio, which share common design features, manufacturing processes, and performance characteristics.
- **B**: This letter may represent a particular sub - series or a specific set of electrical or physical properties. It could denote differences in capacitance tolerance, voltage rating, or other key parameters compared to other sub - series within the T322 range.
- **105**: In the context of capacitors, this is a common way to represent capacitance value. Using the standard code, the first two digits (10) are the significant figures, and the third digit (5) is the multiplier. So, 105 means \(10\times10^{5}\) picofarads, which is equivalent to 1 microfarad (\(1\ \mu F\)).
- **K**: This symbol represents the capacitance tolerance. A "K" indicates a tolerance of ±10%. This means that the actual capacitance value of the component can vary by up to 10% from the nominal value (in this case, 1 μF).
- **035**: This part of the code might represent the voltage rating of the component. For example, it could mean 35 volts, indicating the maximum voltage that the component can safely withstand without significant degradation or failure.
- **AT**: These letters could be used to denote additional features, such as a specific temperature coefficient, a particular packaging option, or a compliance with certain industry standards.

## 3. Electrical Characteristics
### Capacitance
As mentioned earlier, the nominal capacitance of the T322B105K035AT series is 1 μF with a tolerance of ±10%. This means that the actual capacitance value of each component in the series will fall within the range of 0.9 μF to 1.1 μF. This level of capacitance makes the components suitable for a variety of applications, including filtering, coupling, and decoupling in electronic circuits.

### Voltage Rating
With a voltage rating of 35 volts, the T322B105K035AT components can handle relatively high - voltage applications within the specified limit. This makes them suitable for use in power supply circuits, where they can help to smooth out voltage fluctuations and provide stable power to other components.

### Dielectric Properties
The dielectric material used in the T322B105K035AT series is carefully selected to provide low dielectric loss and high insulation resistance. Low dielectric loss ensures that the component does not dissipate excessive energy as heat, which is crucial for maintaining the efficiency of the circuit. High insulation resistance helps to prevent leakage currents, which can cause interference and reduce the performance of the circuit.

### Temperature Coefficient
The temperature coefficient of the T322B105K035AT series is designed to ensure stable performance over a wide temperature range. This means that the capacitance value and other electrical properties of the component will not change significantly with temperature variations, making it suitable for use in environments with fluctuating temperatures.

## 4. Physical Characteristics
### Packaging
The T322B105K035AT components are typically available in a compact and standardized package. This makes them

Images for reference

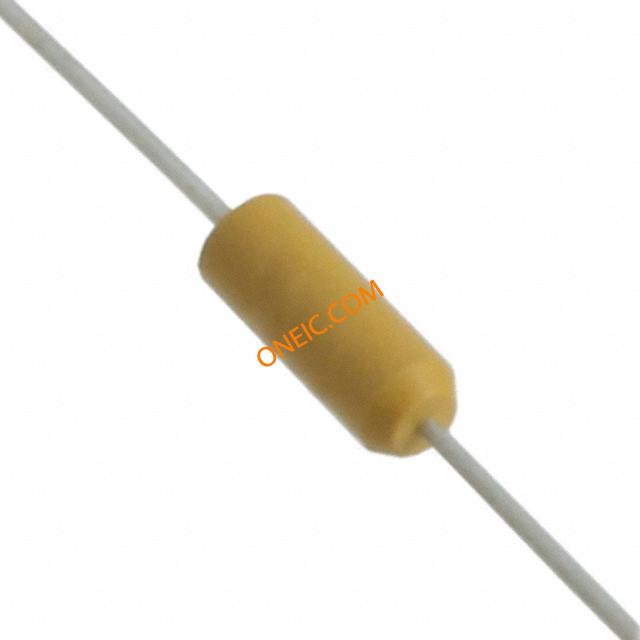

T32227 Series

T32227 Series

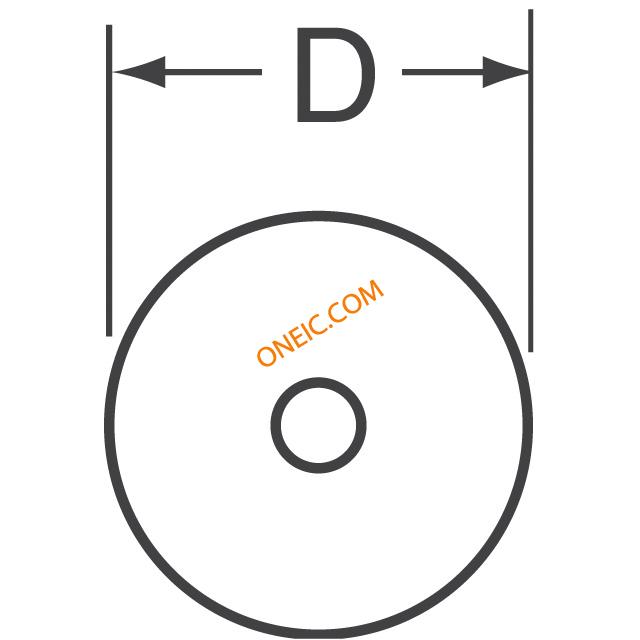

T322 Series Side 1
