SWS150-24
Compact 24V 6.3A enclosed switch-mode power supplies for efficient energy conversion
Manufacturer： tdk-lambda
series introduction
# Introducing the SWS150 - 24 Product Series: A Technological Marvel for Diverse Applications
## Overview
The SWS150 - 24 product series represents a cutting - edge line of power supply solutions engineered to meet the demanding requirements of modern electronic systems. With a focus on reliability, efficiency, and performance, these power supplies are designed to provide a stable and consistent power source for a wide range of applications.
## Key Features
### High - Power Output
The "150" in the SWS150 - 24 indicates its power rating. These power supplies are capable of delivering up to 150 watts of continuous power. This high - power output makes them suitable for powering multiple components simultaneously, such as in industrial control systems, automation equipment, and high - performance computing devices.
### Fixed Output Voltage
The "24" in the model number denotes a fixed output voltage of 24 volts. A stable 24 - volt output is a common requirement in many industrial and commercial applications. It ensures that connected devices receive the correct voltage, preventing damage due to over - or under - voltage conditions. This fixed voltage output also simplifies the design process for engineers, as they can rely on a consistent power source for their circuits.
### High Efficiency
The SWS150 - 24 series is designed with high - efficiency power conversion technology. With efficiency ratings typically above 90%, these power supplies minimize energy loss during the conversion process. This not only reduces operating costs but also helps in reducing heat generation. Lower heat output means less stress on the internal components, leading to increased reliability and a longer lifespan for the power supply.
### Wide Input Voltage Range
These power supplies can accept a wide range of input voltages. This feature makes them suitable for use in different regions around the world, where the mains voltage may vary. Whether it's a 100 - 240V AC input in a standard household or commercial setting, or other input voltage configurations, the SWS150 - 24 can adapt and provide a stable 24 - volt output.
### Over - Current and Over - Voltage Protection
To safeguard both the power supply and the connected devices, the SWS150 - 24 series is equipped with over - current and over - voltage protection mechanisms. In case of a short - circuit or an abnormal load condition that causes excessive current draw, the power supply will automatically shut down or limit the current to prevent damage. Similarly, if the output voltage exceeds a safe level, the protection circuit will kick in to maintain a stable voltage.
### Compact Design
The power supplies in the SWS150 - 24 series feature a compact and space - saving design. This is particularly important in applications where space is limited, such as in small control cabinets or embedded systems. The compact form factor allows for easy integration into existing systems without taking up too much valuable real estate.
## Applications
### Industrial Automation
In industrial automation, the SWS150 - 24 series can power programmable logic controllers (PLCs), sensors, actuators, and other control devices. The stable 24 - volt output ensures reliable operation of these critical components, while the high - power output can support multiple devices in a single system.
### Telecommunications
Telecommunication equipment often requires a stable power source. The SWS150 - 24 power supplies can be used to power routers, switches, and other network devices. Their high efficiency and wide input voltage range make them suitable for use in different telecommunication environments, including remote locations.
### LED Lighting Systems
LED lighting systems, especially those used in commercial and industrial settings, can benefit from the SWS150 - 24 series. The 24 - volt output is well - suited for power

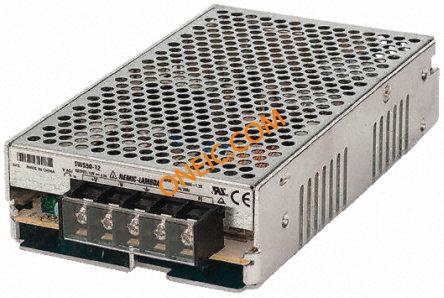

Images for reference
