STTH8R06D

Ultrafast rectifier diodes, 8A 600V, TO-220AC package

Manufacturer: stm

series introduction

# Introduction to the STTH8R06D Product Series

## 1. Overview
The STTH8R06D product series is a remarkable line of semiconductor devices offered by STMicroelectronics, a global leader in semiconductor solutions. These devices are specifically designed as high - performance rectifiers, catering to a wide range of power electronics applications. With their advanced features and reliable performance, they have become a popular choice among engineers and designers in various industries.

## 2. Key Specifications

### 2.1 Voltage and Current Ratings
- **Reverse Voltage (VRRM)**: The STTH8R06D series is rated for a maximum repetitive peak reverse voltage of 600V. This high reverse voltage rating makes it suitable for use in applications where the device needs to withstand significant reverse bias without breakdown.
- **Average Forward Current (IF(AV))**: These rectifiers can handle an average forward current of up to 8A. This high current - carrying capacity allows them to be used in power - hungry applications, such as power supplies and motor control circuits.

### 2.2 Forward Voltage Drop
The forward voltage drop (VF) of the STTH8R06D is relatively low. A low forward voltage drop is crucial as it reduces power dissipation in the device, leading to higher efficiency. In practical applications, this means less energy is wasted as heat, resulting in cost savings and improved overall system performance.

### 2.3 Reverse Recovery Time
The reverse recovery time (trr) of the STTH8R06D is short. A short reverse recovery time is essential in high - frequency applications. It minimizes the power losses that occur when the rectifier switches from the conducting state to the non - conducting state, enabling the device to operate efficiently at high frequencies.

## 3. Package and Thermal Characteristics

### 3.1 Package Type
The STTH8R06D is typically available in a TO - 220AB package. The TO - 220AB package is a widely used through - hole package in the electronics industry. It offers several advantages, including easy mounting on printed circuit boards (PCBs) and good thermal dissipation properties.

### 3.2 Thermal Resistance
The thermal resistance of the device is an important parameter that determines how effectively it can dissipate heat. The STTH8R06D has a relatively low thermal resistance, which means it can transfer heat from the junction to the ambient environment efficiently. This allows the device to operate at higher power levels without overheating, enhancing its reliability and lifespan.

## 4. Applications

### 4.1 Power Supplies
In switch - mode power supplies (SMPS), the STTH8R06D can be used as output rectifiers. Its high voltage and current ratings, along with its low forward voltage drop and short reverse recovery time, make it ideal for converting high - frequency AC to DC with high efficiency. This helps in reducing power losses and improving the overall performance of the power supply.

### 4.2 Motor Control
In motor control circuits, the STTH8R06D can be used in the rectification stage to convert the AC input to DC for powering the motor drive. The device's ability to handle high currents and its fast switching characteristics make it suitable for controlling motors of different sizes and types, ensuring smooth and efficient motor operation.

### 4.3 Lighting Systems
In LED lighting systems, especially high - power LED drivers, the STTH8R06D can be used to rectify the input AC voltage. Its high efficiency and reliability contribute to the overall performance and longevity of the lighting system, reducing energy consumption and maintenance costs.

## 5. Advantages

### 5.1 High Efficiency
The combination of low forward voltage drop and short reverse recovery time results in

Images for reference

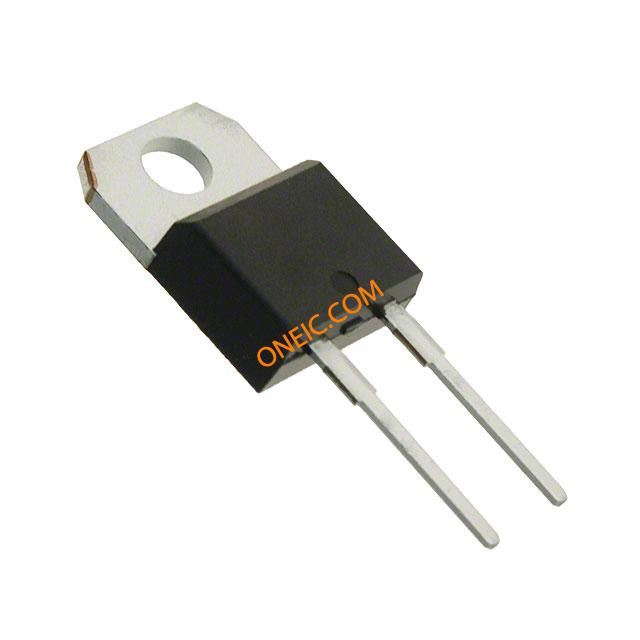

TO-220-2

TO-220-2

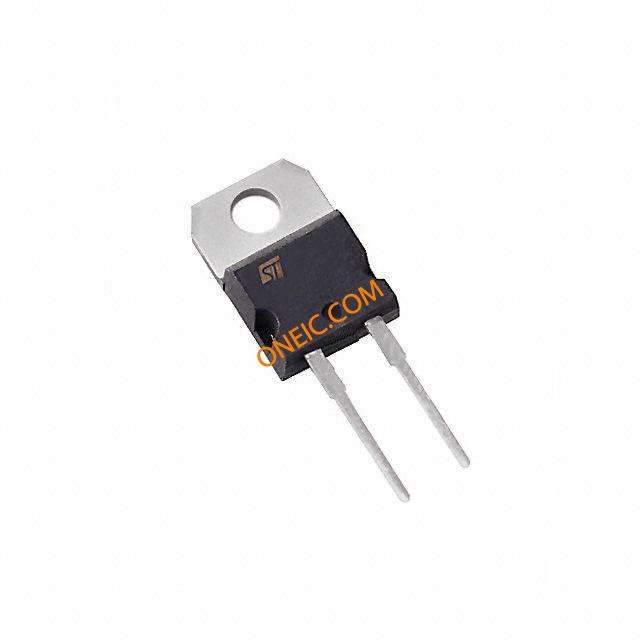

TO-220AC Pkg
