STTH1602CT
High-power ultrafast rectifier diodes in TO-220AB package
Manufacturer： ['stm', 'iscsemi']
series introduction
# Introduction to the STTH1602CT Product Series
## 1. Overview
The STTH1602CT is a remarkable product series within the semiconductor realm, specifically belonging to the family of high - performance rectifier diodes. These diodes are engineered to meet the diverse and demanding requirements of modern electronic circuits, offering a reliable and efficient solution for power conversion and rectification applications.
## 2. Key Features
### 2.1 High Current Capability
One of the standout features of the STTH1602CT series is its ability to handle high currents. With a maximum average forward current rating of 16 A, these diodes can support significant power loads. This makes them ideal for use in power supplies, battery chargers, and other high - power applications where large amounts of current need to be rectified.
### 2.2 Low Forward Voltage Drop
The diodes in the STTH1602CT series exhibit a low forward voltage drop. A low forward voltage drop means less power is dissipated as heat during the conduction process. This not only improves the overall efficiency of the circuit but also reduces the need for complex and bulky heat - sinking solutions. For example, in a power supply circuit, a lower forward voltage drop translates to less energy wasted as heat, resulting in a more energy - efficient system.
### 2.3 Fast Reverse Recovery Time
Fast reverse recovery time is a crucial characteristic for rectifier diodes. The STTH1602CT series has a short reverse recovery time, which allows the diodes to switch from the conducting state to the non - conducting state quickly. This is particularly important in high - frequency applications such as switch - mode power supplies (SMPS). In SMPS, fast reverse recovery helps to reduce switching losses and improve the overall performance and efficiency of the power supply.
### 2.4 High Surge Current Capability
These diodes are designed to withstand high surge currents. Surge currents can occur due to sudden changes in the electrical load or during power - on transients. The STTH1602CT series can handle these short - term high - current spikes without getting damaged, ensuring the reliability and durability of the circuit.
### 2.5 Low Leakage Current
Low leakage current is another important feature of the STTH1602CT series. Leakage current is the small amount of current that flows through the diode when it is in the reverse - biased state. A low leakage current reduces power consumption in the off - state and helps to maintain the stability of the circuit.
## 3. Package and Thermal Characteristics
### 3.1 Package Type
The STTH1602CT is typically available in a TO - 220AB package. This is a widely used and well - known package in the semiconductor industry. The TO - 220AB package offers good mechanical stability and is easy to mount on printed circuit boards (PCBs). It also provides a relatively large surface area for heat dissipation, which is beneficial for high - power applications.
### 3.2 Thermal Resistance
The thermal resistance of the STTH1602CT series is carefully designed to ensure efficient heat transfer. A low thermal resistance allows the heat generated during operation to be dissipated effectively to the surrounding environment. This helps to keep the diode at a safe operating temperature, preventing overheating and potential damage to the device.
## 4. Applications
### 4.1 Power Supplies
In linear and switch - mode power supplies, the STTH1602CT series is used for rectifying the alternating current (AC) input into direct current (DC). Its high current - handling capability and low forward voltage drop make it suitable for both low - power and high - power power supply designs. For example, in a desktop computer power supply,
Images for reference

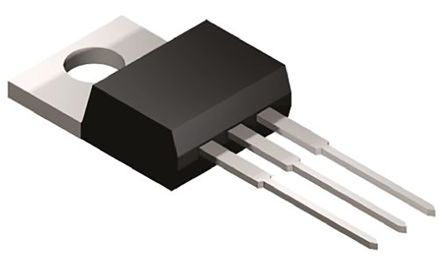

TO-220-3
Image Preview
Image Preview
