STTH15R06FP

Ultrafast rectifier diodes for high-power switching applications

Manufacturer: stm

series introduction

# Introduction to the STTH15R06FP Product Series

## 1. Overview
The STTH15R06FP is a significant product series within the realm of power semiconductor devices, specifically belonging to the family of fast recovery rectifiers. These rectifiers play a crucial role in power conversion circuits, where they are responsible for converting alternating current (AC) into direct current (DC). STMicroelectronics, the manufacturer of the STTH15R06FP series, is renowned for its high - quality semiconductor solutions, and this product series is no exception, offering reliable and efficient performance for a wide range of applications.

## 2. Key Features

### 2.1 High Current Capability
The STTH15R06FP is designed to handle a maximum average forward current (IF(AV)) of 15 A. This high current - handling capacity makes it suitable for power - hungry applications such as power supplies in industrial equipment, servers, and high - power consumer electronics. It can efficiently transfer large amounts of electrical energy without overheating or suffering from excessive power losses, ensuring stable operation even under heavy load conditions.

### 2.2 Low Forward Voltage Drop
One of the standout features of this product series is its low forward voltage drop (VF). A low VF means that less power is dissipated as heat when current flows through the rectifier. This not only improves the overall efficiency of the power conversion circuit but also reduces the need for complex and bulky heat - dissipation mechanisms. For example, in a power supply design, a lower VF can lead to significant energy savings over time, making the system more environmentally friendly and cost - effective.

### 2.3 Fast Reverse Recovery Time
The fast reverse recovery time (trr) of the STTH15R06FP is another critical feature. When the rectifier switches from the forward - conducting state to the reverse - blocking state, a short trr ensures that the device can quickly stop conducting reverse current. This is essential in high - frequency applications, such as switch - mode power supplies (SMPS), where rapid switching between forward and reverse bias is required. A fast trr reduces switching losses and electromagnetic interference (EMI), resulting in a more efficient and quieter power supply.

### 2.4 High Repetitive Peak Reverse Voltage
The series can withstand a repetitive peak reverse voltage (VRRM) of 600 V. This high voltage rating makes it suitable for use in applications where the rectifier may be exposed to high - voltage transients or operate in high - voltage power systems. It provides a safety margin against voltage spikes, protecting the rectifier and other components in the circuit from damage.

## 3. Package and Thermal Characteristics

### 3.1 Package Type
The STTH15R06FP is typically available in a TO - 220FP package. This package is widely used in the power electronics industry due to its excellent thermal performance and ease of mounting. The TO - 220FP package has a large surface area, which allows for efficient heat transfer from the semiconductor die to the surrounding environment. It also features a through - hole design, making it suitable for both manual and automated assembly processes on printed circuit boards (PCBs).

### 3.2 Thermal Resistance
The thermal resistance of the STTH15R06FP in the TO - 220FP package is relatively low. This means that the device can dissipate heat effectively, even when operating at high currents. Low thermal resistance helps to maintain the junction temperature of the rectifier within a safe range, ensuring long - term reliability and preventing thermal runaway, which can lead to device failure.

## 4. Applications

### 4.1 Switch - Mode Power Supplies (SMPS)
In SMPS, the STTH15R06FP

Images for reference

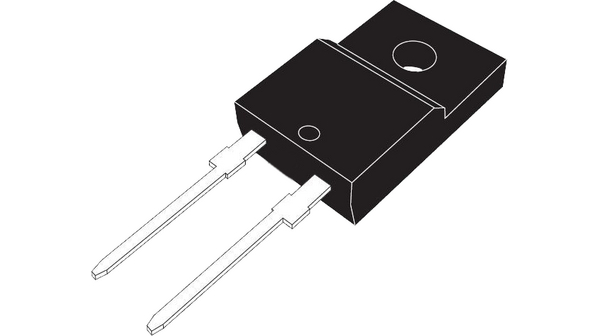

TO-220-2 FullPack, ITO-220AC

TO-220-2 FullPack, ITO-220AC

Image Preview

Image Preview

Image Preview

Image Preview
