STTH1506DPI
High-power fast recovery rectifier diodes for switching applications
Manufacturer： stm
series introduction
# STTH1506DPI Product Series Introduction
## 1. Overview
The STTH1506DPI is a remarkable product series offered by STMicroelectronics, a leading player in the semiconductor industry. This series of rectifiers is specifically designed to meet the diverse and demanding requirements of modern electronic circuits. With a focus on high - performance, reliability, and efficiency, the STTH1506DPI series has found widespread applications in various power electronics systems.
## 2. Key Features
### 2.1 High Current Capability
The STTH1506DPI is capable of handling a high forward current. It can support a maximum average forward current (IF(AV)) of up to 15 A. This high - current handling capacity makes it suitable for power - hungry applications such as power supplies, battery chargers, and motor control circuits. Whether it's a small - scale consumer electronics device or a large - scale industrial power system, the ability to carry significant current ensures stable and efficient operation.
### 2.2 Low Forward Voltage Drop
One of the standout features of this product series is its low forward voltage drop (VF). A low VF means that less power is dissipated as heat when current flows through the rectifier. This not only improves the overall efficiency of the circuit but also reduces the need for complex and bulky heat - dissipation mechanisms. For example, in a power supply circuit, a lower VF results in less energy being wasted as heat, leading to higher energy conversion efficiency and lower operating costs.
### 2.3 Fast Reverse Recovery Time
The STTH1506DPI has a fast reverse recovery time (trr). When the rectifier switches from the forward - conducting state to the reverse - blocking state, a short trr ensures that the transition is smooth and efficient. This is crucial in high - frequency applications where rapid switching is required. In switch - mode power supplies (SMPS), for instance, a fast trr helps to reduce switching losses and improve the overall performance of the power supply, allowing it to operate at higher frequencies and with greater efficiency.
### 2.4 High Reverse Voltage Rating
It offers a high reverse voltage rating (VRRM) of 600 V. This high reverse voltage tolerance makes the STTH1506DPI suitable for use in circuits where there may be high - voltage spikes or transients. It can effectively block reverse current flow even under high - voltage conditions, protecting the other components in the circuit from damage. This feature is particularly important in applications such as industrial power systems and automotive electronics, where voltage fluctuations are common.
### 2.5 Robust Package Design
The STTH1506DPI comes in a DPAK (TO - 252) package. This package is known for its excellent thermal performance and mechanical robustness. The DPAK package allows for efficient heat transfer from the semiconductor die to the surrounding environment, which helps to keep the device cool during operation. Additionally, its mechanical design makes it easy to mount on printed circuit boards (PCBs), ensuring reliable and stable connections.
## 3. Applications
### 3.1 Power Supplies
In both linear and switch - mode power supplies, the STTH1506DPI plays a crucial role. In linear power supplies, it is used to rectify the alternating current (AC) input into direct current (DC). In switch - mode power supplies, its fast reverse recovery time and low forward voltage drop contribute to high - efficiency power conversion. It can be found in power supplies for computers, servers, and other electronic devices, ensuring a stable and clean power output.
### 3.2 Battery Chargers
Battery chargers require efficient rectification to convert AC power from the mains into DC power for charging batteries. The high - current handling
Images for reference

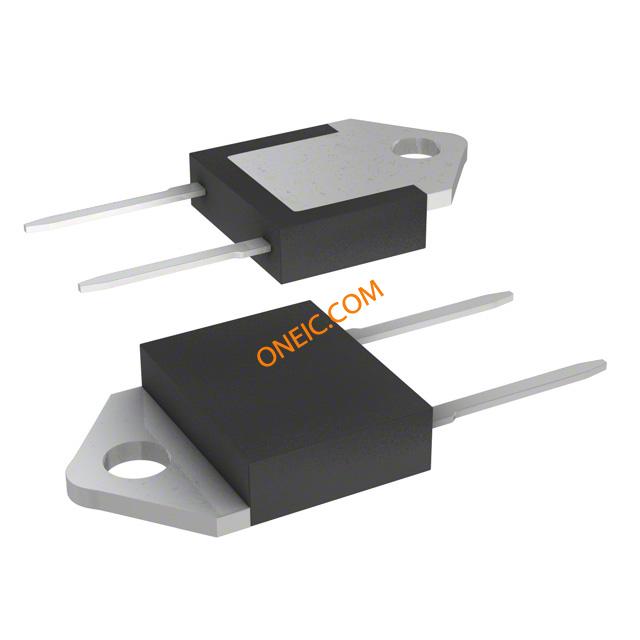

DOP3I-2
