STPS20L40C
40V Schottky diodes with low voltage drop for efficient rectification
Manufacturer： stm
series introduction
# Introduction to the STPS20L40C Product Series
## 1. Overview
The STPS20L40C product series is a remarkable line of semiconductor devices offered by STMicroelectronics, a leading player in the global semiconductor industry. These devices belong to the category of Schottky barrier diodes, which are known for their unique electrical characteristics and wide - ranging applications. The STPS20L40C series is designed to meet the demanding requirements of modern electronic circuits, providing high - performance rectification solutions with enhanced efficiency and reliability.
## 2. Key Features
### 2.1 Low Forward Voltage Drop
One of the most significant features of the STPS20L40C series is its low forward voltage drop. This characteristic allows the diodes to minimize power losses during the conduction phase. When current flows through the diode, a lower forward voltage drop means less energy is dissipated as heat. As a result, the overall efficiency of the circuit is improved, which is crucial in applications where power consumption is a major concern, such as in power supplies and battery - charging circuits.
### 2.2 High Current Capability
The STPS20L40C diodes are capable of handling high currents. With a continuous forward current rating of up to 20A, they can be used in applications that require the transfer of large amounts of electrical power. This high - current handling capacity makes them suitable for use in power converters, motor drives, and other high - power electronic systems.
### 2.3 Fast Switching Speed
Schottky diodes in general have fast switching speeds, and the STPS20L40C series is no exception. The fast switching characteristic enables the diodes to quickly turn on and off, which is essential in high - frequency applications. In switching power supplies, for example, fast - switching diodes can reduce switching losses and improve the overall performance of the power supply by allowing it to operate at higher frequencies.
### 2.4 Low Reverse Leakage Current
The STPS20L40C diodes exhibit low reverse leakage current. When the diode is reverse - biased, a low leakage current means that very little current flows through the diode in the reverse direction. This helps to reduce power dissipation in the off - state and improves the overall efficiency and reliability of the circuit. It also ensures that the diode can effectively block reverse voltage without significant current leakage, which is important in protecting other components in the circuit.
### 2.5 High - Temperature Operation
These diodes are designed to operate reliably at high temperatures. They have a high junction temperature rating, which allows them to withstand the heat generated during normal operation in high - power applications. This high - temperature tolerance makes the STPS20L40C series suitable for use in harsh environments where the ambient temperature can be relatively high, such as in automotive and industrial applications.
## 3. Package Options
The STPS20L40C series is available in various package options to meet different application requirements. Common packages include the TO - 220 and D2PAK packages.
### 3.1 TO - 220 Package
The TO - 220 package is a popular through - hole package that offers good thermal performance. It has a metal tab that can be easily attached to a heat sink, which helps to dissipate the heat generated by the diode. This package is suitable for applications where the diode needs to be mounted on a printed circuit board (PCB) using through - hole technology and where efficient heat dissipation is required.
### 3.2 D2PAK Package
The D2PAK package is a surface - mount package that provides a compact and space - saving solution. It has a low profile and can be easily soldered onto the PCB using
Images for reference

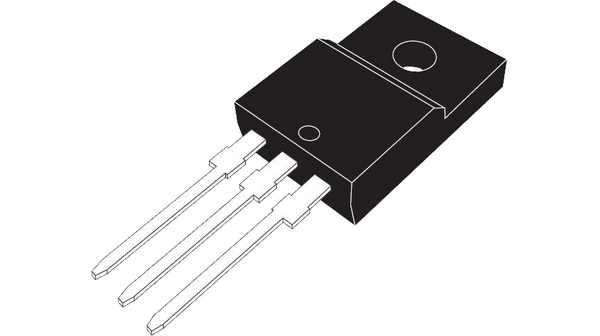

TO-220AB Full Pack
