STP80NF12

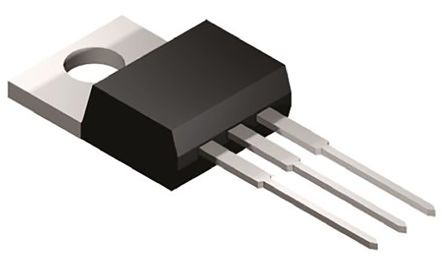

N-channel MOSFET transistors, 120V 80A, TO-220 package
Manufacturer： stm
series introduction
# Introduction to the STP80NF12 Product Series
## 1. Overview
The STP80NF12 product series is a remarkable line of power MOSFETs (Metal - Oxide - Semiconductor Field - Effect Transistors) developed by STMicroelectronics. These MOSFETs are engineered to meet the demanding requirements of a wide range of power - related applications, offering high - performance, reliability, and efficiency.
## 2. Key Features
### 2.1 Electrical Characteristics
- **Low On - Resistance (RDS(on))**: One of the most significant features of the STP80NF12 series is its extremely low on - resistance. With a low RDS(on), the MOSFET can conduct a large amount of current with minimal power loss in the on - state. This results in reduced heat generation, which is crucial for improving the overall efficiency of power circuits and extending the lifespan of the components. For example, in high - current power supplies, the low RDS(on) helps to minimize voltage drops across the MOSFET, ensuring stable output voltages.
- **High Drain - Source Voltage Rating (VDS)**: The STP80NF12 MOSFETs are designed with a high drain - source voltage rating. This allows them to handle relatively high voltages in the circuit, making them suitable for applications where high - voltage switching is required. The high VDS rating also provides a safety margin, protecting the MOSFET from voltage spikes and surges that may occur in the circuit.
- **High Continuous Drain Current (ID)**: These MOSFETs can handle a high continuous drain current. This high - current - handling capability makes them ideal for power - hungry applications such as motor control, where large amounts of current are needed to drive the motors.
### 2.2 Thermal Performance
- **Good Thermal Conductivity**: The STP80NF12 series is designed to have excellent thermal conductivity. This enables efficient heat dissipation from the MOSFET to the surrounding environment. By effectively transferring heat away from the device, the MOSFET can operate at lower temperatures, which improves its performance and reliability. In some applications, heat sinks can be easily attached to the MOSFET to further enhance the heat - dissipation process.
- **Thermal Protection**: Some models in the STP80NF12 series may incorporate thermal protection features. These features can detect when the MOSFET temperature exceeds a certain threshold and take appropriate actions, such as reducing the current flow or shutting down the device, to prevent overheating and potential damage.
### 2.3 Package and Mounting
- **Standard Packages**: The STP80NF12 MOSFETs are available in standard packages, such as TO - 220 and D2PAK. These packages are widely used in the electronics industry, which makes them easy to integrate into existing circuit designs. The standard packages also offer good mechanical stability and electrical isolation.
- **Surface - Mount and Through - Hole Options**: Depending on the specific requirements of the application, the STP80NF12 series provides both surface - mount and through - hole mounting options. Surface - mount packages are suitable for high - density printed circuit boards (PCBs), where space is limited. Through - hole packages, on the other hand, are often preferred in applications where mechanical robustness and ease of manual assembly are important.
## 3. Applications
### 3.1 Power Supplies
- **Switch - Mode Power Supplies (SMPS)**: In SMPS, the STP80NF12 MOSFETs are used as switching elements. Their low on - resistance and high - speed switching capabilities allow for efficient conversion of electrical power from one voltage level to another. They can handle high currents and voltages, making them suitable for both low - power and high - power SMPS designs.
- **Un
Images for reference

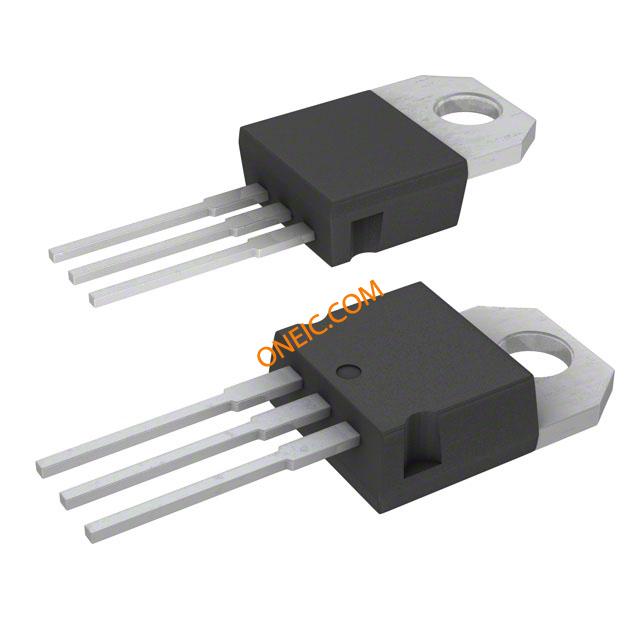

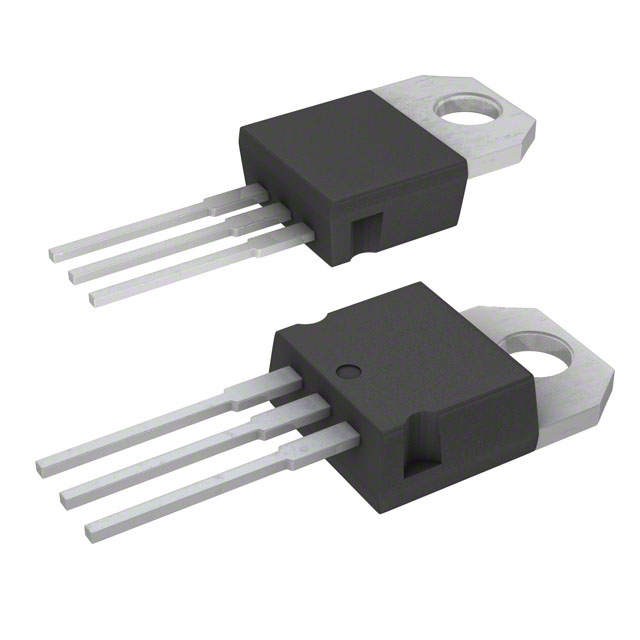

TO-220-3, TO-220AB
