STM8L051F3P6
Ultra-low power 8-bit microcontrollers with 8KB flash memory
Manufacturer： stm
series introduction
# Introduction to STM8L051F3P6 Product Series
## 1. Overview
The STM8L051F3P6 is a member of the STM8L ultra-low-power microcontroller family developed by STMicroelectronics. This product series is designed to meet the requirements of a wide range of applications that demand high performance, low power consumption, and cost - effectiveness. With its rich set of features and capabilities, the STM8L051F3P6 is suitable for various industries, including consumer electronics, industrial control, and Internet of Things (IoT) devices.
## 2. Key Features
### 2.1 Core and Architecture
- **STM8 Core**: It is based on the STM8 8 - bit core, which offers a good balance between performance and simplicity. The core has a Harvard architecture with a 16 - bit address bus and an 8 - bit data bus, enabling efficient instruction fetch and data processing.
- **High - Speed Execution**: The STM8 core can execute instructions at a maximum clock frequency of up to 16 MHz, allowing for fast processing of tasks and real - time response in applications.
### 2.2 Memory
- **Flash Memory**: The STM8L051F3P6 is equipped with 32 KB of in - system programmable Flash memory. This non - volatile memory is used to store the application code, and it supports in - system programming (ISP) and in - application programming (IAP), which means that the code can be updated even after the device is deployed in the field.
- **RAM**: It has 2 KB of random - access memory (RAM), which is used for storing variables, data buffers, and intermediate results during program execution. The sufficient amount of RAM ensures smooth operation of the application.
### 2.3 Low - Power Modes
- **Ultra - Low - Power Consumption**: One of the most significant features of the STM8L051F3P6 is its ultra - low - power design. It offers multiple low - power modes, including active halt, wait, and stop modes. In stop mode, the device can consume as little as a few microamperes, making it ideal for battery - powered applications where power efficiency is crucial.
- **Flexible Power Management**: The microcontroller allows developers to configure the power consumption according to the application requirements. For example, the clock frequency can be adjusted, and peripheral modules can be selectively enabled or disabled to optimize power usage.
### 2.4 Peripherals
#### 2.4.1 General - Purpose Input/Output (GPIO)
- The STM8L051F3P6 has a total of 28 GPIO pins, which can be configured as either input or output. These pins can be used for various purposes, such as connecting sensors, actuators, and external devices. The GPIO pins also support interrupt functionality, allowing the microcontroller to respond quickly to external events.
#### 2.4.2 Timers
- **General - Purpose Timers**: It includes several general - purpose timers, such as TIM2 and TIM3. These timers can be used for tasks like generating PWM signals for motor control, measuring time intervals, and implementing periodic tasks.
- **Real - Time Clock (RTC)**: The built - in RTC provides a reliable timekeeping function. It can operate in low - power mode and can be used for applications that require accurate time measurement, such as data logging and scheduling.
#### 2.4.3 Communication Interfaces
- **Universal Synchronous/Asynchronous Receiver/Transmitter (USART)**: The USART interface allows the microcontroller to communicate with other devices using serial communication protocols, such as RS - 232
Images for reference

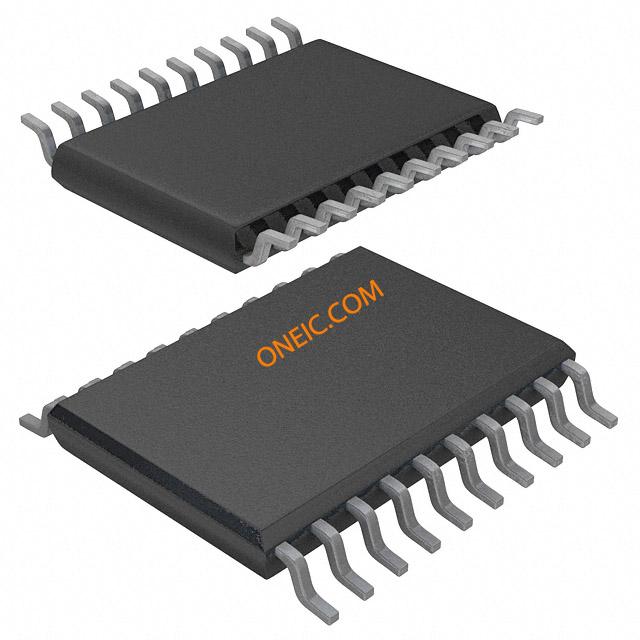

STM8LxxxF3P6
