STM8A-DISCOVERY

Automotive microcontroller discovery kits with STM8A series MCUs

Manufacturer: stm

series introduction

# Introduction to the STM8A - DISCOVERY Product Series

## 1. Overview
The STM8A - DISCOVERY product series is a remarkable offering from STMicroelectronics, designed to provide an accessible and comprehensive platform for developers to explore and experiment with the capabilities of the STM8A microcontroller family. This series serves as an ideal starting point for both beginners in the embedded systems field and experienced engineers looking to quickly prototype and develop applications.

## 2. Key Components and Hardware Features

### 2.1 Microcontroller
At the heart of the STM8A - DISCOVERY board is an STM8A microcontroller. These microcontrollers are based on the 8 - bit STM8 core, which offers a good balance between performance and power consumption. They come with a range of on - chip peripherals such as timers, analog - to - digital converters (ADCs), serial communication interfaces (UART, SPI, I²C), and general - purpose input/output (GPIO) pins. This rich set of peripherals enables developers to build a wide variety of applications, from simple sensor - based systems to more complex control and monitoring applications.

### 2.2 On - Board Sensors and Actuators
The STM8A - DISCOVERY board is equipped with several on - board sensors and actuators, which enhance its functionality and provide real - world application scenarios for developers. For example, it may include an accelerometer, which can be used to detect motion and orientation. This is useful in applications such as gaming controllers, wearable devices, and industrial monitoring systems. Additionally, there are often LEDs and push - buttons on the board. The LEDs can be used to provide visual feedback, while the push - buttons can serve as user input devices, allowing for interactive applications.

### 2.3 Power Management
The board features efficient power management capabilities. It can be powered via a USB connection, which is convenient for development and testing. The power management circuitry ensures stable power supply to the microcontroller and other components on the board, protecting them from voltage fluctuations and ensuring reliable operation.

### 2.4 Debugging and Programming Interface
The STM8A - DISCOVERY board comes with an integrated debugging and programming interface. This allows developers to easily load their code onto the microcontroller and debug it in real - time. The interface provides features such as single - stepping, breakpoints, and variable monitoring, which are essential for efficient software development.

## 3. Software Support

### 3.1 Development Environment
The STM8A - DISCOVERY series is supported by a comprehensive development environment. STMicroelectronics provides the ST Visual Develop (STVD) integrated development environment (IDE), which is specifically designed for the STM8 microcontroller family. This IDE offers a user - friendly interface for writing, compiling, and debugging code. It also supports a wide range of programming languages, including C and assembly language.

### 3.2 Software Libraries
To simplify the development process, STMicroelectronics offers a set of software libraries for the STM8A microcontrollers. These libraries provide pre - written code for common functions such as initializing peripherals, handling interrupts, and communicating with sensors and actuators. Developers can use these libraries as a starting point for their projects, saving time and effort in writing low - level code.

### 3.3 Example Projects
The STM8A - DISCOVERY series comes with a collection of example projects. These projects demonstrate how to use different features of the board and the microcontroller. They cover a wide range of applications, from basic LED blinking to more advanced sensor - based applications. Developers can use these examples as a reference to understand the programming concepts and techniques required to build their own applications.

## 4. Applications

### 4.1 Home Automation

Images for reference

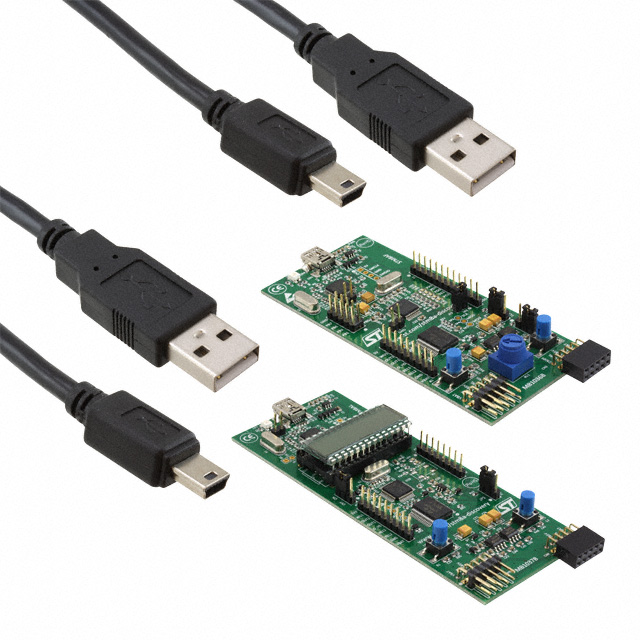

STM8A-DISCOVERY
