STM32F302RB
32-bit ARM Cortex-M4 microcontrollers with 72MHz speed and 128KB flash memory
Manufacturer： stm
series introduction
# Introduction to the STM32F302RB Product Series
## 1. Overview
The STM32F302RB is part of STMicroelectronics' STM32F3 series of 32 - bit microcontrollers based on the ARM® Cortex® - M4 core. These microcontrollers are designed to offer a high - performance, cost - effective, and energy - efficient solution for a wide range of applications. The STM32F302RB, in particular, combines advanced processing capabilities with a rich set of integrated peripherals, making it suitable for various industrial, consumer, and automotive applications.
## 2. Core and Architecture
### ARM Cortex - M4 Core
- **Processing Power**: The ARM Cortex - M4 core at the heart of the STM32F302RB provides a high - performance 32 - bit processing engine. It features a 1.25 DMIPS/MHz performance, which means it can execute a large number of instructions per clock cycle, enabling fast and efficient processing of complex algorithms.
- **Floating - Point Unit (FPU)**: The integrated single - precision FPU allows for efficient handling of floating - point arithmetic operations. This is crucial for applications such as signal processing, motor control, and sensor data analysis, where floating - point calculations are often required.
### Memory Architecture
- **Flash Memory**: The STM32F302RB is equipped with 128 KB of embedded Flash memory. This non - volatile memory is used to store the program code, allowing the microcontroller to retain its functionality even when the power is turned off. The Flash memory has a high - speed access time, which enables fast code execution.
- **SRAM**: It also has 32 KB of static random - access memory (SRAM). SRAM is used for storing data during program execution, such as variables, buffers, and stack space. The relatively large SRAM size allows for the efficient handling of data - intensive applications.
## 3. Peripherals
### Communication Interfaces
- **USART**: The microcontroller features multiple Universal Synchronous/Asynchronous Receiver/Transmitter (USART) interfaces. These interfaces support both synchronous and asynchronous communication modes, making them suitable for a wide range of communication protocols, such as RS - 232, RS - 485, and Modbus. They can be used for serial communication with other devices, such as sensors, displays, and communication modules.
- **SPI**: The Serial Peripheral Interface (SPI) is a high - speed synchronous serial communication interface. It allows for fast data transfer between the microcontroller and external devices, such as flash memories, sensors, and display drivers. The STM32F302RB supports multiple SPI interfaces, enabling simultaneous communication with multiple devices.
- **I²C**: The Inter - Integrated Circuit (I²C) interface is a widely used serial communication protocol for connecting low - speed devices. It is commonly used for communication with sensors, EEPROMs, and other integrated circuits. The I²C interface on the STM32F302RB supports both master and slave modes, providing flexibility in system design.
### Analog Peripherals
- **ADC**: The microcontroller is equipped with a 12 - bit Analog - to - Digital Converter (ADC). The ADC can sample analog signals with a resolution of up to 12 bits, allowing for accurate measurement of analog quantities, such as voltage, current, and temperature. It supports multiple input channels, enabling the simultaneous measurement of multiple analog signals.
- **DAC**: A 12 - bit Digital - to - Analog Converter (DAC) is also integrated into the STM32F302RB. The DAC can
Images for reference

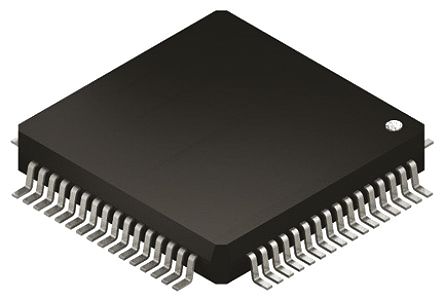

Image Preview
