STM32F217VET6
32-bit ARM Cortex-M3 microcontrollers with 512KB flash memory
Manufacturer： stm
series introduction
# Introduction to STM32F217VET6 Product Series
## 1. Overview
The STM32F217VET6 is a member of the STM32F2 series of microcontrollers developed by STMicroelectronics. These microcontrollers are based on the ARM Cortex - M33 core, which offers a high - performance, energy - efficient solution for a wide range of applications. The STM32F217VET6 combines advanced processing capabilities, rich peripheral interfaces, and a large amount of on - chip memory, making it suitable for complex embedded systems.
## 2. Key Features
### 2.1 Core and Performance
- **ARM Cortex - M3 Core**: The ARM Cortex - M3 core provides a high - performance 32 - bit processing platform with a Harvard architecture and a Thumb - 2 instruction set. It can achieve a maximum operating frequency of up to 120 MHz, enabling fast execution of instructions and efficient data processing.
- **High - Speed Processing**: With a high clock speed and efficient instruction set, the STM32F217VET6 can handle complex algorithms and real - time tasks, such as motor control, signal processing, and communication protocol handling.
### 2.2 Memory
- **Flash Memory**: It is equipped with 512 KB of on - chip flash memory. This non - volatile memory is used to store the program code, allowing developers to write and store their applications directly on the microcontroller. The large flash memory capacity is suitable for storing large - scale programs and data.
- **SRAM**: The microcontroller has 128 KB of static random - access memory (SRAM). SRAM provides fast access to data during program execution, which is crucial for storing variables, buffers, and intermediate results. It helps in improving the overall performance of the system by reducing the access time to data.
### 2.3 Peripherals
#### 2.3.1 Communication Interfaces
- **USB**: The STM32F217VET6 features a USB 2.0 full - speed interface. This allows the microcontroller to communicate with other USB - enabled devices, such as computers, smartphones, and USB peripherals. It can be used for data transfer, device configuration, and power management.
- **Ethernet**: An integrated Ethernet MAC (Media Access Controller) is available, supporting the Ethernet protocol. This enables the microcontroller to connect to local area networks (LANs) and communicate with other networked devices. It is suitable for applications such as industrial networking, home automation, and Internet of Things (IoT) devices.
- **CAN**: The Controller Area Network (CAN) interface is provided, which is widely used in automotive and industrial applications. CAN allows reliable communication between multiple nodes in a network, with features such as high - speed data transfer, error detection, and message prioritization.
- **UART, SPI, and I2C**: Multiple Universal Asynchronous Receiver - Transmitter (UART), Serial Peripheral Interface (SPI), and Inter - Integrated Circuit (I2C) interfaces are available. These interfaces are commonly used for communication with sensors, actuators, and other external devices.
#### 2.3.2 Timers
- **Advanced - Control Timers**: There are advanced - control timers that can be used for motor control applications. These timers can generate precise pulse - width modulation (PWM) signals, which are essential for controlling the speed and direction of motors.
- **General - Purpose Timers**: General - purpose timers are available for various timing and counting tasks, such as event counting, time measurement, and generating periodic interrupts.
#### 2.3.3 Analog - to - Digital Converters (AD
Images for reference

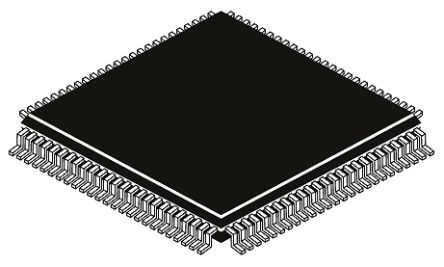

100-LQFP
