STM32F217IGT6
32-bit ARM Cortex M3 microcontrollers with 1024KB flash memory
Manufacturer： stm
series introduction
# Introduction to the STM32F217IGT6 Product Series
## 1. Overview
The STM32F217IGT6 belongs to the STM32F2 series of microcontrollers developed by STMicroelectronics. This series is renowned for its high - performance, rich feature set, and excellent power - efficiency, making it suitable for a wide range of applications in various industries.
## 2. Core and Architecture
### 2.1 ARM Cortex - M3 Core
The STM32F217IGT6 is built around the ARM Cortex - M3 32 - bit RISC core. This core offers a high - performance processing engine with a Harvard architecture, which means it has separate instruction and data buses. This allows for simultaneous access to instructions and data, significantly improving the execution speed. The Cortex - M3 core also features a Thumb - 2 instruction set, which combines the code density of 16 - bit Thumb instructions with the performance of 32 - bit ARM instructions, enabling efficient code execution and reduced memory requirements.
### 2.2 Memory Protection Unit (MPU)
It is equipped with an MPU that provides memory protection and access control. This feature is crucial for enhancing system security and reliability. The MPU allows the developer to define regions of memory with different access permissions, such as read - only, read - write, or no access. This helps prevent unauthorized access to critical system resources and protects the system from software bugs or malicious attacks.
## 3. Memory
### 3.1 Flash Memory
The STM32F217IGT6 comes with 1 MB of on - chip Flash memory. Flash memory is non - volatile, which means it retains its data even when the power is turned off. This large amount of Flash memory can be used to store the application code, bootloader, and other data that needs to be preserved. The Flash memory has a high - speed access time, enabling fast code execution and reducing the overall system latency.
### 3.2 SRAM
It has 128 KB of on - chip Static Random - Access Memory (SRAM). SRAM is used for storing variables, data buffers, and the stack during program execution. The large SRAM capacity allows for the efficient handling of complex algorithms and data processing tasks. The fast access time of SRAM ensures that the CPU can quickly read and write data, improving the overall system performance.
## 4. Peripherals
### 4.1 Communication Peripherals
- **USB OTG**: The device supports USB On - The - Go (OTG) functionality, which allows it to act as both a USB host and a USB device. This enables seamless communication with a wide range of USB - enabled devices, such as keyboards, mice, and external storage devices.
- **Ethernet MAC**: It is equipped with an Ethernet Media Access Controller (MAC), which provides a high - speed network interface. This allows the microcontroller to connect to local area networks (LANs) and communicate with other networked devices using the Ethernet protocol.
- **CAN**: The Controller Area Network (CAN) interface is available, which is widely used in automotive and industrial applications for reliable communication between different electronic control units (ECUs). The CAN interface supports both standard and extended frame formats and has a high - speed data transfer rate.
- **SPI, I2C, and UART**: These common serial communication interfaces are also included. The Serial Peripheral Interface (SPI) is used for high - speed communication between the microcontroller and external devices, such as sensors and displays. The Inter - Integrated Circuit (I2C) interface is suitable for low - speed communication with multiple devices on a shared bus. The Universal Asynchronous Receiver/Transmitter
Images for reference

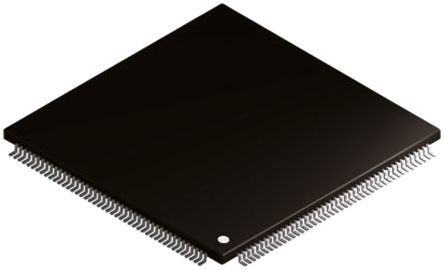

STM32-176LQFP
