STM32F207IET6
32-bit ARM Cortex M3 microcontrollers with LQFP176 packaging
Manufacturer： stm
series introduction
# Introduction to the STM32F207IET6 Product Series
## 1. Overview
The STM32F207IET6 is a member of the highly popular STM32 microcontroller family developed by STMicroelectronics. This product series is designed to offer a powerful, flexible, and cost - effective solution for a wide range of embedded applications. With its advanced features and high - performance capabilities, it has become a go - to choice for engineers and developers in various industries.
## 2. Core and Architecture
### ARM Cortex - M3 Core
The STM32F207IET6 is based on the ARM Cortex - M3 32 - bit RISC core. This core provides a high level of performance with a maximum operating frequency of up to 120 MHz. The ARM Cortex - M3 architecture features a Harvard architecture with separate instruction and data buses, which allows for efficient data transfer and execution of instructions. It also includes a nested vectored interrupt controller (NVIC) that can handle up to 43 external interrupts, enabling real - time response to various events in the system.
### Memory Organization
- **Flash Memory**: It comes with 512 KB of embedded Flash memory. This non - volatile memory is used to store the program code. The Flash memory has a high - speed access time, which ensures fast execution of the application code. It also supports in - system programming (ISP) and in - application programming (IAP), allowing developers to update the firmware easily without the need for external programming equipment.
- **SRAM**: The microcontroller is equipped with 128 KB of static random - access memory (SRAM). SRAM is used for storing variables, data buffers, and the stack during program execution. The large SRAM size enables the implementation of complex algorithms and data - intensive applications.
## 3. Peripherals
### Communication Interfaces
- **USB**: It features a full - speed USB 2.0 device/host/OTG controller. This allows the microcontroller to communicate with other USB devices, such as computers, smartphones, or USB - enabled sensors. The USB interface can be used for data transfer, device configuration, and power management.
- **Ethernet**: The STM32F207IET6 includes an Ethernet MAC (Media Access Controller) with a dedicated DMA controller. This enables the microcontroller to connect to local area networks (LANs) and communicate using the Ethernet protocol. It supports various Ethernet standards, such as IEEE 802.3, and can be used for applications like network - based monitoring, remote control, and data logging.
- **UART/SPI/I2C**: Multiple universal asynchronous receiver - transmitter (UART), serial peripheral interface (SPI), and inter - integrated circuit (I2C) interfaces are available. These interfaces are commonly used for communication with external devices such as sensors, displays, and other microcontrollers. UART is suitable for asynchronous serial communication, SPI provides high - speed synchronous communication, and I2C is used for multi - master/multi - slave communication with a simple two - wire interface.
### Timers
- **General - Purpose Timers**: There are several general - purpose timers available, which can be used for a variety of applications such as pulse width modulation (PWM) generation, frequency measurement, and event counting. PWM is widely used in motor control applications to control the speed and direction of motors.
- **Advanced - Control Timers**: The advanced - control timers offer additional features such as complementary PWM outputs with dead - time insertion, which is essential for driving three - phase motors and other power - electronic applications.
### Analog - to - Digital Converters (ADCs)
The microcontroller is equipped with
Images for reference

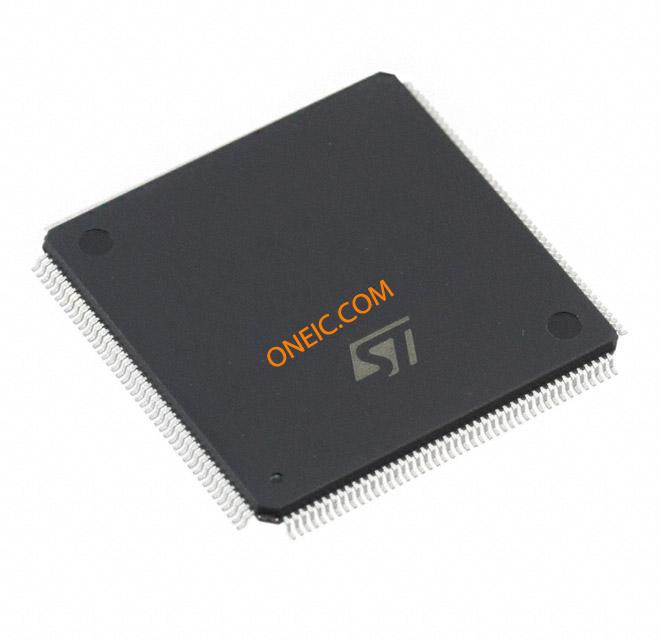

STM32-176LQFP
Image Preview

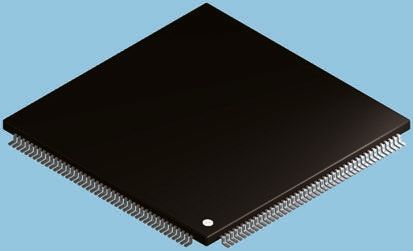

Image Preview
