STM32F107VCT
32-bit ARM Cortex M3 microcontrollers with 256KB flash memory
Manufacturer： stm
series introduction
# Introduction to the STM32F107VCT Product Series
## 1. Overview
The STM32F107VCT belongs to the STM32F1 series of microcontrollers developed by STMicroelectronics. This series is based on the ARM Cortex - M3 32 - bit RISC core, which combines high performance, low power consumption, and rich peripheral features. The STM32F107VCT is specifically designed to meet the requirements of a wide range of applications, from industrial control to consumer electronics.
## 2. Key Features
### 2.1 Core and Performance
- **ARM Cortex - M3 Core**: The ARM Cortex - M3 core provides a high - performance processing platform with a 32 - bit architecture. It has a Harvard architecture with separate instruction and data buses, enabling efficient data transfer and execution. The core supports a wide range of instructions, including Thumb - 2 instruction set, which offers a good balance between code density and performance.
- **High - Speed Processing**: The STM32F107VCT can operate at a maximum frequency of 72 MHz, allowing it to handle complex tasks quickly. It has a single - cycle multiplier and hardware division unit, which significantly speeds up mathematical operations.
### 2.2 Memory
- **Flash Memory**: It is equipped with 256 KB of on - chip flash memory. Flash memory is non - volatile, which means it can retain data even when the power is turned off. This large - capacity flash memory can store the program code, allowing developers to implement complex algorithms and functions.
- **SRAM**: The microcontroller has 64 KB of on - chip static random - access memory (SRAM). SRAM provides fast access to data, which is crucial for storing variables, buffers, and intermediate results during program execution.
### 2.3 Peripherals
#### 2.3.1 Communication Interfaces
- **Ethernet MAC**: The STM32F107VCT features an Ethernet Media Access Controller (MAC) with support for 10/100 Mbps Ethernet. This makes it suitable for network - connected applications such as industrial automation, smart home systems, and Internet of Things (IoT) devices. It can communicate with other network devices using standard Ethernet protocols, enabling data transfer and remote control.
- **USB OTG**: It includes a Universal Serial Bus On - The - Go (USB OTG) interface. USB OTG allows the microcontroller to act as both a USB host and a USB device. This feature is useful for connecting to a variety of USB - enabled devices, such as keyboards, mice, and external storage devices.
- **CAN Interface**: The Controller Area Network (CAN) interface is available on the STM32F107VCT. CAN is a widely used communication protocol in the automotive and industrial sectors for reliable data transmission between multiple nodes. It supports high - speed data transfer and is resistant to electromagnetic interference.
- **UART, SPI, and I2C**: The microcontroller also provides multiple Universal Asynchronous Receiver - Transmitter (UART), Serial Peripheral Interface (SPI), and Inter - Integrated Circuit (I2C) interfaces. These interfaces are commonly used for communication with sensors, actuators, and other external devices.
#### 2.3.2 Timers
- **Multiple Timers**: It has several general - purpose timers and advanced - control timers. General - purpose timers can be used for tasks such as generating PWM signals for motor control, measuring time intervals, and counting events. Advanced - control timers offer more features, such as complementary PWM outputs for driving three - phase motors.
#### 2.3.3 Analog - to - Digital Converter (ADC
Images for reference

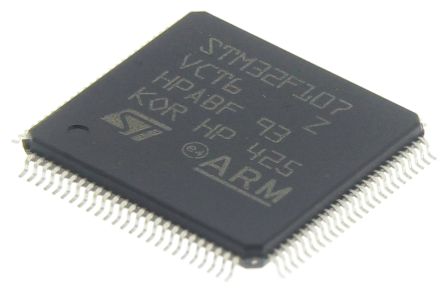

100-LQFP
