STM32F103VFT7
32-bit ARM Cortex-M3 microcontrollers with 768KB flash, 100-pin LQFP
Manufacturer： stm
series introduction
# Introduction to the STM32F103VFT7 Product Series
## 1. Overview
The STM32F103VFT7 belongs to the STM32F103 Value Line series of microcontrollers developed by STMicroelectronics. These microcontrollers are based on the ARM Cortex - M3 32 - bit RISC core, offering a powerful, cost - effective, and energy - efficient solution for a wide range of embedded applications.
## 2. Key Features
### 2.1 Core and Performance
- **ARM Cortex - M3 Core**: The ARM Cortex - M3 core provides high - performance processing capabilities with a Harvard architecture and a 3 - stage pipeline. It can execute instructions at a maximum frequency of up to 72 MHz, enabling fast data processing and real - time response for various applications.
- **Instruction Set**: It supports the Thumb - 2 instruction set, which combines the code density of the Thumb instruction set with the performance of the ARM instruction set. This allows for efficient code execution and reduced memory usage.
### 2.2 Memory
- **Flash Memory**: The STM32F103VFT7 is equipped with 1 MB of embedded Flash memory. This large - capacity Flash memory can store the application code, allowing for the implementation of complex algorithms and functions. It also supports in - system programming (ISP) and in - application programming (IAP), which means the code can be updated easily even after the device is deployed.
- **SRAM**: It has 96 KB of static random - access memory (SRAM). The SRAM is used for storing variables, data buffers, and the stack during program execution. The sufficient SRAM size ensures smooth operation of the application, especially when dealing with large amounts of data.
### 2.3 Peripherals
#### 2.3.1 Communication Peripherals
- **USARTs (Universal Synchronous/Asynchronous Receiver/Transmitter)**: There are multiple USART interfaces available, which can be used for serial communication with other devices such as sensors, displays, or other microcontrollers. They support various communication modes, including asynchronous, synchronous, and single - wire modes, and can operate at different baud rates.
- **SPI (Serial Peripheral Interface)**: The SPI interface provides a high - speed serial communication protocol for connecting to external devices such as flash memories, sensors, and LCD controllers. It supports full - duplex communication and can achieve high data transfer rates.
- **I²C (Inter - Integrated Circuit)**: The I²C interface is a multi - master, multi - slave serial communication protocol. It is commonly used for connecting low - speed devices such as EEPROMs, sensors, and real - time clocks. The STM32F103VFT7's I²C interface supports standard, fast, and fast - plus modes.
#### 2.3.2 Timers
- **General - Purpose Timers**: There are several general - purpose timers available, which can be used for a variety of applications such as PWM (Pulse Width Modulation) generation, frequency measurement, and event counting. PWM signals generated by these timers can be used to control motors, LEDs, and other devices.
- **Advanced - Control Timers**: The advanced - control timers offer more features and higher precision compared to general - purpose timers. They are often used in applications that require precise control of motor speed and position, such as servo motor control.
#### 2.3.3 Analog - to - Digital Converter (ADC)
- The STM32F103VFT7 is equipped with a 12 - bit ADC. It can convert analog signals from external sensors (such as temperature sensors, pressure sensors
Images for reference

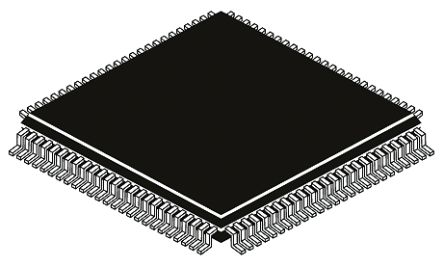

100-LQFP
