STM32F103VDH6
32-bit ARM Cortex M3 microcontrollers with 384KB flash memory
Manufacturer： stm
series introduction
# Introduction to the STM32F103VDH6 Product Series
## 1. Overview
The STM32F103VDH6 belongs to the STM32F103 Value Line series of microcontrollers developed by STMicroelectronics. These microcontrollers are built on the high - performance ARM® Cortex® - M3 32 - bit RISC core, offering a perfect balance of power, performance, and cost - effectiveness. They are widely used in a variety of applications, from industrial control to consumer electronics, due to their rich set of features and excellent reliability.
## 2. Key Features
### 2.1 Core and Performance
- **ARM Cortex - M3 Core**: The ARM Cortex - M3 core provides a high - performance processing platform with a Harvard architecture and a 3 - stage pipeline. It can execute complex instructions efficiently, with a maximum operating frequency of up to 72 MHz. This allows the STM32F103VDH6 to handle real - time tasks and data processing requirements in a timely manner.
- **Memory and Bus Architecture**: It is equipped with 256 KB of Flash memory for program storage and 64 KB of SRAM for data storage. The advanced bus architecture ensures fast data transfer between the core, memory, and peripherals, enabling smooth operation of the system.
### 2.2 Peripherals
- **GPIO (General - Purpose Input/Output)**: The STM32F103VDH6 has a large number of GPIO pins, which can be configured as input or output according to the specific application requirements. These pins can be used for tasks such as sensor data acquisition, control signal output, and communication interface connection.
- **Timers**: It includes multiple timers, such as general - purpose timers, advanced - control timers, and basic timers. These timers can be used for a variety of functions, including PWM (Pulse Width Modulation) generation for motor control, frequency measurement, and time - based event scheduling.
- **Communication Interfaces**:
- **UART (Universal Asynchronous Receiver/Transmitter)**: Multiple UART interfaces are available for asynchronous serial communication, which is commonly used for communication with other devices such as sensors, displays, and modems.
- **SPI (Serial Peripheral Interface)**: The SPI interface provides a high - speed synchronous serial communication method, suitable for connecting to external devices such as flash memories, sensors, and LCD controllers.
- **I2C (Inter - Integrated Circuit)**: The I2C interface is used for short - distance, multi - master, multi - slave communication, which is often used to connect to low - speed devices such as EEPROMs, temperature sensors, and accelerometers.
### 2.3 Analog - to - Digital and Digital - to - Analog Conversion
- **ADC (Analog - to - Digital Converter)**: The STM32F103VDH6 is equipped with a 12 - bit ADC, which can convert analog signals from sensors or other analog sources into digital values. It has multiple channels, allowing simultaneous or sequential sampling of multiple analog inputs.
- **DAC (Digital - to - Analog Converter)**: A 12 - bit DAC is available, which can convert digital data into analog signals. This is useful for applications such as audio signal generation and analog control.
### 2.4 Power Management
- **Low - Power Modes**: The microcontroller supports multiple low - power modes, including Sleep mode, Stop mode, and Standby mode. These modes help to reduce power consumption when the system is idle or in a low - activity state, making it suitable for battery - powered applications.
## 3. Development Tools and Ecosystem
- **
Images for reference

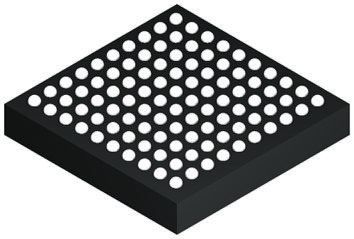

100-LFBGA
