SST39VF040-70-4I-NHE

4Mbit parallel flash memory for industrial applications

Manufacturer: ['sst', 'microchip', 'silicon-storage-technology']

series introduction

# Introduction to the SST39VF040 - 70 - 4I - NHE Product Series

## 1. Overview
The SST39VF040 - 70 - 4I - NHE is a high - performance flash memory product series that offers reliable and efficient data storage solutions for a wide range of applications. Developed by a leading semiconductor manufacturer, this series combines advanced technology with robust design to meet the demanding requirements of modern electronic systems.

## 2. Key Features

### 2.1 Memory Capacity
The SST39VF040 - 70 - 4I - NHE features a memory capacity of 4 megabits (512K x 8). This ample storage space makes it suitable for storing various types of data, including program code, configuration data, and user - generated content. Whether it's for small - scale embedded systems or more complex applications, the 4 - megabit capacity provides sufficient room for data storage needs.

### 2.2 Fast Access Time
With an access time of 70 nanoseconds, this flash memory series offers rapid data retrieval. The fast access time is crucial for applications where real - time data processing is required. For example, in microcontroller - based systems, quick access to program code stored in the flash memory ensures smooth and efficient operation, reducing system latency and improving overall performance.

### 2.3 Low Power Consumption
The SST39VF040 - 70 - 4I - NHE is designed with power efficiency in mind. It consumes relatively low power during both active and standby modes. This is especially important for battery - powered devices such as portable medical equipment, handheld gaming consoles, and IoT sensors. By minimizing power consumption, the product helps to extend the battery life of these devices, enhancing their usability and reducing the need for frequent battery replacements.

### 2.4 High - Quality Interface
It comes with a 4 - wire interface, which simplifies the connection with other components in the system. The 4 - wire interface provides a reliable and efficient communication channel between the flash memory and the host device. This interface is widely supported by many microcontrollers and other integrated circuits, making it easy to integrate the SST39VF040 - 70 - 4I - NHE into existing or new electronic designs.

### 2.5 Endurance and Data Retention
The flash memory cells in this series are designed to withstand a large number of program/erase cycles. It offers a high endurance rating, typically capable of performing up to 100,000 program/erase cycles. Additionally, it has excellent data retention capabilities, ensuring that the stored data remains intact for an extended period, even in the absence of power. This makes it suitable for applications where data integrity is of utmost importance, such as industrial control systems and automotive electronics.

## 3. Package and Physical Characteristics

### 3.1 Package Type
The SST39VF040 - 70 - 4I - NHE is available in a specific package type that is designed for easy handling and mounting on printed circuit boards (PCBs). The package provides mechanical protection to the internal semiconductor die and also facilitates electrical connections between the device and the PCB. The package is designed to meet industry - standard dimensions, ensuring compatibility with common PCB manufacturing processes.

### 3.2 Operating Temperature Range
This product series is designed to operate within a wide temperature range. It can typically function reliably in temperatures ranging from - 40°C to + 85°C. This wide operating temperature range makes it suitable for use in various environmental conditions, including industrial settings, automotive applications, and outdoor electronic devices.

## 4. Applications

### 4.1 Embedded Systems
In embedded systems,

Images for reference

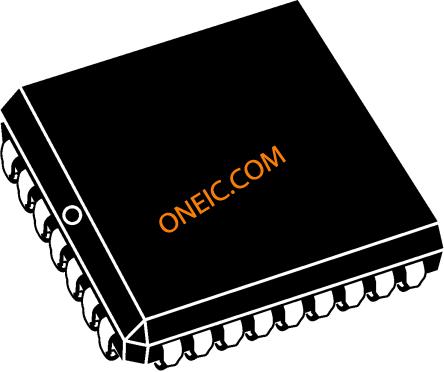

32-PLCC

32-PLCC

Image Preview

Image Preview

Image Preview

Image Preview
