SST39VF040-70-4C-WHE
4Mbit multi-purpose flash memory with 70ns speed, 32-pin TSOP package
Manufacturer： ['sst', 'microchip', 'silicon-storage-technology']
series introduction
# Introduction to the SST39VF040 - 70 - 4C - WHE Product Series
## 1. Overview
The SST39VF040 - 70 - 4C - WHE is a high - performance Flash memory product series that offers reliable and efficient data storage solutions for a wide range of applications. Manufactured with advanced semiconductor technology, this series combines high - speed operation, large storage capacity, and excellent endurance, making it a popular choice in the electronics industry.
## 2. Key Features
### 2.1 Storage Capacity
The SST39VF040 - 70 - 4C - WHE provides a storage capacity of 4 megabits (512 kilobytes). This ample storage space allows it to store various types of data, such as program code, configuration data, and user - generated content. It is suitable for applications that require the storage of medium - sized data sets, including embedded systems, consumer electronics, and industrial control systems.
### 2.2 High - Speed Operation
With a maximum access time of 70 nanoseconds, this Flash memory series offers fast data retrieval and writing capabilities. The high - speed operation enables quick system boot - up times and smooth execution of programs. It can keep up with the processing speed of modern microcontrollers and processors, reducing the overall system latency and improving the user experience.
### 2.3 Low - Voltage Operation
The SST39VF040 - 70 - 4C - WHE is designed to operate at low voltages, typically in the range of 2.7V to 3.6V. This low - voltage requirement makes it energy - efficient, which is crucial for battery - powered devices such as portable media players, handheld game consoles, and wireless sensors. By consuming less power, the product helps to extend the battery life of these devices.
### 2.4 Endurance and Data Retention
This Flash memory series has a high endurance rating, with the ability to withstand up to 100,000 program/erase cycles. This means that it can be repeatedly programmed and erased without significant degradation in performance. Additionally, it offers excellent data retention, with the ability to retain data for up to 10 years at normal operating temperatures. These features ensure the long - term reliability of the stored data.
### 2.5 Industry - Standard Interface
The SST39VF040 - 70 - 4C - WHE uses an industry - standard parallel interface, which makes it easy to integrate into existing systems. The parallel interface allows for high - speed data transfer between the Flash memory and the host system, enabling seamless communication and efficient data handling.
## 3. Package and Pin Configuration
The SST39VF040 - 70 - 4C - WHE is available in a 32 - pin plastic small - outline package (SOIC). This package is compact and easy to mount on printed circuit boards (PCBs), making it suitable for space - constrained applications. The pin configuration of the package is designed to provide easy access to the various functions of the Flash memory, such as data input/output, control signals, and power supply.
## 4. Applications
### 4.1 Embedded Systems
In embedded systems, the SST39VF040 - 70 - 4C - WHE can be used to store the firmware and application code of microcontrollers and microprocessors. Its high - speed operation and large storage capacity ensure that the system can boot up quickly and run complex programs efficiently. It is commonly used in industrial automation, automotive electronics, and home appliances.
### 4.2 Consumer Electronics
Consumer electronics devices such as digital cameras, MP3 players, and smartwatches can
Images for reference

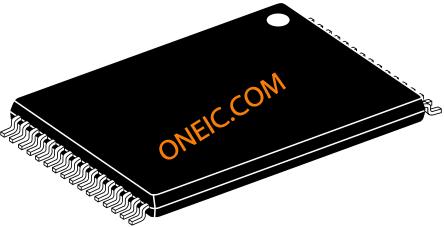

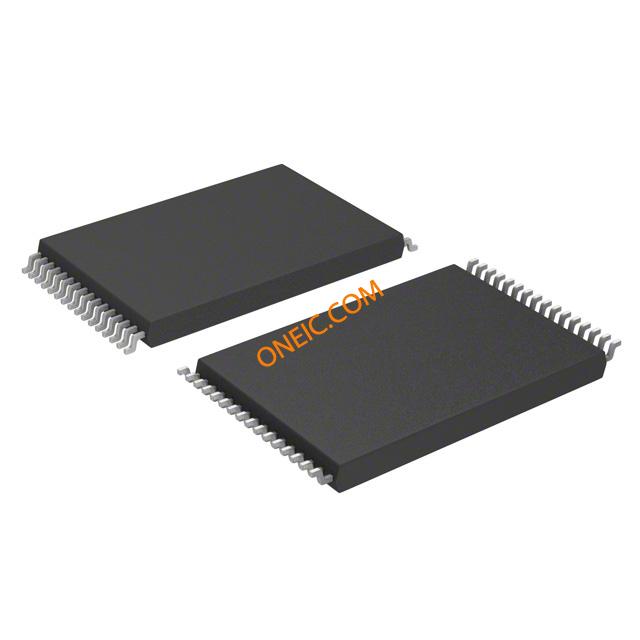

32-TSOP
