SST25VF016B-50-4C

16Mbit SPI serial flash memory, 50MHz, 2.7-3.6V, various packages

Manufacturer: ['sst', 'microchip']

series introduction

# SST25VF016B - 50 - 4C Product Series Introduction

## 1. Overview
The SST25VF016B - 50 - 4C product series belongs to the realm of non - volatile memory solutions. These devices are specifically designed to meet the diverse storage requirements of modern electronic systems, offering a reliable and efficient way to store data even when the power is turned off. With a focus on high - performance, low - power consumption, and compatibility, this series has found its place in a wide range of applications.

## 2. Key Features

### 2.1 Memory Capacity
The SST25VF016B - 50 - 4C offers a memory capacity of 16 megabits (2 megabytes). This ample storage space makes it suitable for storing various types of data, such as program code, configuration settings, and user - generated content in embedded systems.

### 2.2 High - Speed Operation
Operating at a speed of 50 MHz, these memory devices can quickly read and write data. The high - speed performance ensures that the system can access the stored information in a timely manner, reducing latency and improving overall system responsiveness. This is particularly crucial in applications where real - time data processing is required.

### 2.3 4 - Wire Serial Interface
The 4 - wire serial interface (SPI - Serial Peripheral Interface) simplifies the connection between the memory device and the host microcontroller or other system components. The SPI interface is widely used in the electronics industry due to its simplicity, high - speed data transfer capabilities, and compatibility with a large number of microcontrollers. It allows for easy integration into existing system designs, reducing development time and cost.

### 2.4 Low - Power Consumption
In today's energy - conscious world, power efficiency is a critical factor. The SST25VF016B - 50 - 4C series is designed with low - power consumption in mind. It features low active and standby power modes, which helps to extend the battery life of portable devices and reduce the overall power consumption of the system. This makes it an ideal choice for battery - powered applications such as wearables, handheld devices, and IoT sensors.

### 2.5 High - Endurance and Reliability
These memory devices are built to withstand a large number of program/erase cycles. They offer high endurance, ensuring that the data stored in the memory remains reliable over an extended period. Additionally, they are designed to be resistant to environmental factors such as temperature variations, humidity, and electrical noise, which further enhances their reliability in harsh operating conditions.

## 3. Applications

### 3.1 Embedded Systems
In embedded systems, the SST25VF016B - 50 - 4C can be used to store the firmware of the microcontroller. This allows the system to boot up and run the necessary programs without relying on external storage. It can also be used to store configuration data, such as calibration values and user preferences, which can be easily accessed and modified as needed.

### 3.2 Consumer Electronics
Consumer electronics devices such as smartwatches, fitness trackers, and wireless earbuds require non - volatile memory to store user data, device settings, and application code. The low - power consumption and small form factor of the SST25VF016B - 50 - 4C make it a suitable choice for these applications, enabling longer battery life and more compact device designs.

### 3.3 Industrial Automation
In industrial automation systems, reliable data storage is essential for storing control programs, sensor data, and historical records. The high - endurance and reliability of the SST25VF016B - 50 - 4C

Images for reference

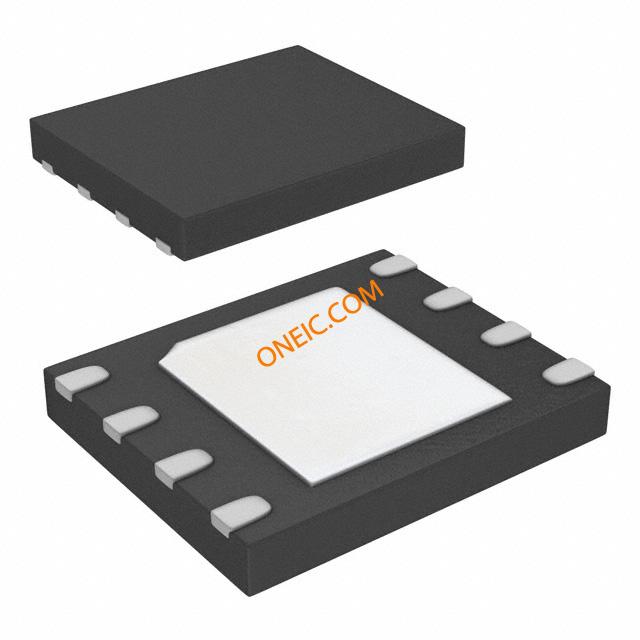

8-WSON

8-WSON

8-SOIC

8-SOIC

8-SOIC

8-SOIC

Datasheets

Partlist

SST25VF016B-50-4C-QAF
SST25VF016B-50-4C-QAF OLD SST P/N
SST25VF016B-50-4C-QAF-T
SST25VF016B-50-4C-S2AF
SST25VF016B-50-4C-S2AF-DD062
SST25VF016B-50-4C-S2AF OLD SST P/N
SST25VF016B-50-4C-S2AF-T
SST25VF016B-50-4C-S2AF-T OLD SST P/N
