SPC560PKIT100S

32-bit automotive embedded MCU development kits

Manufacturer: stm

series introduction

# Introduction to the SPC560PKIT100S Product Series

## Overview
The SPC560PKIT100S product series represents a cutting - edge offering in the realm of automotive and industrial microcontroller solutions. Developed with precision and innovation, this series is designed to meet the complex and demanding requirements of modern applications, providing high - performance, reliability, and flexibility.

## Key Features

### Microcontroller Core
- **Powerful Processor**: At the heart of the SPC560PKIT100S series lies a high - performance Power Architecture® core. This core offers a clock speed that enables rapid data processing, allowing for real - time control and efficient execution of complex algorithms. It can handle multiple tasks simultaneously, making it suitable for applications that require multitasking capabilities.
- **Instruction Set**: The microcontroller features an advanced instruction set that includes a wide range of arithmetic, logical, and control instructions. This rich instruction set enhances the overall performance of the device, enabling developers to write optimized code for various applications.

### Memory
- **Flash Memory**: The series is equipped with a generous amount of on - chip flash memory. This non - volatile memory is used to store the application code, allowing for easy reprogramming and updates. The large flash memory capacity enables the implementation of complex software algorithms and the storage of large amounts of data.
- **RAM**: A sufficient amount of random - access memory (RAM) is provided to support the real - time operation of the microcontroller. The RAM is used for temporary data storage during program execution, ensuring smooth and efficient processing.

### Peripherals
- **Communication Interfaces**: The SPC560PKIT100S series offers a comprehensive set of communication interfaces, including CAN (Controller Area Network), LIN (Local Interconnect Network), UART (Universal Asynchronous Receiver - Transmitter), SPI (Serial Peripheral Interface), and I²C (Inter - Integrated Circuit). These interfaces enable seamless communication with other devices, such as sensors, actuators, and external microcontrollers, making it ideal for automotive and industrial networking applications.
- **Timer Modules**: Multiple timer modules are integrated into the microcontroller. These timers can be used for a variety of purposes, such as generating precise time delays, measuring time intervals, and controlling PWM (Pulse Width Modulation) signals. The PWM signals are commonly used for motor control applications, allowing for accurate speed and torque control.
- **Analog - to - Digital Converters (ADCs)**: High - resolution ADCs are included in the series, enabling the conversion of analog signals from sensors into digital values. This feature is essential for applications that require the measurement of physical quantities, such as temperature, pressure, and voltage.

### Safety and Security
- **Safety Mechanisms**: The SPC560PKIT100S series incorporates a range of safety mechanisms to ensure reliable operation in safety - critical applications. These mechanisms include watchdog timers, error - correcting codes (ECC) for memory, and fault - detection circuits. The watchdog timers monitor the operation of the microcontroller and reset it if a fault is detected, preventing system failures.
- **Security Features**: To protect against unauthorized access and data tampering, the series includes security features such as encryption algorithms and secure boot mechanisms. These features ensure the integrity and confidentiality of the data stored and processed by the microcontroller.

## Development Tools
- **Integrated Development Environment (IDE)**: A user - friendly IDE is available for the SPC560PKIT100S series, providing a comprehensive set of tools for software development. The IDE includes a code editor, compiler, debugger, and simulator, allowing developers to write, test, and debug their applications efficiently.
- **Evaluation Boards**: Evaluation boards are provided to facilitate the development and testing of applications

Images for reference

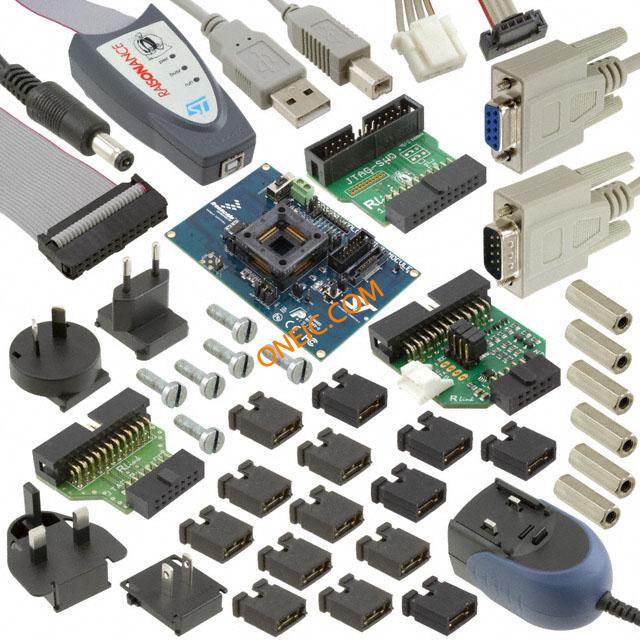

SPC560PKIT100S
