SN74AUP1G07DBVR

Low-power single buffer/driver with open-drain outputs in SOT-23 package

Manufacturer: ['rochester', 'ti']

series introduction

# SN74AUP1G07DBVR Product Series Introduction

## 1. Overview
The SN74AUP1G07DBVR belongs to Texas Instruments' family of single - gate logic devices. This product series is designed to meet the requirements of modern, high - speed, low - power electronic systems. With its compact form factor and excellent electrical characteristics, it is a popular choice for a wide range of applications in various industries.

## 2. Key Features

### 2.1 Low Power Consumption
One of the most significant features of the SN74AUP1G07DBVR is its extremely low power consumption. It operates at a supply voltage range of 0.8V to 3.6V, which makes it suitable for battery - powered devices. The low power operation helps to extend the battery life of portable electronics such as smartphones, tablets, and wearable devices. Additionally, the reduced power dissipation also contributes to lower heat generation, enhancing the overall reliability of the system.

### 2.2 High - Speed Performance
Despite its low power consumption, the SN74AUP1G07DBVR offers high - speed operation. It has a typical propagation delay of just a few nanoseconds, allowing it to handle high - frequency signals efficiently. This high - speed performance makes it ideal for applications that require fast data processing and signal switching, such as high - speed communication interfaces and digital signal processing systems.

### 2.3 Small Package Size
The SN74AUP1G07DBVR comes in a small SOT - 553 package. This compact package not only saves board space but also enables the design of more miniaturized electronic products. The small form factor is particularly beneficial for applications where space is at a premium, such as in smart cards, hearing aids, and other small - sized consumer electronics.

### 2.4 Wide Operating Temperature Range
This product series can operate over a wide temperature range, typically from - 40°C to 125°C. This wide temperature tolerance makes it suitable for use in harsh environments, including automotive, industrial, and aerospace applications. It ensures reliable performance even in extreme temperature conditions, reducing the risk of system failures.

### 2.5 ESD Protection
The SN74AUP1G07DBVR is equipped with electrostatic discharge (ESD) protection. It can withstand ESD events up to a certain level, which helps to protect the device from damage caused by static electricity. This feature is crucial in real - world applications where ESD can occur during handling, assembly, or normal operation, improving the overall robustness of the system.

## 3. Functional Description

### 3.1 Logic Function
The SN74AUP1G07DBVR is a single - gate open - drain buffer. An open - drain output allows the device to be used in wired - AND configurations, where multiple outputs can be connected together to perform a logical AND operation. The buffer function amplifies the input signal and provides a high - impedance output, which can drive external loads effectively.

### 3.2 Input and Output Characteristics
The input of the SN74AUP1G07DBVR has a high impedance, which means it draws very little current from the driving source. This is beneficial for reducing the load on the previous stage of the circuit. The open - drain output can sink current but cannot source current on its own. It requires an external pull - up resistor to provide a high - level output voltage.

## 4. Applications

### 4.1 Consumer Electronics
In consumer electronics, the SN74AUP1G07DBVR can be used in devices such as smartphones, tablets, and smartwatches. It can be employed for signal buffering, level shifting, and interface isolation

Images for reference

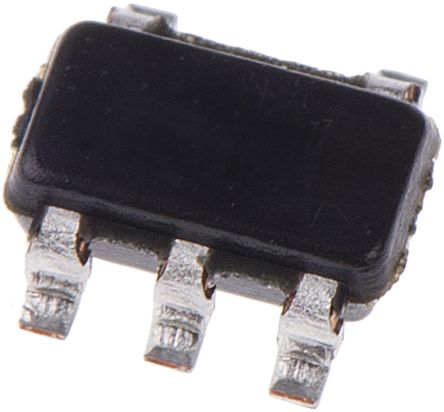

SOT-23-5, SC-74A
