SBR30A60CTFP-G
High-current Schottky barrier rectifiers in ITO-220AB package
Manufacturer： diodes
series introduction
# Introduction to the SBR30A60CTFP - G Product Series
## 1. Overview
The SBR30A60CTFP - G product series represents a cutting - edge advancement in semiconductor technology. Specifically designed for high - performance applications, these devices offer a unique combination of reliability, efficiency, and advanced features. This series is a type of Schottky Barrier Rectifier (SBR), which is widely used in various power electronics circuits due to its low forward voltage drop and fast switching characteristics.
## 2. Key Specifications
### Electrical Characteristics
- **Forward Current (IF)**: The SBR30A60CTFP - G is rated for a forward current of 30A. This high current - handling capacity makes it suitable for power - hungry applications such as power supplies, battery chargers, and motor control circuits.
- **Reverse Voltage (VR)**: With a maximum reverse voltage rating of 60V, these rectifiers can withstand significant reverse bias without breakdown. This feature ensures the safety and stability of the circuit under various operating conditions.
- **Forward Voltage Drop (VF)**: One of the most notable features of this series is its low forward voltage drop. Typically, at a forward current of 30A, the forward voltage drop is relatively small. This low VF results in reduced power dissipation and higher efficiency, which is crucial for energy - efficient designs.
### Thermal Characteristics
- **Thermal Resistance (RθJA)**: The thermal resistance from junction to ambient is carefully optimized in the SBR30A60CTFP - G series. A low RθJA value allows for efficient heat transfer from the semiconductor junction to the surrounding environment. This helps in maintaining the device's temperature within a safe operating range, even under high - power conditions.
- **Operating Temperature Range**: These rectifiers can operate within a wide temperature range, typically from - 55°C to + 150°C. This wide temperature tolerance makes them suitable for use in harsh environments, including automotive, industrial, and aerospace applications.
## 3. Package and Design
- **Package Type**: The SBR30A60CTFP - G comes in a specific package that is designed for easy mounting and efficient heat dissipation. The package is also compact, which is beneficial for space - constrained applications.
- **Pin Configuration**: The pin configuration is carefully designed to ensure proper electrical connections and minimize electromagnetic interference (EMI). The well - defined pin layout simplifies the circuit design process and reduces the chances of wiring errors.
## 4. Applications
### Power Supplies
In switch - mode power supplies (SMPS), the SBR30A60CTFP - G can be used as output rectifiers. Its low forward voltage drop reduces power losses, improving the overall efficiency of the power supply. This leads to lower energy consumption and less heat generation, which is especially important in high - power SMPS used in servers, data centers, and industrial equipment.
### Battery Chargers
For battery charging applications, the high current - handling capacity of the SBR30A60CTFP - G allows for fast charging of batteries. The low VF also helps in minimizing the heat generated during the charging process, which can extend the battery's lifespan. It can be used in chargers for various types of batteries, including lithium - ion, lead - acid, and nickel - metal hydride batteries.
### Motor Control Circuits
In motor control circuits, these rectifiers can be used for commutation and power conversion. The fast switching characteristics of the SBR30A60CTFP - G enable smooth and efficient operation of the motor. They can handle the high currents associated with motor starting and running, ensuring reliable performance of the motor control system.
## 5. Advantages
- **High Efficiency
Images for reference

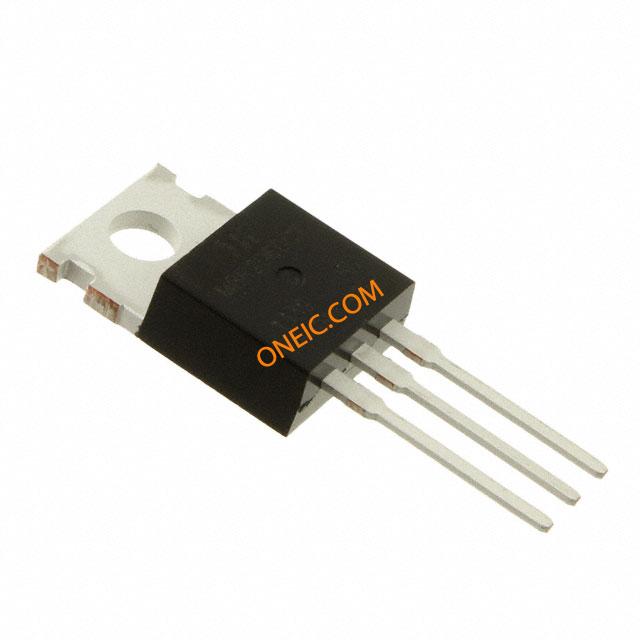

TO-220AB-PKG SERIES
