S29GL064N90TFI02

64MB NOR flash memory ICs in 56-pin TSOP for parallel data storage

Manufacturer: ['cypress', 'cypress-semiconductor', 'spansion']

series introduction

# Introduction to the S29GL064N90TFI02 Product Series

## 1. Overview
The S29GL064N90TFI02 is a high - performance flash memory product series that offers reliable and efficient data storage solutions for a wide range of applications. Developed with advanced semiconductor technology, this series is designed to meet the growing demands of modern electronic devices in terms of storage capacity, speed, and durability.

## 2. Key Features

### 2.1 Storage Capacity
The S29GL064N90TFI02 provides a generous storage capacity of 64 megabits (8 megabytes). This makes it suitable for applications that require the storage of large amounts of data, such as firmware storage in embedded systems, data logging in industrial equipment, and multimedia content storage in consumer electronics.

### 2.2 High - Speed Performance
With a fast access time and high - speed data transfer rates, this flash memory series enables quick read and write operations. The 90 - nanosecond access time ensures that data can be retrieved rapidly, reducing system latency and improving overall performance. This high - speed performance is crucial for applications where real - time data processing is required, such as in automotive control systems and networking equipment.

### 2.3 Low Power Consumption
In today's energy - conscious world, the S29GL064N90TFI02 is designed to consume minimal power. This is achieved through advanced power management techniques and low - voltage operation. The low power consumption not only extends the battery life of portable devices but also reduces the overall energy costs in larger systems, making it an environmentally friendly and cost - effective choice.

### 2.4 Reliability and Durability
The series is built with high - quality materials and advanced manufacturing processes, ensuring high reliability and durability. It has a high endurance rating, capable of withstanding a large number of program/erase cycles. This makes it suitable for applications where data integrity and long - term reliability are critical, such as in aerospace and medical devices.

### 2.5 Compatibility
The S29GL064N90TFI02 is designed to be highly compatible with a wide range of microcontrollers and other system components. It uses a standard interface, which simplifies the integration process into existing systems. This compatibility allows for easy replacement or upgrade of existing memory components without significant changes to the system design.

## 3. Package and Pin Configuration
The S29GL064N90TFI02 is available in a compact and industry - standard package. The package design ensures easy handling and mounting on printed circuit boards (PCBs). The pin configuration is carefully designed to provide clear and straightforward connections to other system components, reducing the complexity of the PCB layout and minimizing the risk of signal interference.

## 4. Applications

### 4.1 Embedded Systems
In embedded systems, the S29GL064N90TFI02 can be used to store the system firmware, boot code, and application software. Its high - speed performance and large storage capacity ensure that the embedded system can start up quickly and run smoothly. Examples of embedded systems that can benefit from this product series include industrial controllers, smart meters, and home automation devices.

### 4.2 Consumer Electronics
Consumer electronics such as digital cameras, MP3 players, and portable gaming devices require reliable and high - capacity storage. The S29GL064N90TFI02 can be used to store photos, music, and game data. Its low power consumption also helps to extend the battery life of these portable devices, enhancing the user experience.

### 4.3 Automotive Electronics
Automotive applications demand high - reliability and high - performance memory solutions. The

Images for reference

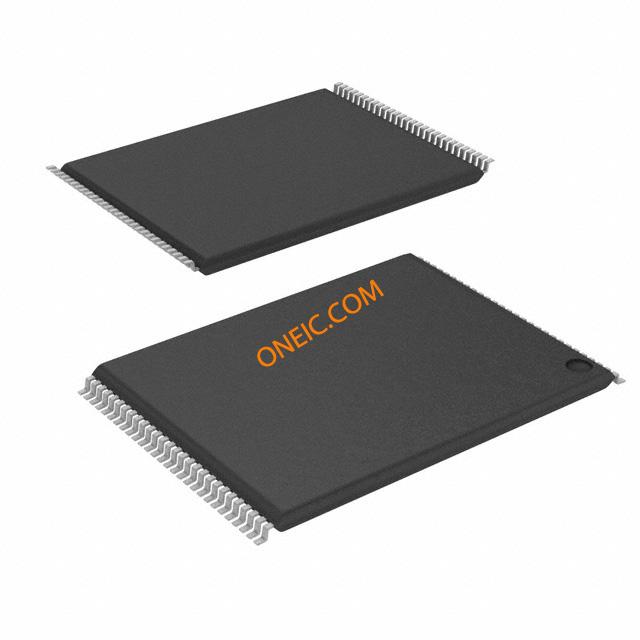

56-TSOP
