RNCP0805FTD10R0
Precision thin film chip resistors for compact electronic circuits
Manufacturer： ['stackpole', 'seiko']
series introduction
# RNCP0805FTD10R0 Product Series Introduction
## 1. Overview
The RNCP0805FTD10R0 belongs to a high - performance resistor product series. Resistors are fundamental passive electronic components that play a crucial role in a wide range of electronic circuits. This particular series is designed to meet the demanding requirements of modern electronic applications, offering reliable and precise resistance values in a compact form factor.
## 2. Product Specifications
### Physical Dimensions
- The "0805" in the model number refers to the industry - standard package size. In the imperial system, it measures 0.08 inches by 0.05 inches, which is approximately 2.032 mm by 1.27 mm. This relatively small size makes it suitable for use in densely populated printed circuit boards (PCBs), allowing for high - density circuit designs.
- The resistor has a low profile, which is beneficial for applications where space is limited, such as in mobile devices, wearables, and other miniaturized electronics.
### Resistance Value
- The "10R0" indicates a resistance value of 10 ohms. This specific resistance value is commonly used in various electronic circuits for functions such as current limiting, voltage division, and impedance matching. The resistance value is highly accurate, with a tight tolerance that ensures consistent performance across different units.
### Tolerance
The series typically offers a tight tolerance, often within ±1% or even better. This high level of precision is essential in applications where accurate resistance values are critical for proper circuit operation. For example, in precision measurement circuits or audio amplifiers, a small deviation in resistance can lead to significant errors or degradation in performance.
### Power Rating
The RNCP0805FTD10R0 is designed to handle a certain amount of power. The power rating is carefully selected based on the package size and the materials used. It can typically handle a power dissipation of around 0.125 watts. This power rating determines the maximum amount of power the resistor can safely dissipate without overheating, which is crucial for maintaining long - term reliability.
### Temperature Coefficient
The temperature coefficient of resistance (TCR) is an important parameter for resistors. This series usually has a low TCR, which means that the resistance value changes minimally with temperature variations. A low TCR ensures stable performance over a wide temperature range, making the resistor suitable for use in harsh environments where temperature fluctuations are common, such as automotive electronics and industrial control systems.
## 3. Electrical Performance
### DC Resistance
The DC resistance of the RNCP0805FTD10R0 is precisely controlled to the specified 10 - ohm value. This accurate resistance value allows for predictable current flow and voltage drops in DC circuits, enabling designers to accurately calculate and design their circuits.
### AC Performance
In AC circuits, the resistor also exhibits excellent performance. It has a low parasitic capacitance and inductance, which minimizes signal distortion and interference. This makes it suitable for use in high - frequency applications, such as radio frequency (RF) circuits and high - speed data transmission lines.
### Noise Performance
The resistor has low noise characteristics, which is important in applications where signal integrity is crucial. Low noise ensures that the resistor does not introduce unwanted electrical noise into the circuit, which could degrade the performance of sensitive components such as amplifiers and sensors.
## 4. Construction and Materials
### Resistive Element
The resistive element of the RNCP0805FTD10R0 is made of high - quality materials, such as metal film or thick film. Metal film resistors offer better precision, lower noise, and better temperature stability compared to thick film resistors. The choice of material depends on the specific requirements of the application
Images for reference

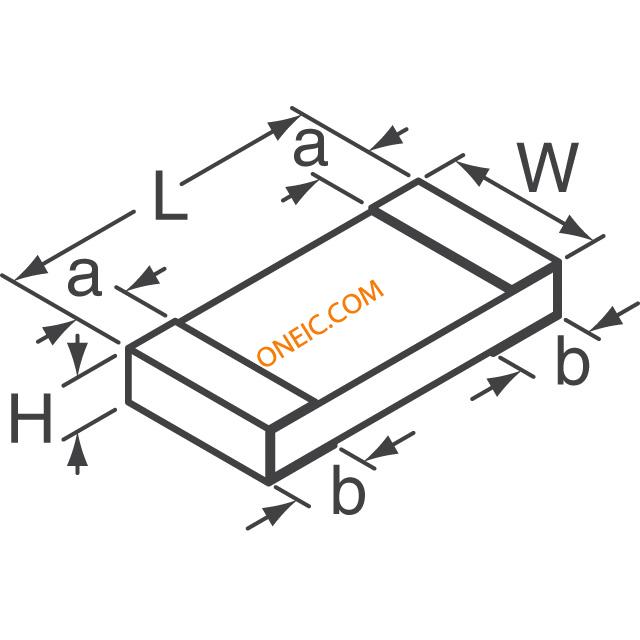

0805 Pkg
RNCP Series
